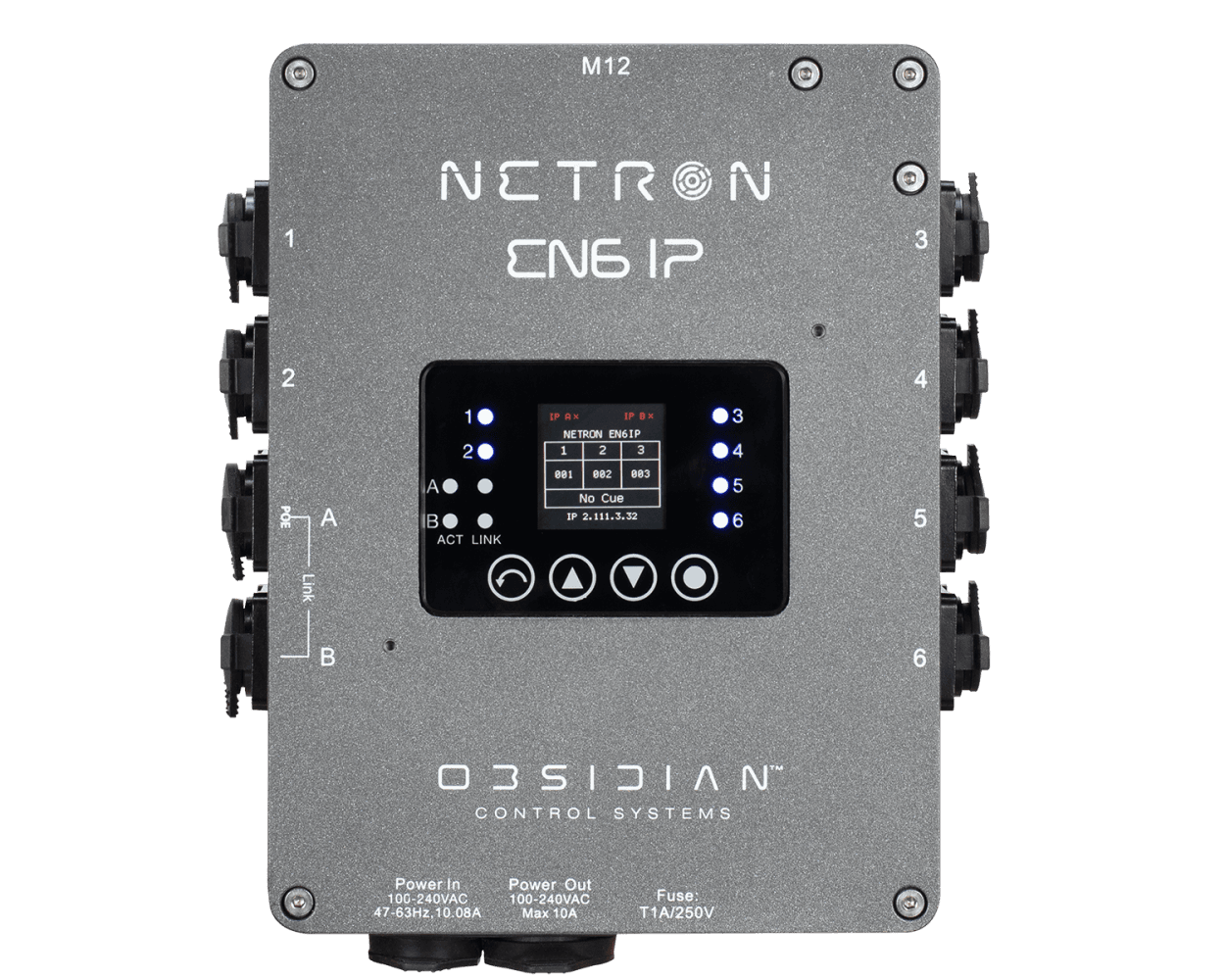

NETRON EN6 IP

Categories: SKU: EL-NIP013

Key Features

The Netron EN6 IP is a powerful Ethernet to DMX gateway with six RDM compatible ports in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.

Ω   IP66 Ethernet to DMX Gateway
Ω   RDM, Artnet and sACN support
Ω   Factory and user presets for plug and play setups
Ω   Line Voltage or POE powered
Ω   1.8” OLED Display and waterproof touch buttons
Ω   99 Internal cues with fade and delay time
Ω   Remote configuration via internal webpage
Ω   Powder-coated aluminum chassis
Ω   Unlocks ONYX NOVA 4-Universe License

MOUNTING
Ω   Standalone
Ω   Truss-mount (M10 or M12)
Ω   Wall-mount

CONNECTIONS
Ω   Sides

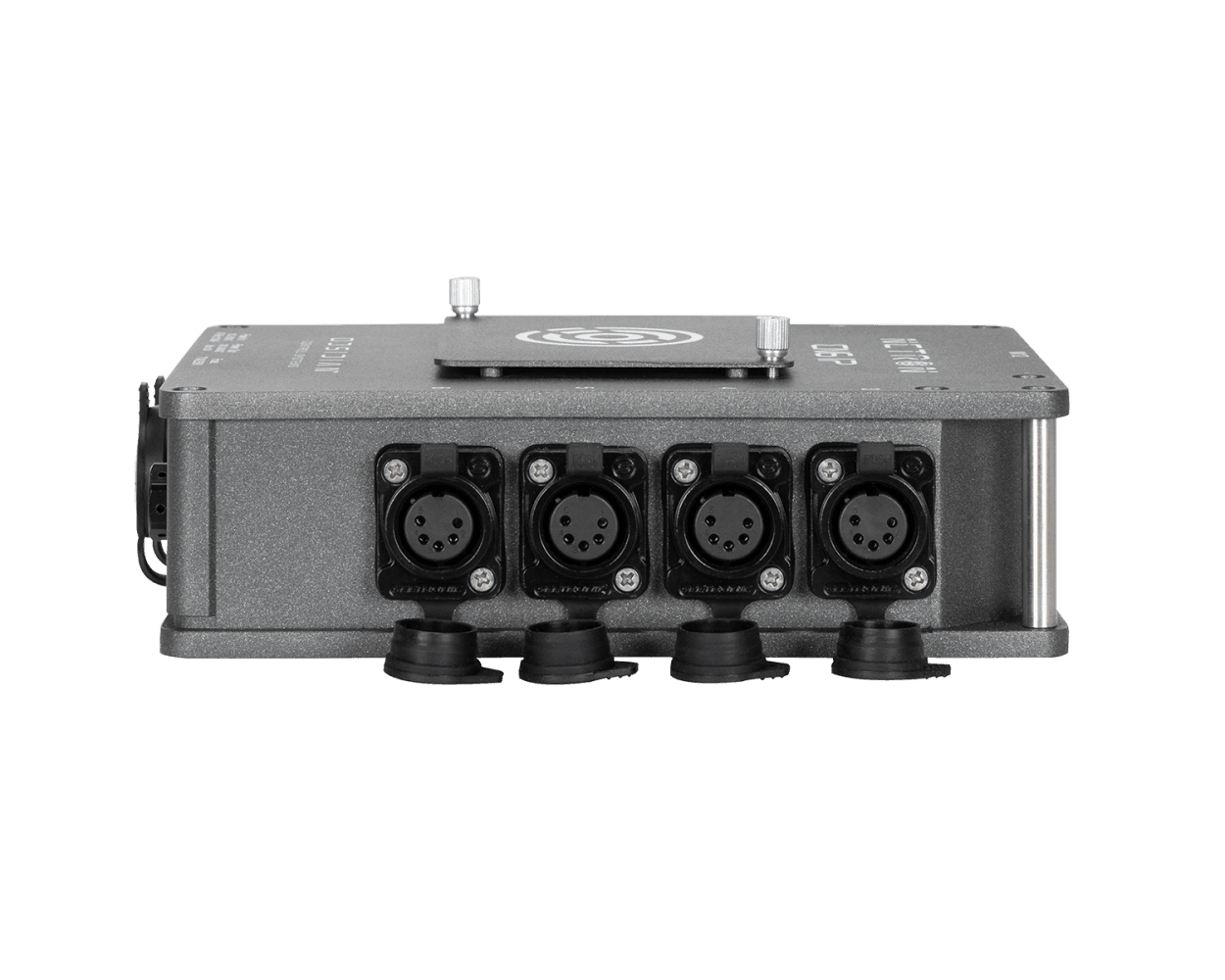

   Ω    (6) 5pin IP66 DMX/RDM optically isolated ports
   Ω    Ports are bidirectional for DMX In and Output

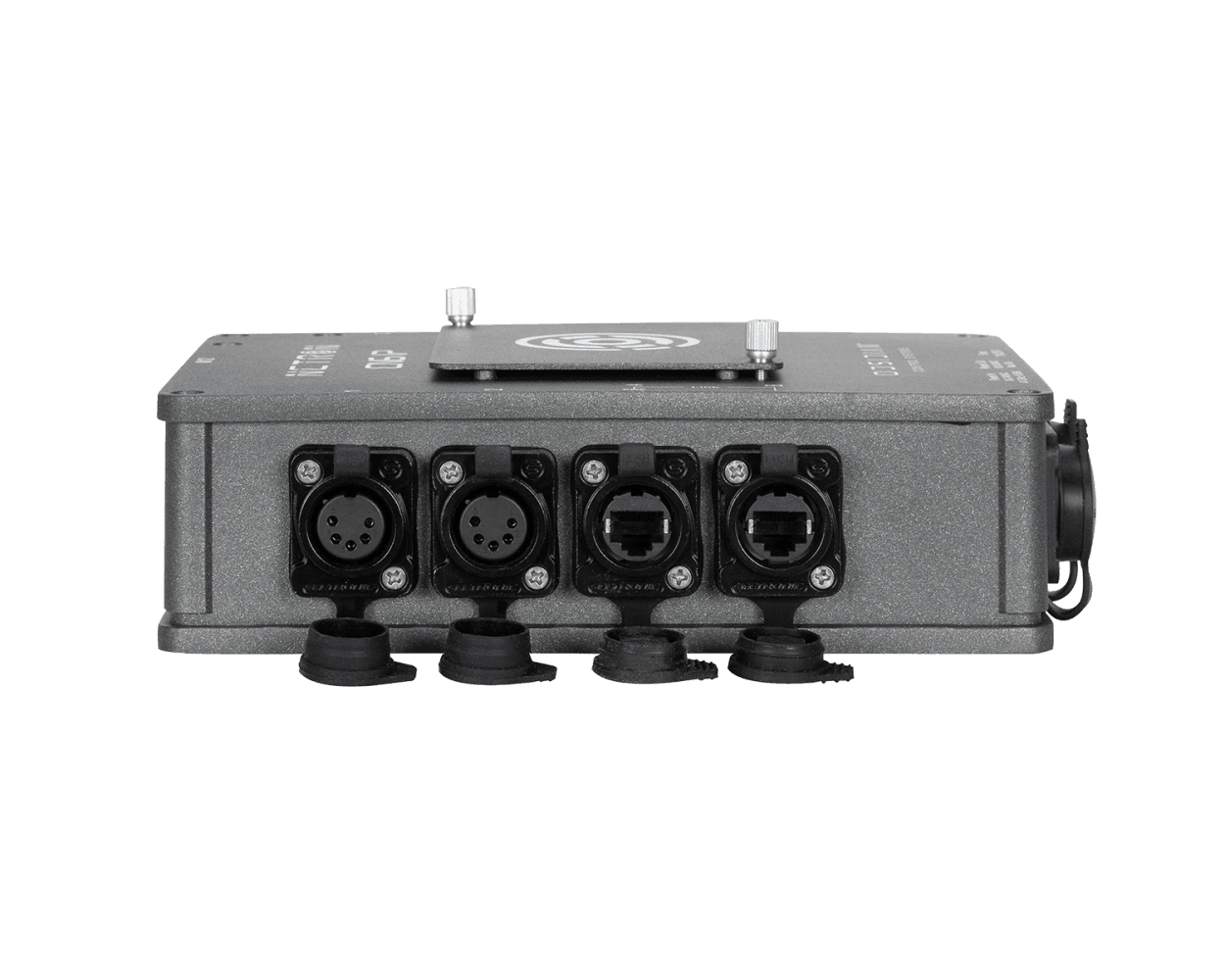

   Ω    (2) Locking IP66 RJ45 Ethernet network connections (1x POE)

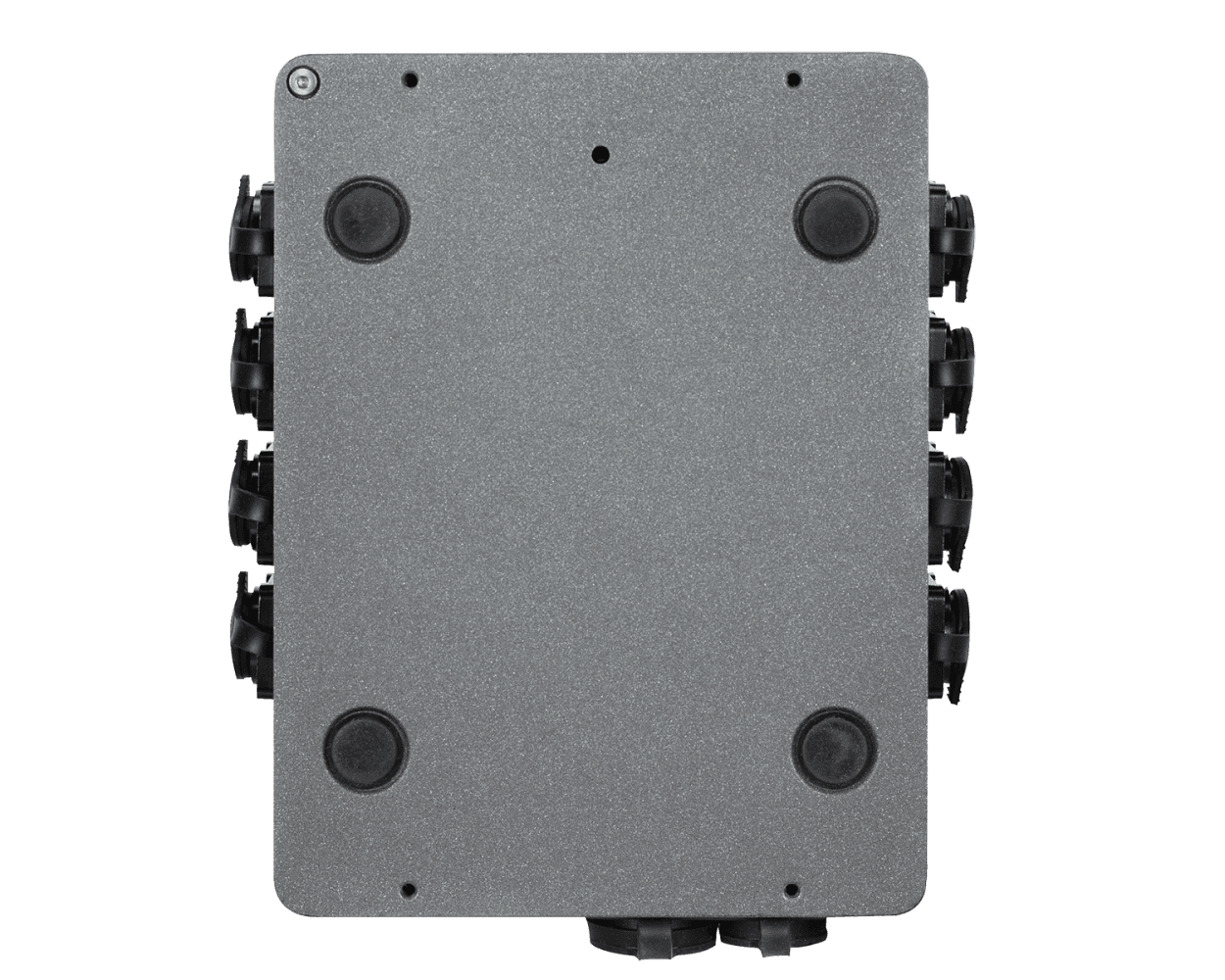

Ω   Bottom

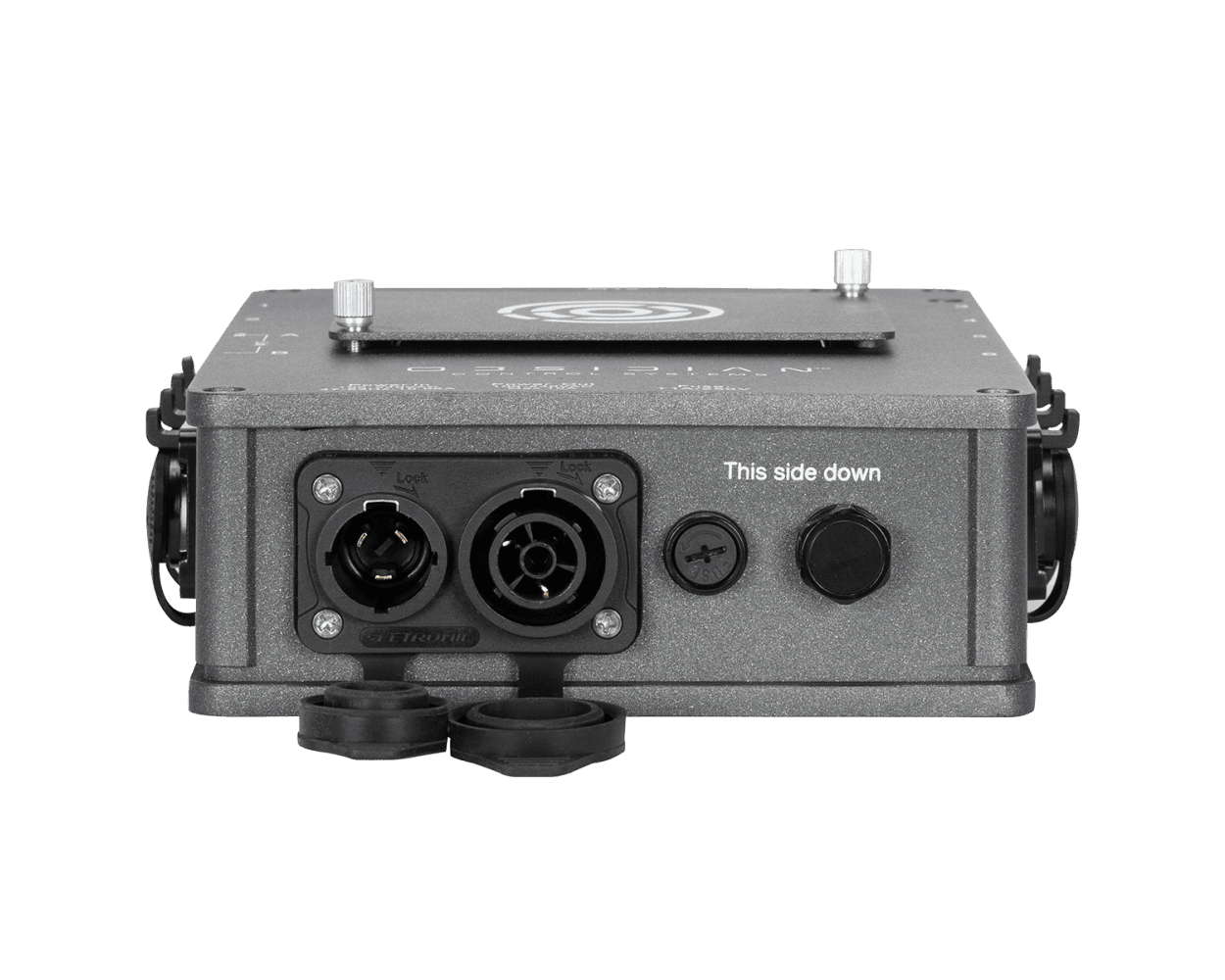

   Ω    Locking IP66 Power In/Thru

SPECIFICATIONS
Ω   Length: 204 mm
Ω   Width: 179 mm
Ω   Height: 61 mm
Ω   Weight: 2 kg
Ω   100-240V nominal, 50/60 Hz
Ω   POE 802.3af
Ω   Power Consumption: 6W

INCLUDED ITEMS
Ω   1.5m IP66 locking power cable
Ω   (2) Wall Mount brackets
Ω   M10 to M12 adapter

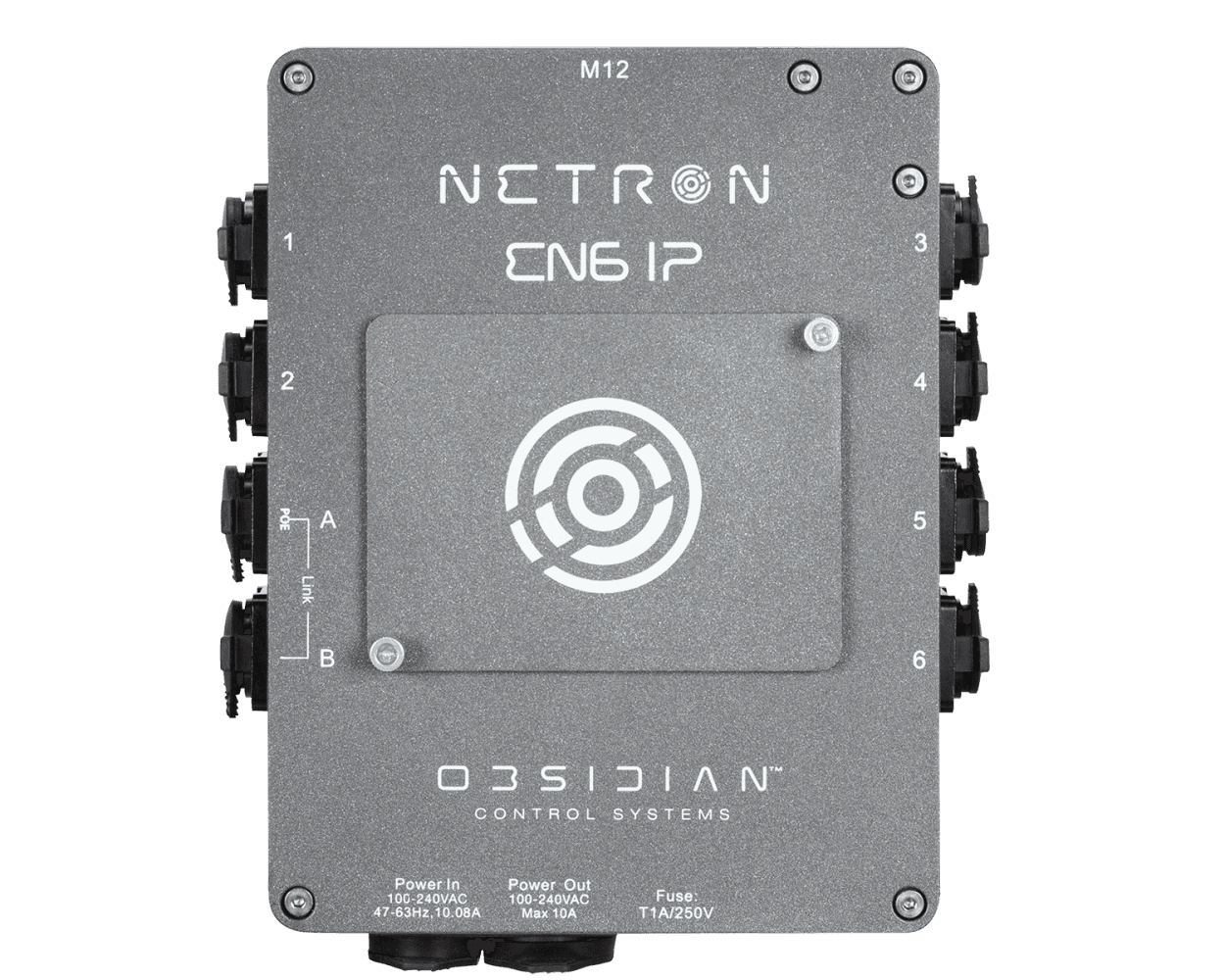

Ω   Metal display protection cover

Installation Guide

Download

Netron-EN6-IP-Installation-Guide.pdf

Video: Unboxing the EN6 IP

Download

Chalky unboxes and talks about the highlights of the new Netron EN6 IP from Obsidian Control System!

NETRON Catalog 2026

Download

Obsidian-Netron-Catalog-2026.pdf
