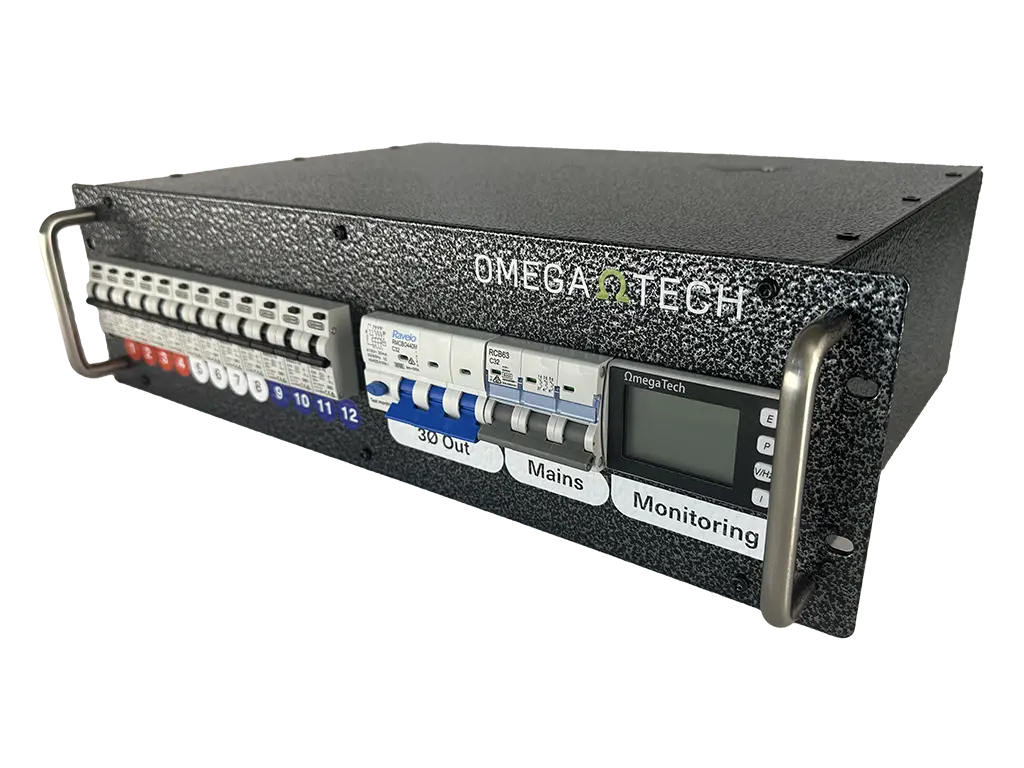

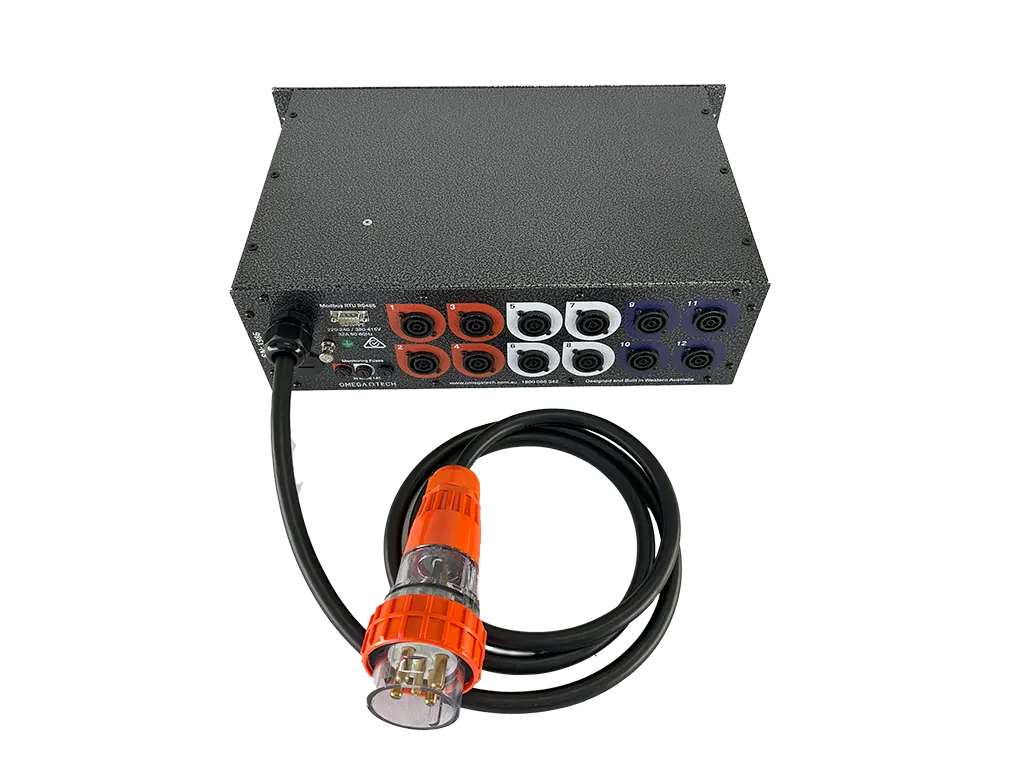

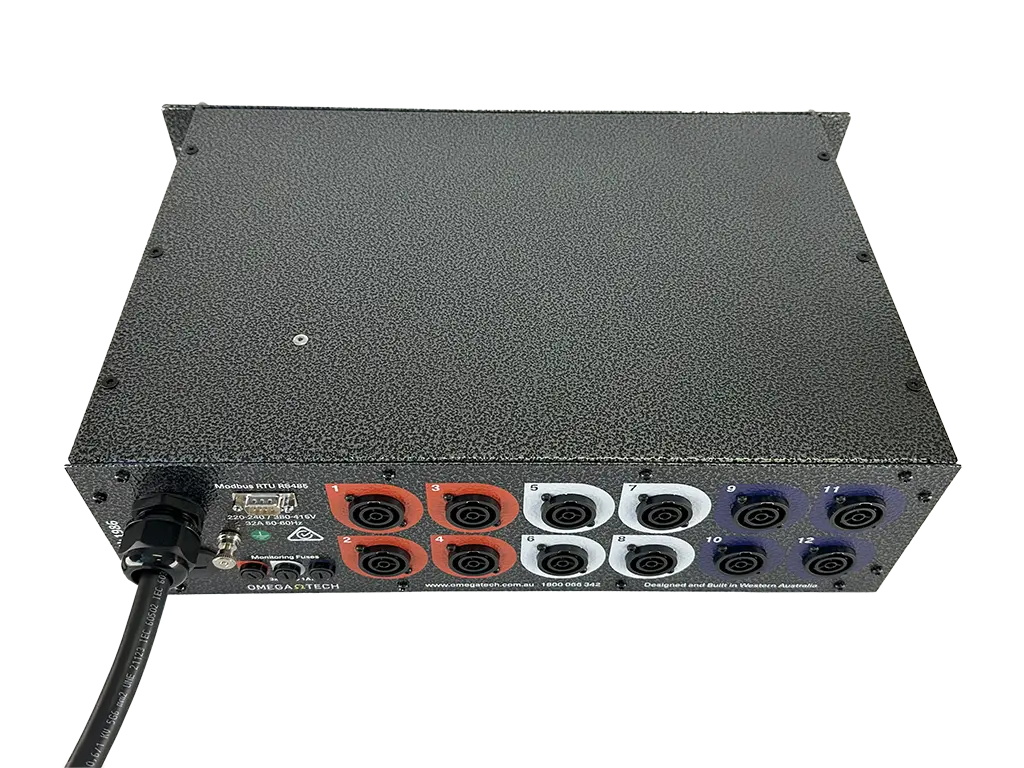

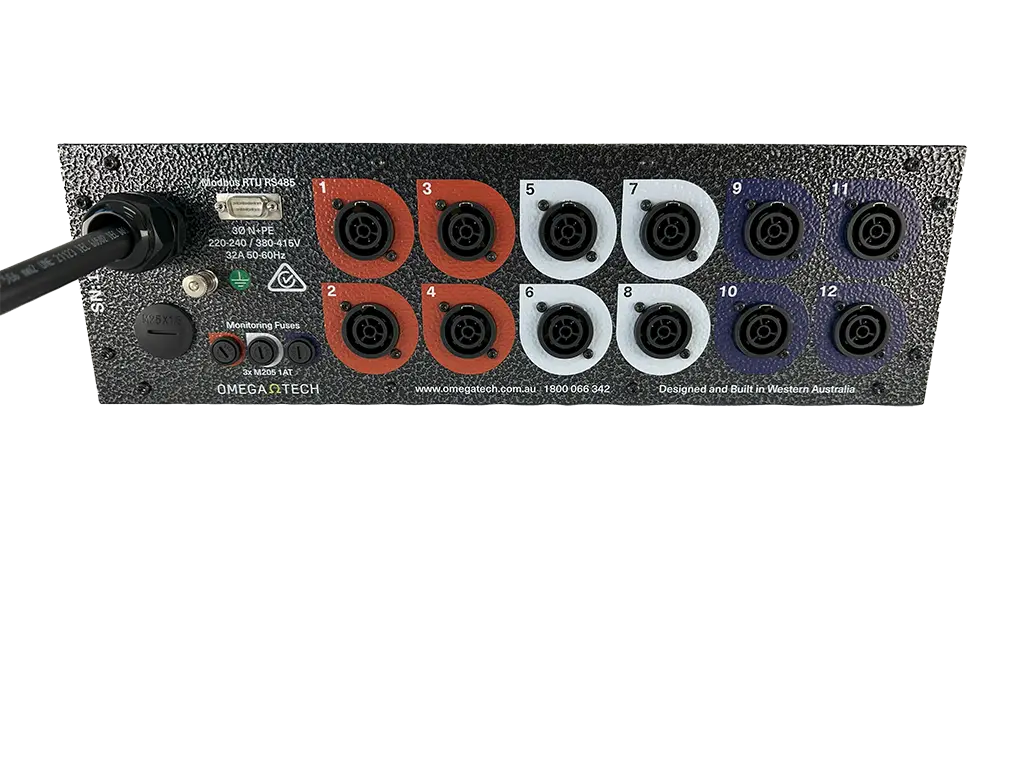

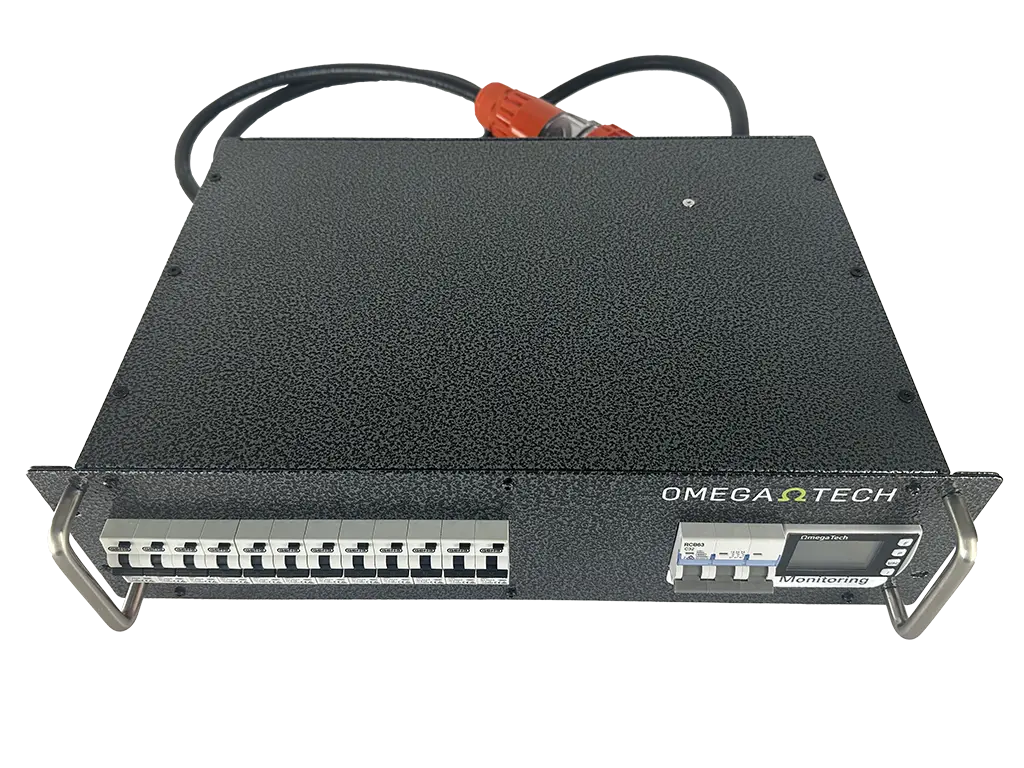

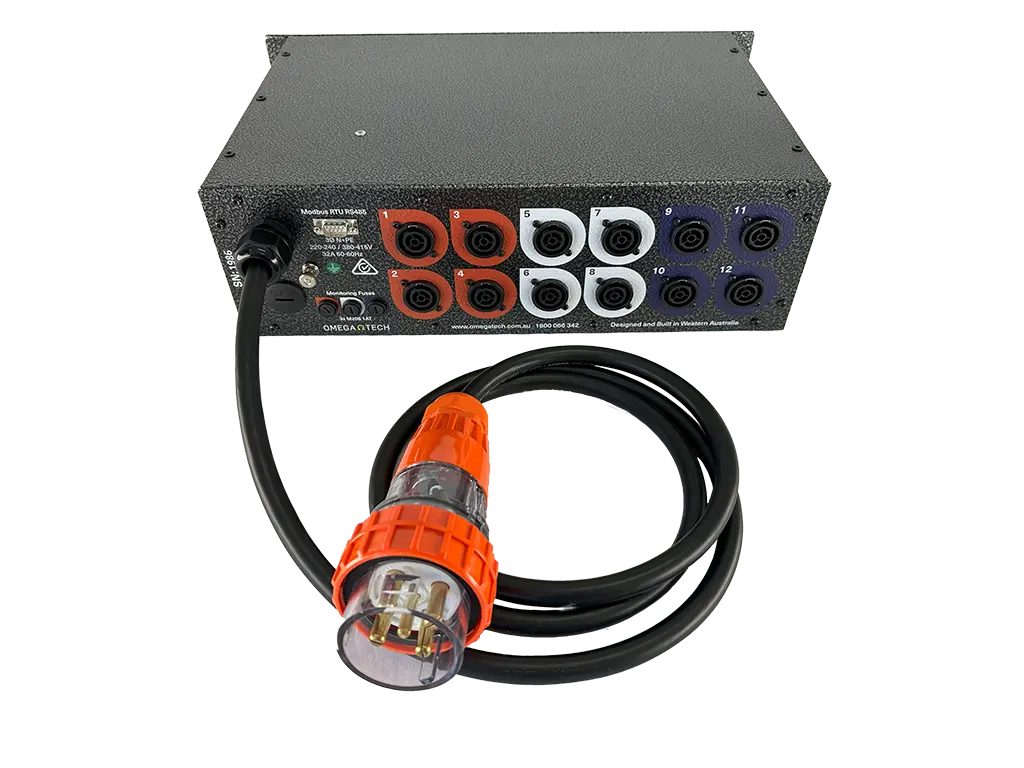

The OmegaTech Power Distribution Unit (PDU) is designed for fixed or mobile applications where three phase to single phase socket outlet power distribution is required. OmegaTech offers a variety of custom configurations to suit individual requirements.

ELECTRICAL

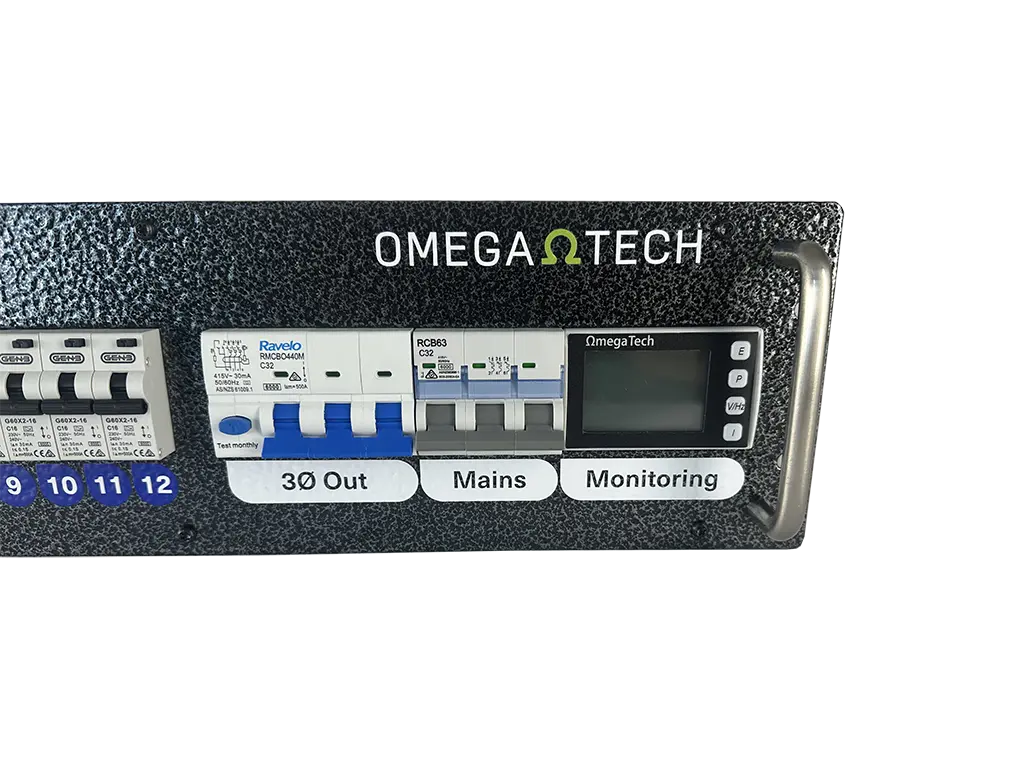

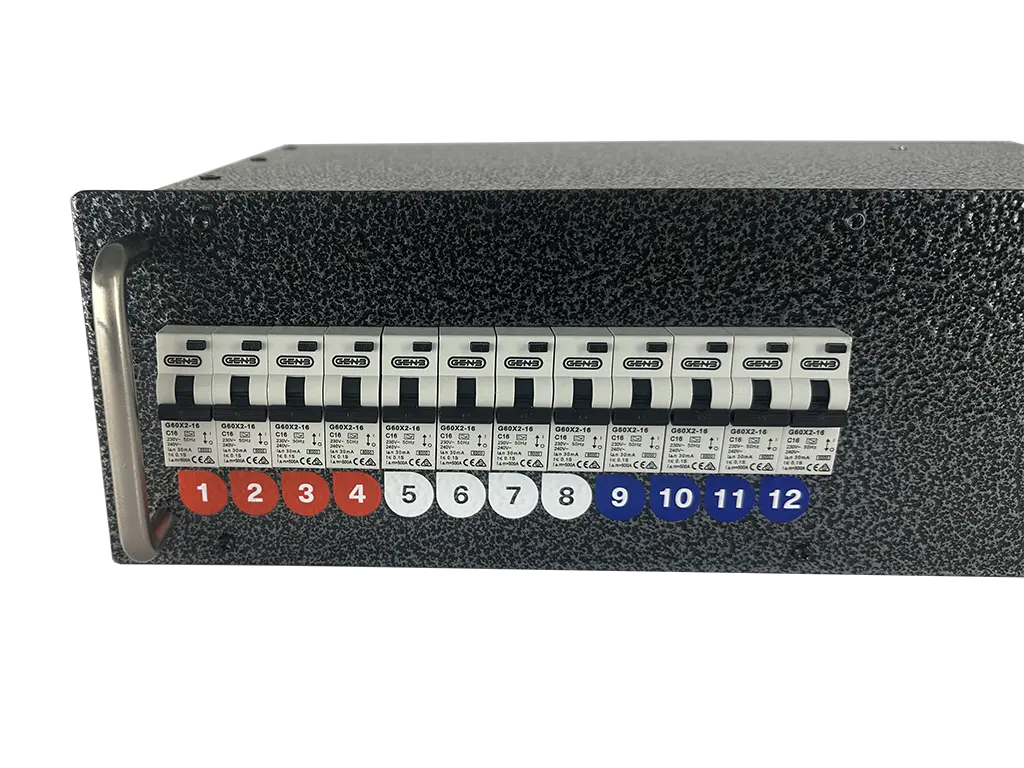

All units feature individual Residual Current Breaker with Over Current protection (RCBO) per circuit as well as a mains isolating switch. An available option is a 3 phase loop out tail with either RCBO or MCB which is a first in a 19” rack distribution format. All units include comprehensive input power monitoring display, which turns on prior to main breaker, meaning any untoward power situations can be identified before potential damage to equipment is caused.

MECHANICAL

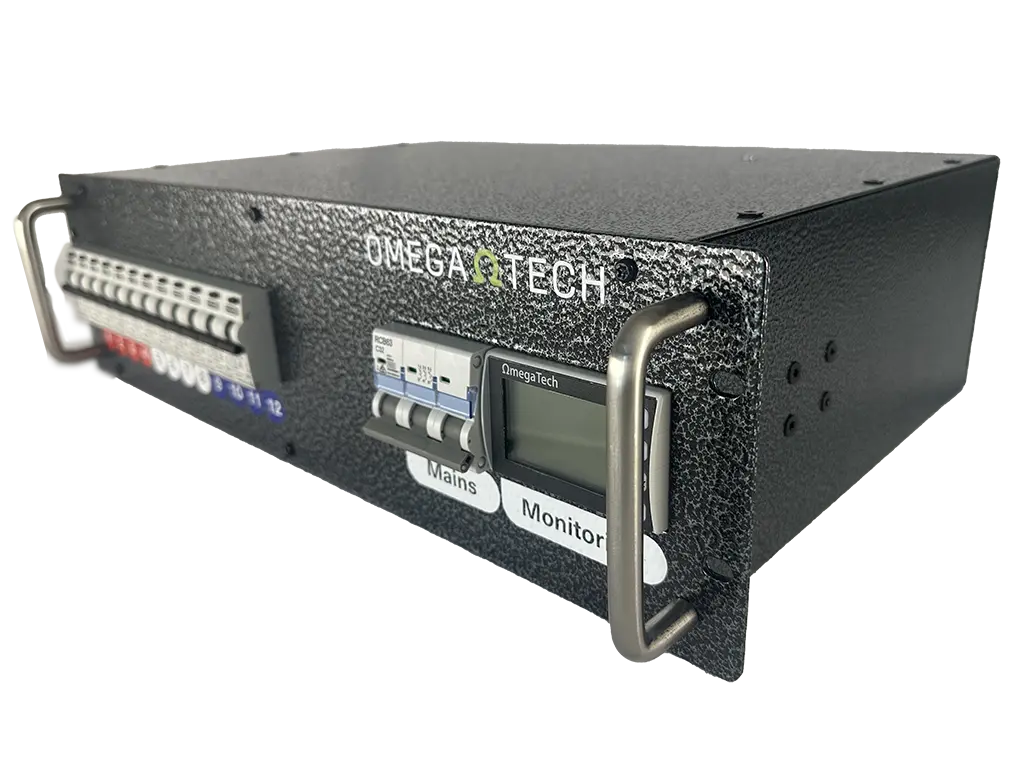

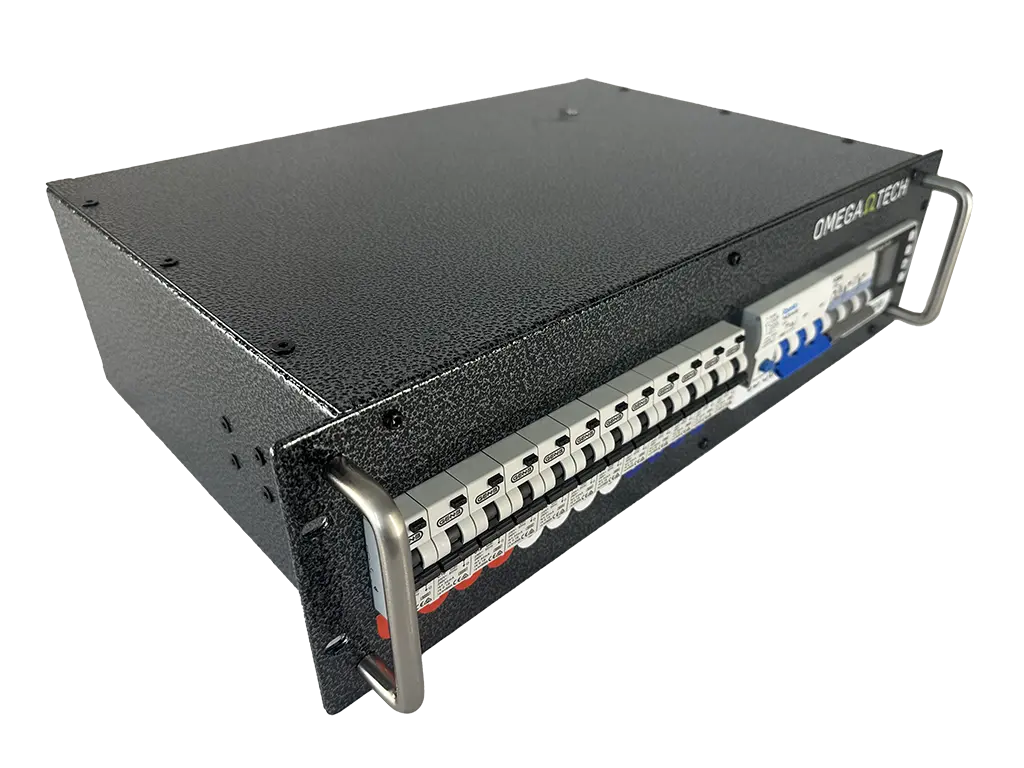

The Power Distribution Unit is designed to rack mount in a standard 19” equipment rack. Dimensions are 480mm (19”) wide x 300mm deep x 133mm high (3RU). The PDU requires no external ventilation, which eliminates fan noise.
The chassis is constructed of 1.2 mm steel and fascias from 2.0mm steel. Metal surfaces are zinc treated and finished in a signature, hard wearing, off black textured hammertone which resists scratches or marks. Full colour labeling (including the option of client logo) is achieved through indelibly etched UV-cured ink.

COMPLIANCE
All OmegaTech products are built to comply with Australian Regulations including:
AS/NZS 3002:2021 — Electrical Installations — Shows and carnivals
AS/NZS 4249:2022 — Electrical Installations — Film, video and television sites
AS/NZS 4417:2020 — RCM/EESS Responsible Supplier in the Electrical Equipment Safety System
AS/NZS 61439:2016 — Australian Standards for low-voltage switchgear and control gear assemblies
