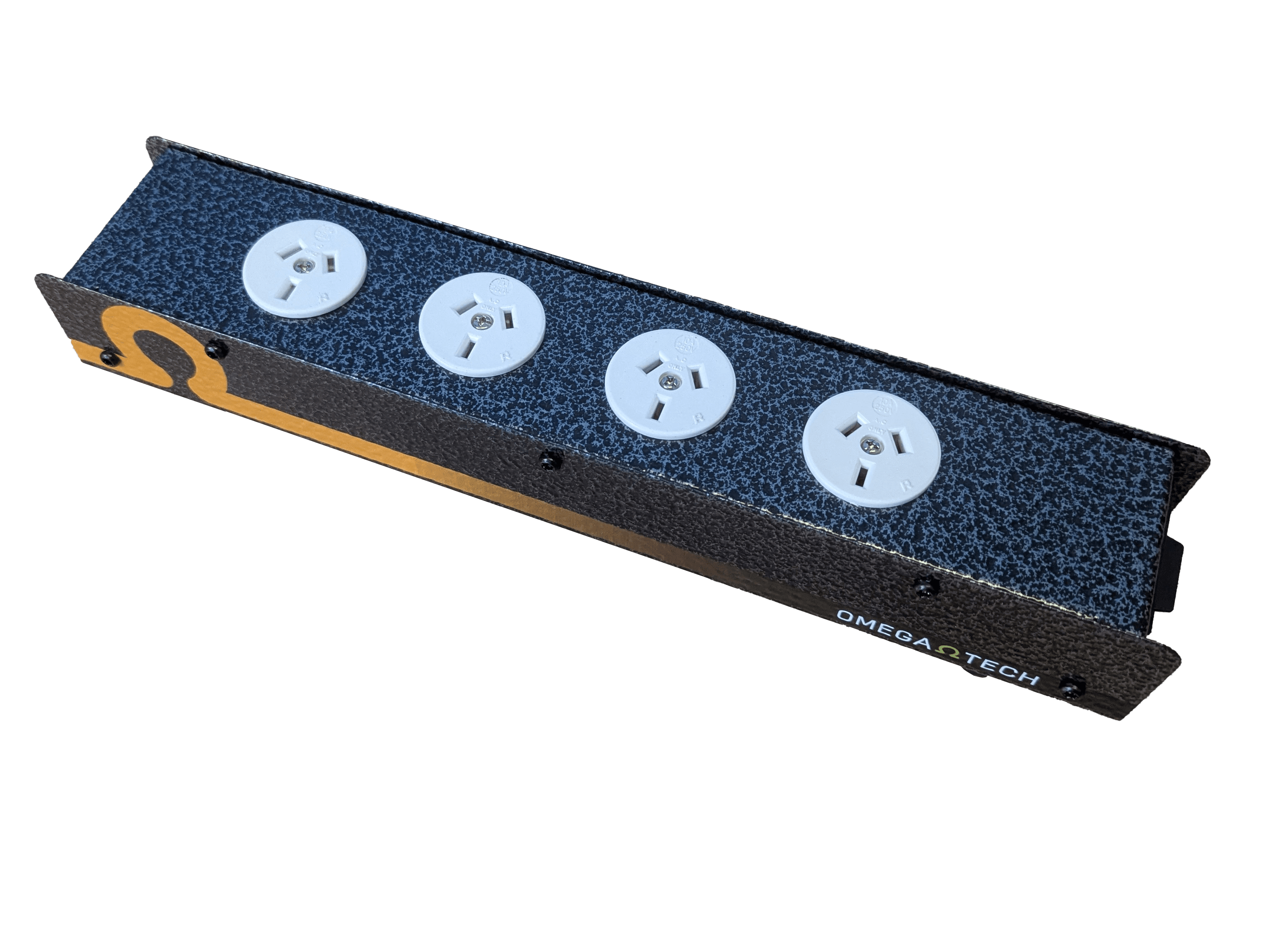

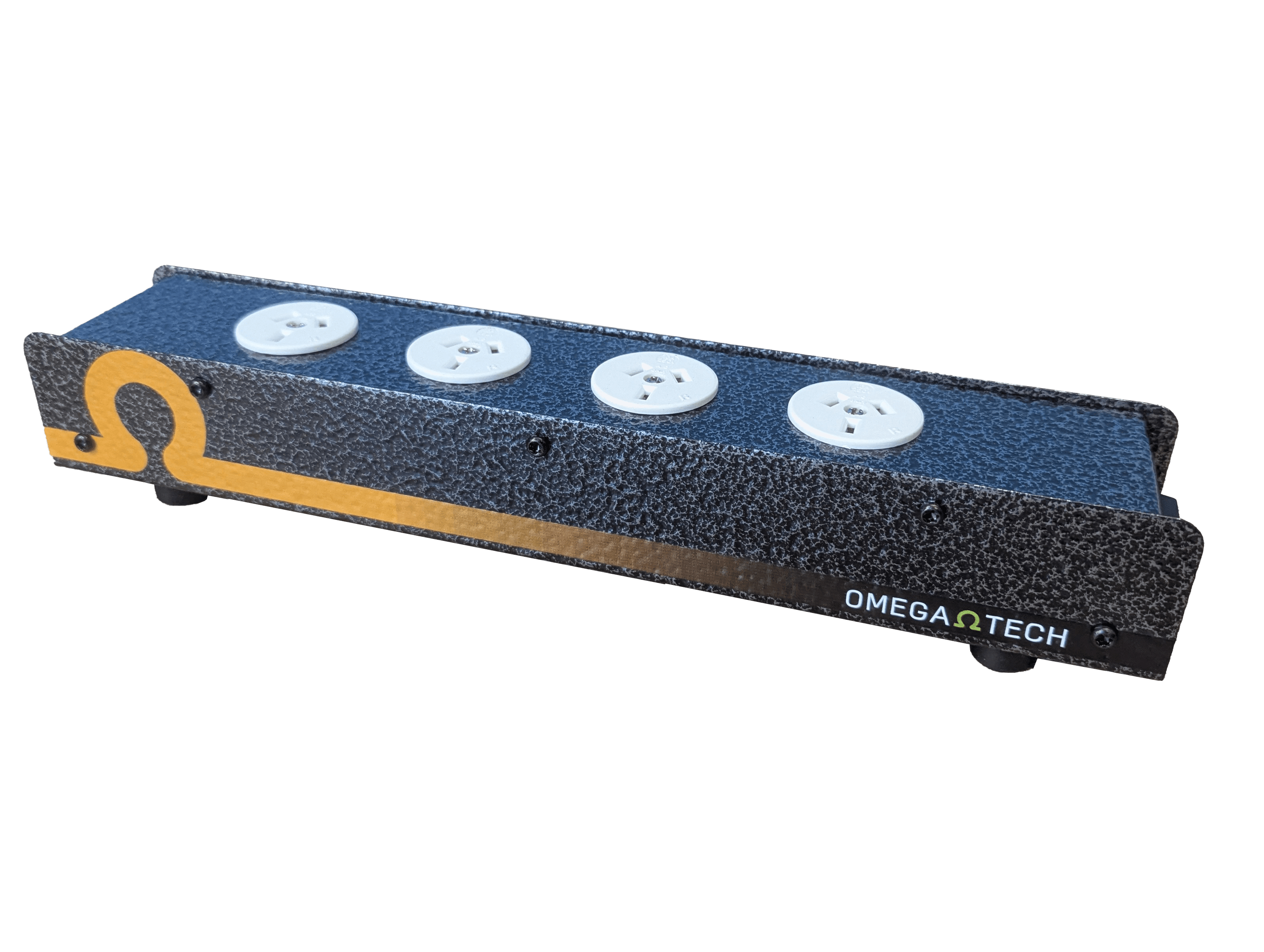

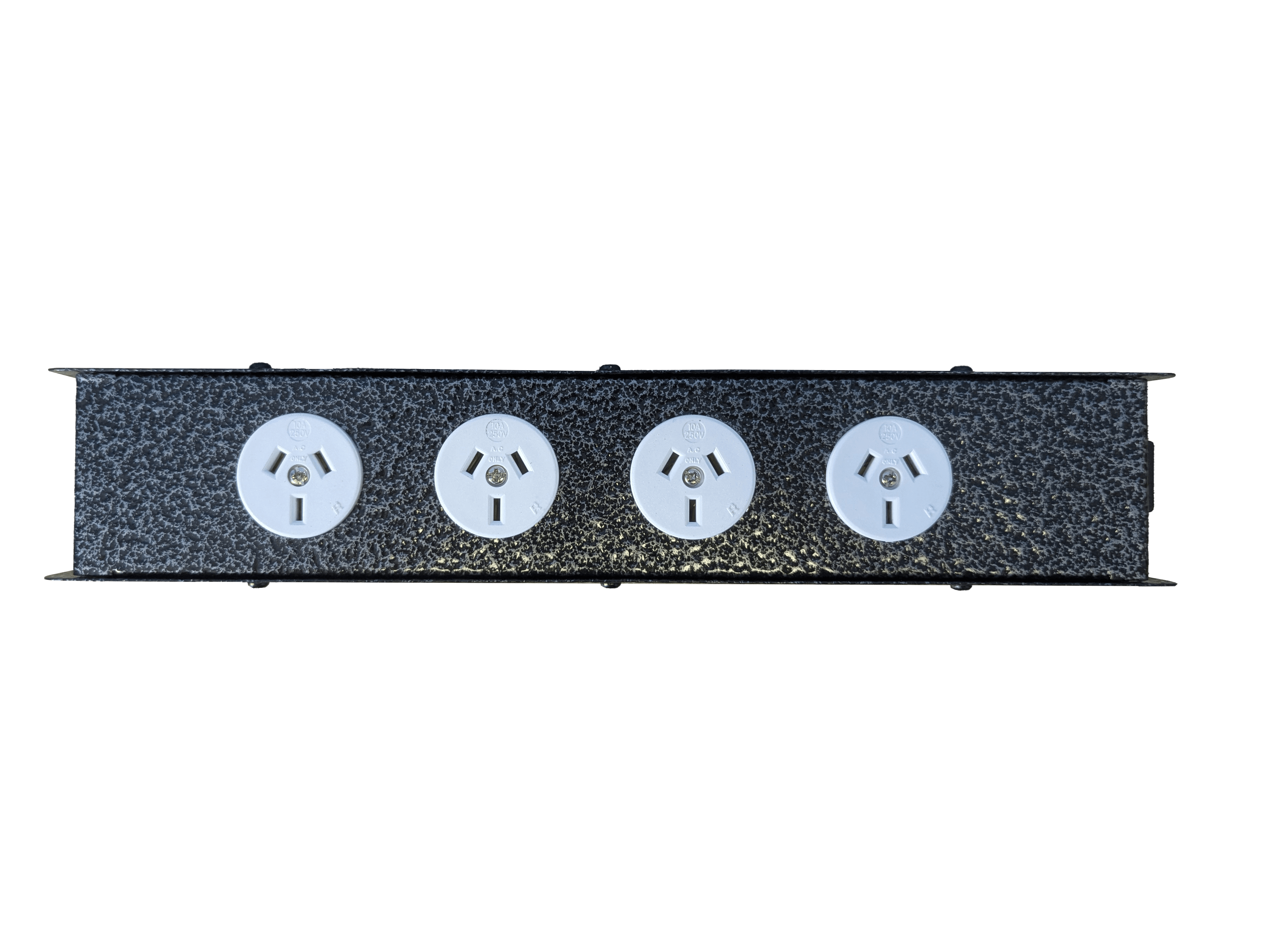

The OmegaTech Stage Box Strip (SBS) is a “dead-head” design of the highly successful powered Stage Box. Unlike their big brother; these units have a 1-in / 4-out with no loop through connector. Paired with our new 6 channel PDU’s these units offer the ideal balance between purpose, redundancy and size. 4 configurations available with units kept in stock ready to ship.

ELECTRICAL

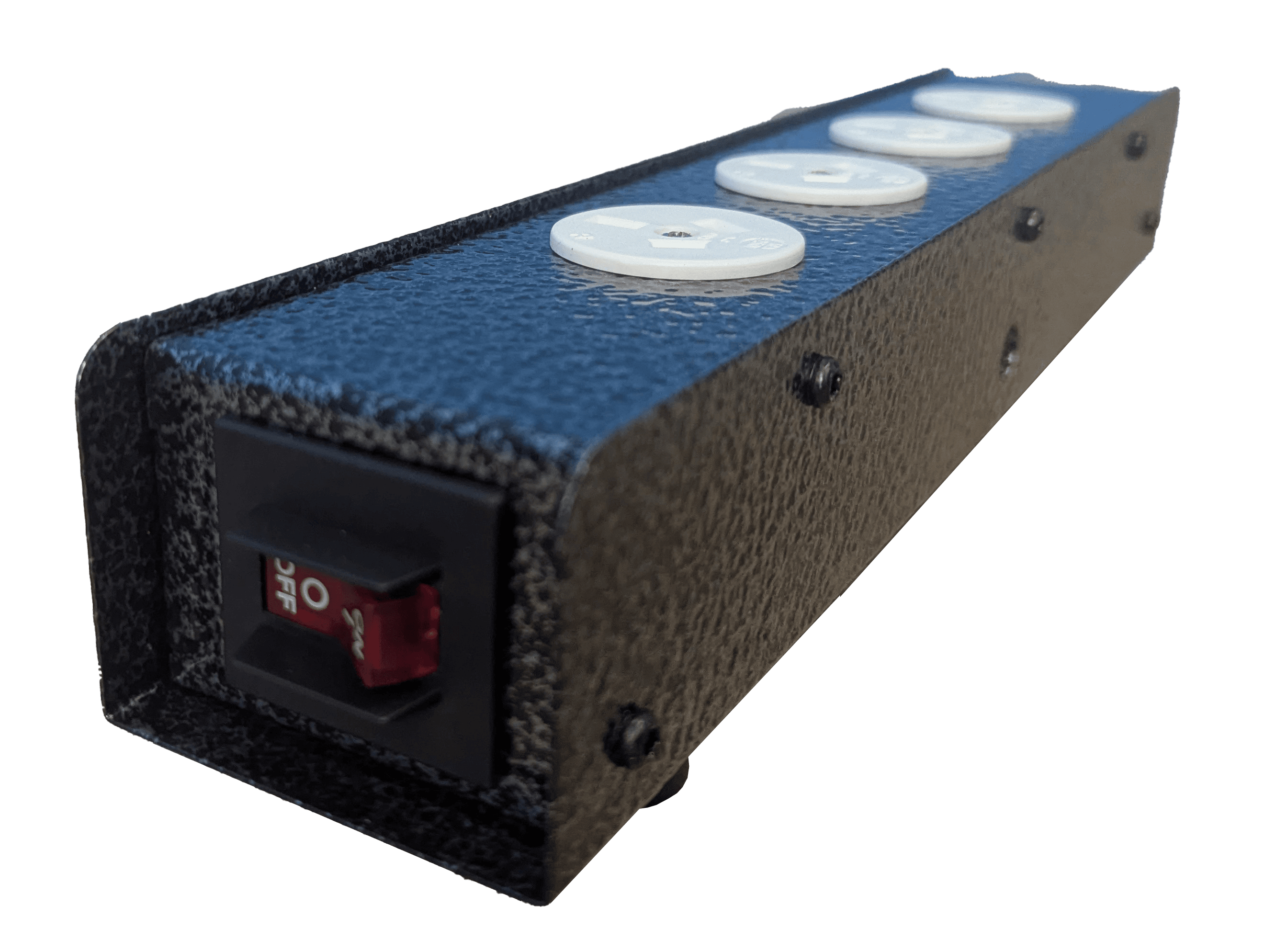

All units feature a single Hydraulic Magnetic Double Pole Circuit breaker which feature 100% rating at all temperature conditions unlike traditional units. These are fitted with an integrated Red Neon and Finger Guard.

MECHANICAL

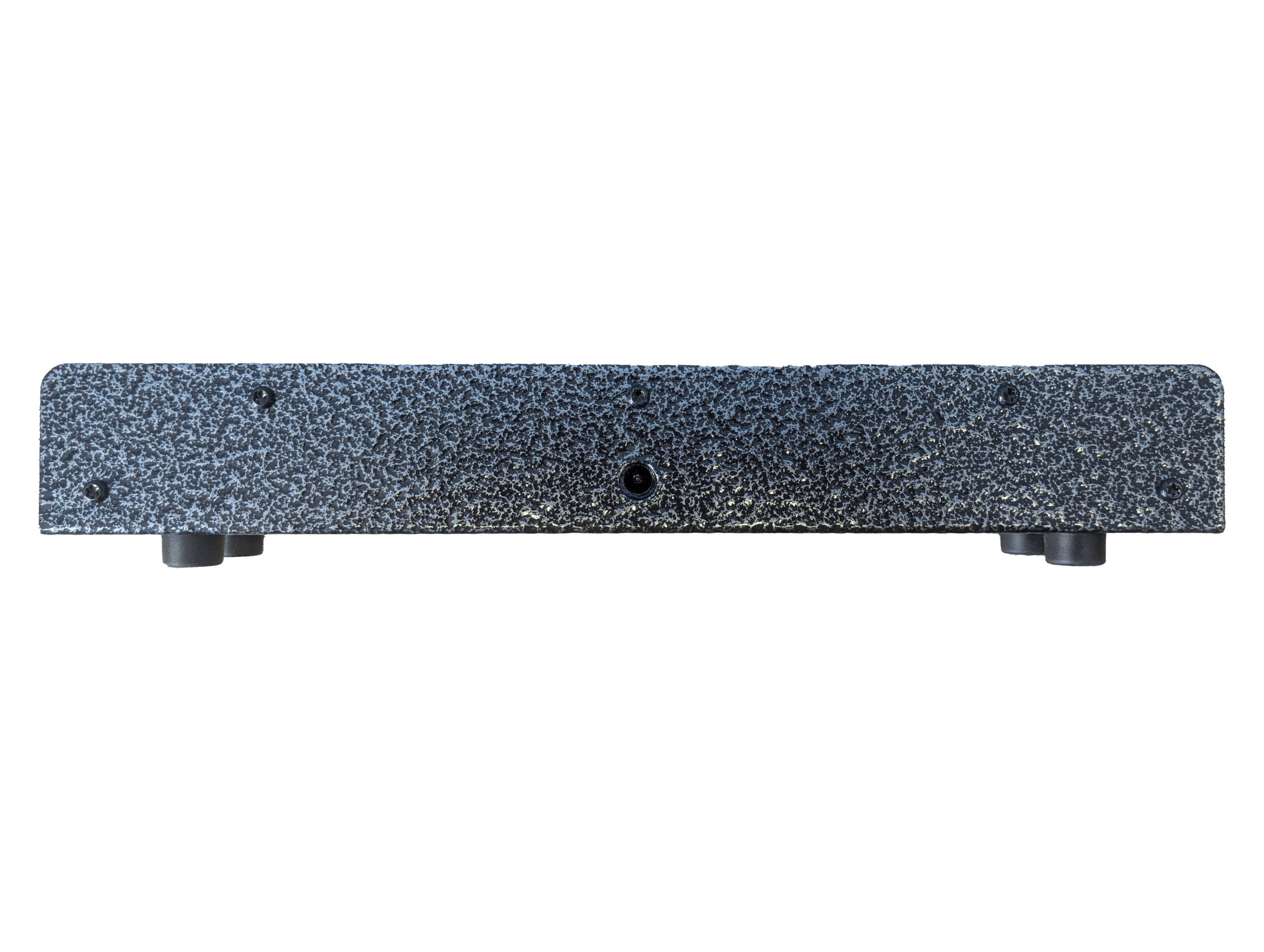

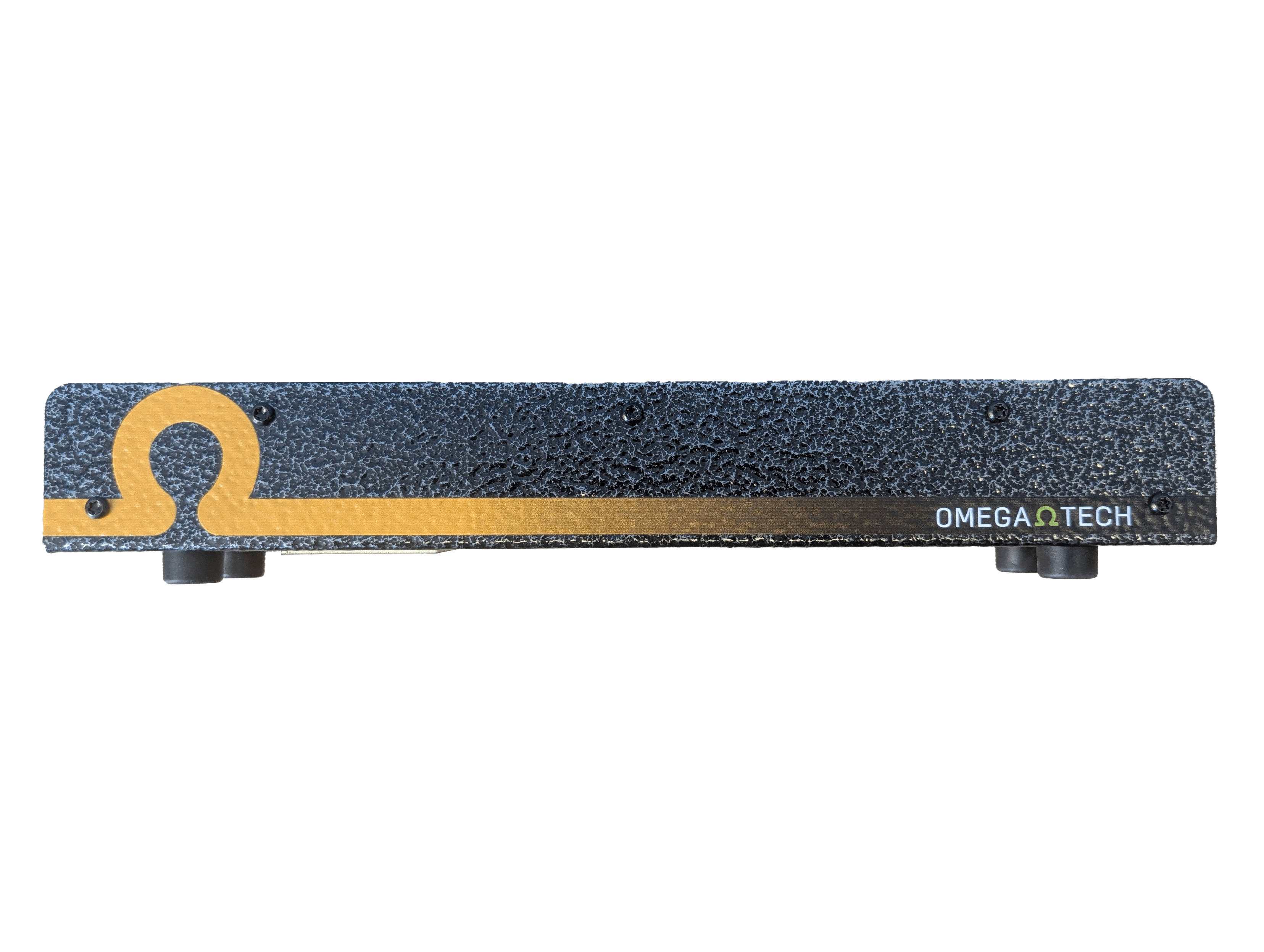

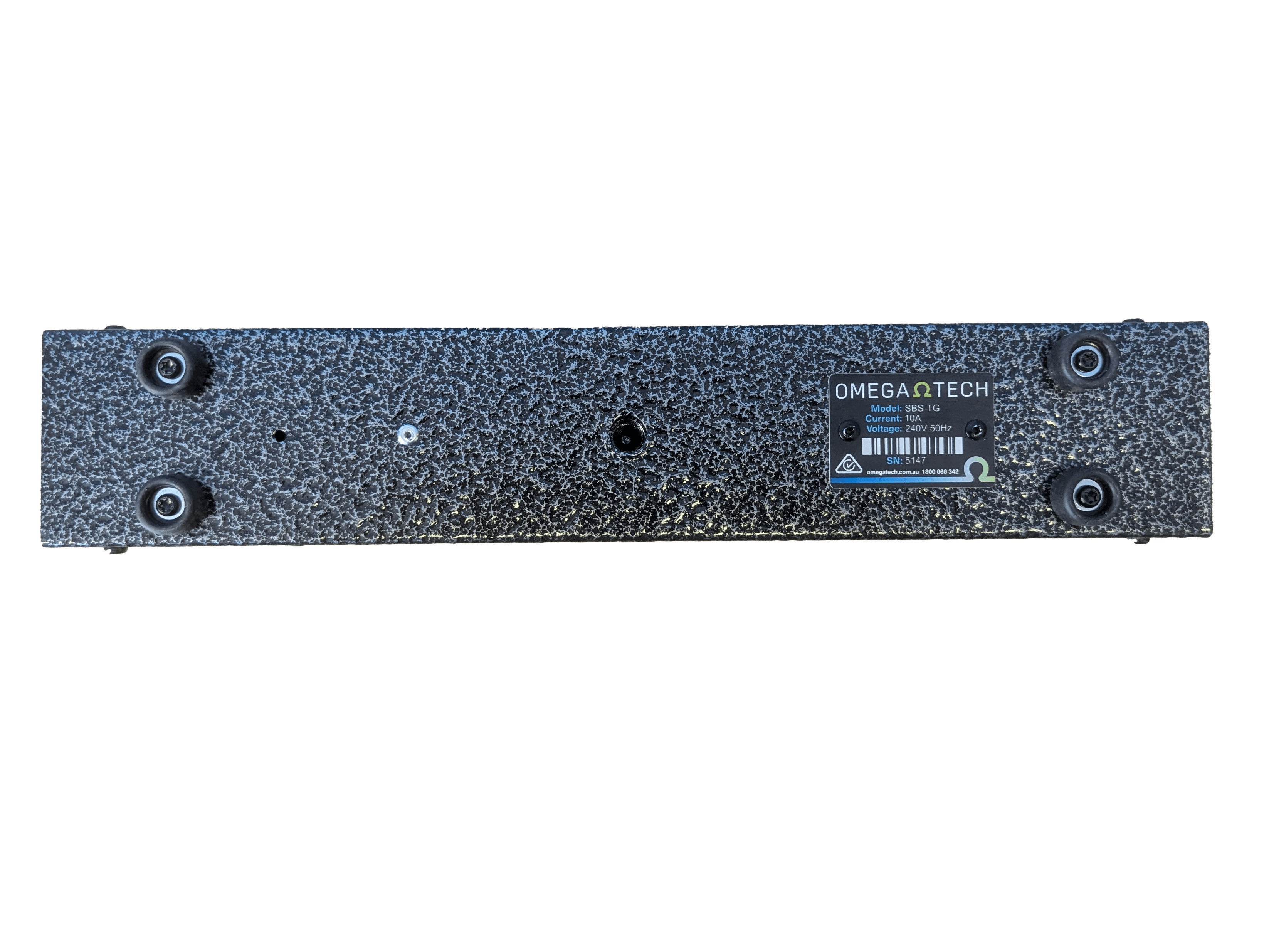

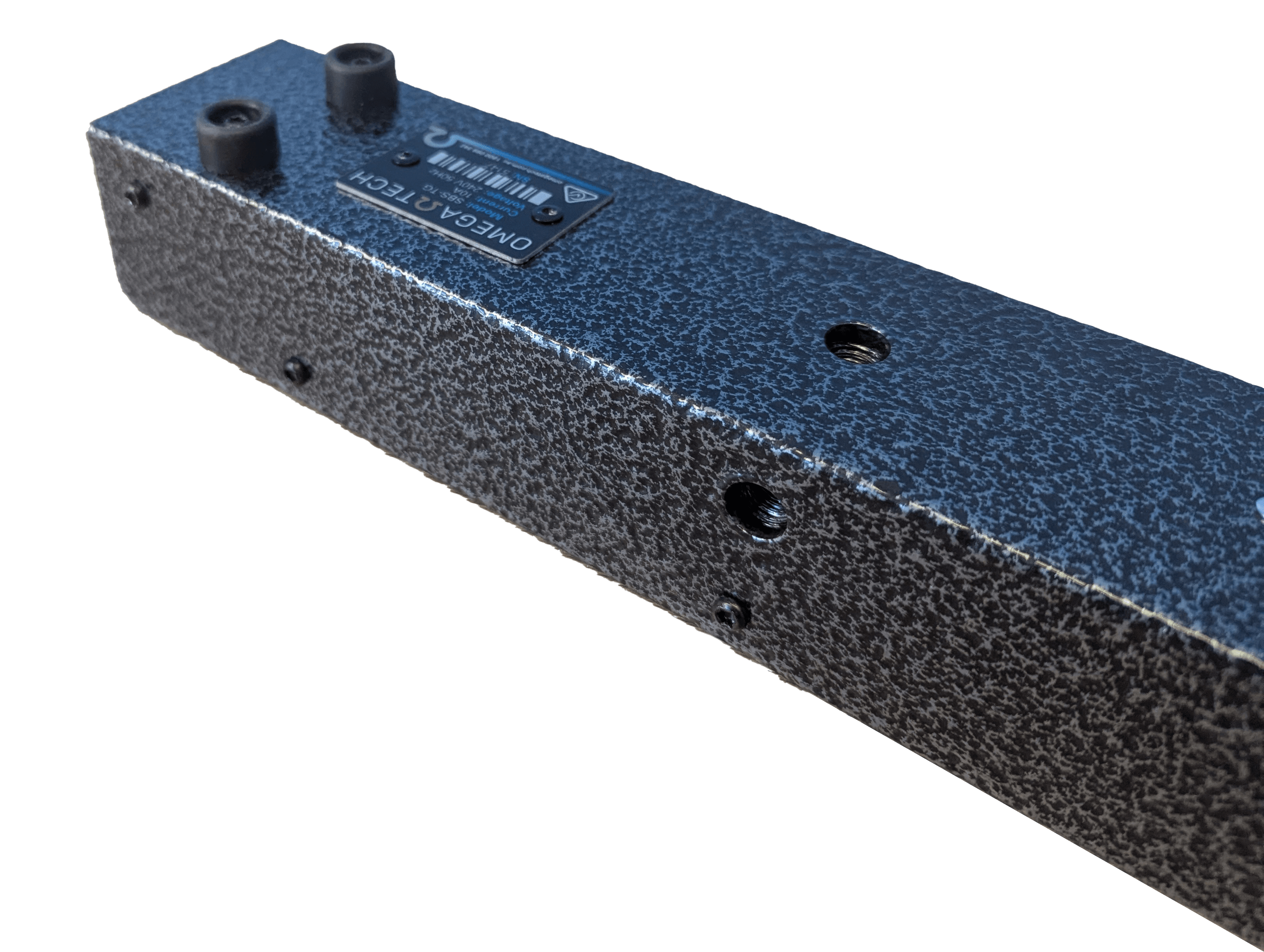

Stage Box Strips measure 65mm wide x 60mm high and x 350mm long. The chassis is constructed of 1.0mm steel. Metal surfaces are zinc treated and finished in a signature, hard wearing, off black textured hammertone which resists scratches or marks. The unit is fitted with 2 industry standard M10 internal threads (bottom and side) for easy mounting options.

COMPLIANCE
All OmegaTech products are built to comply with Australian Regulations including:
AS/NZS 3002:2021 — Electrical Installations — Shows and carnivals
AS/NZS 3105:2014 — Approval and test specification — Electrical Portable Outlet Devices
AS/NZS 4417:2020 — RCM/EESS Responsible Supplier in the Electrical Equipment Safety System
AS/NZS 61439:2016 — Australian Standards for low-voltage switchgear and control gear assemblies
