MOUNTING
Ω   Standalone

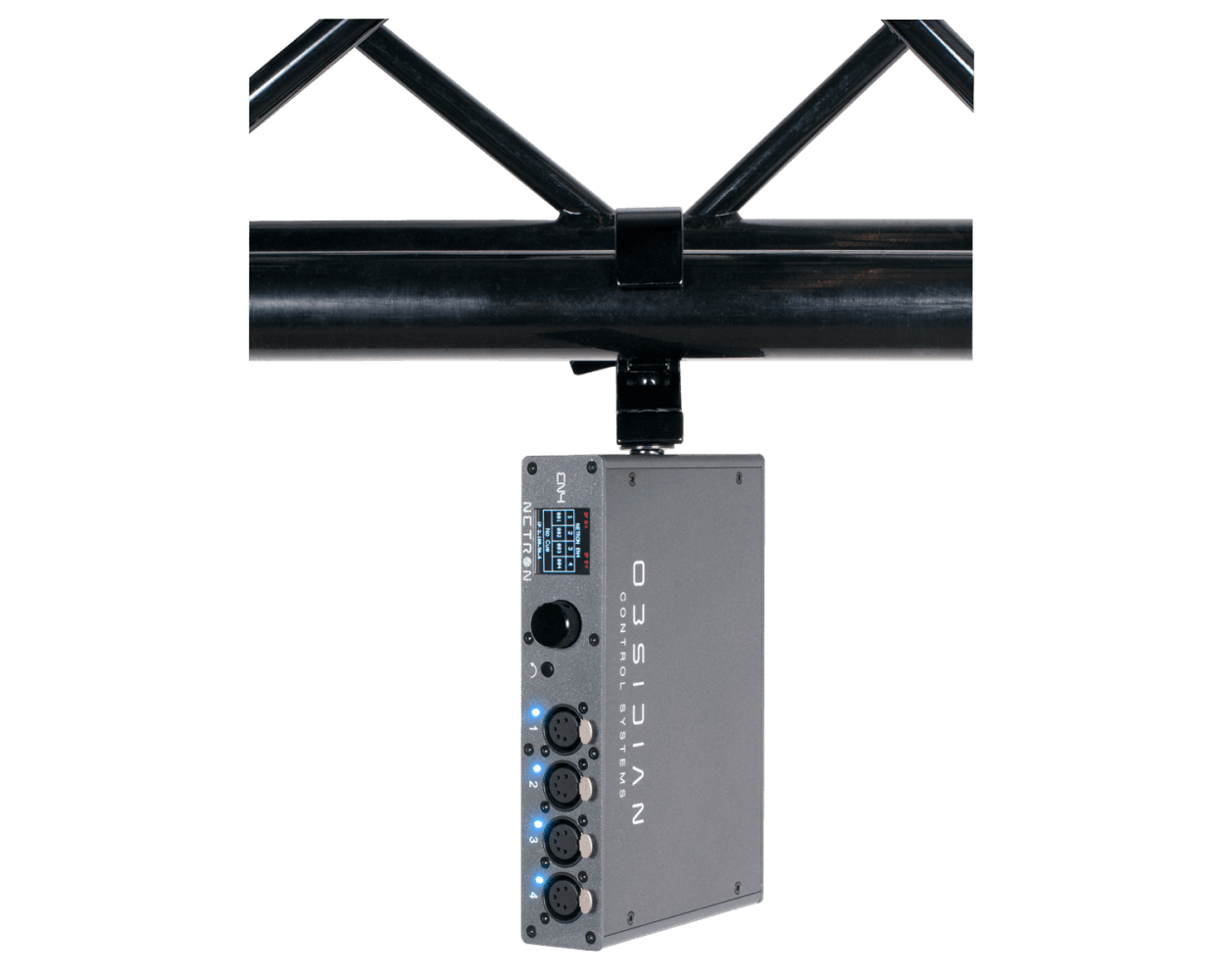

Ω   Truss-mount (M10 or M12 mounting hole)

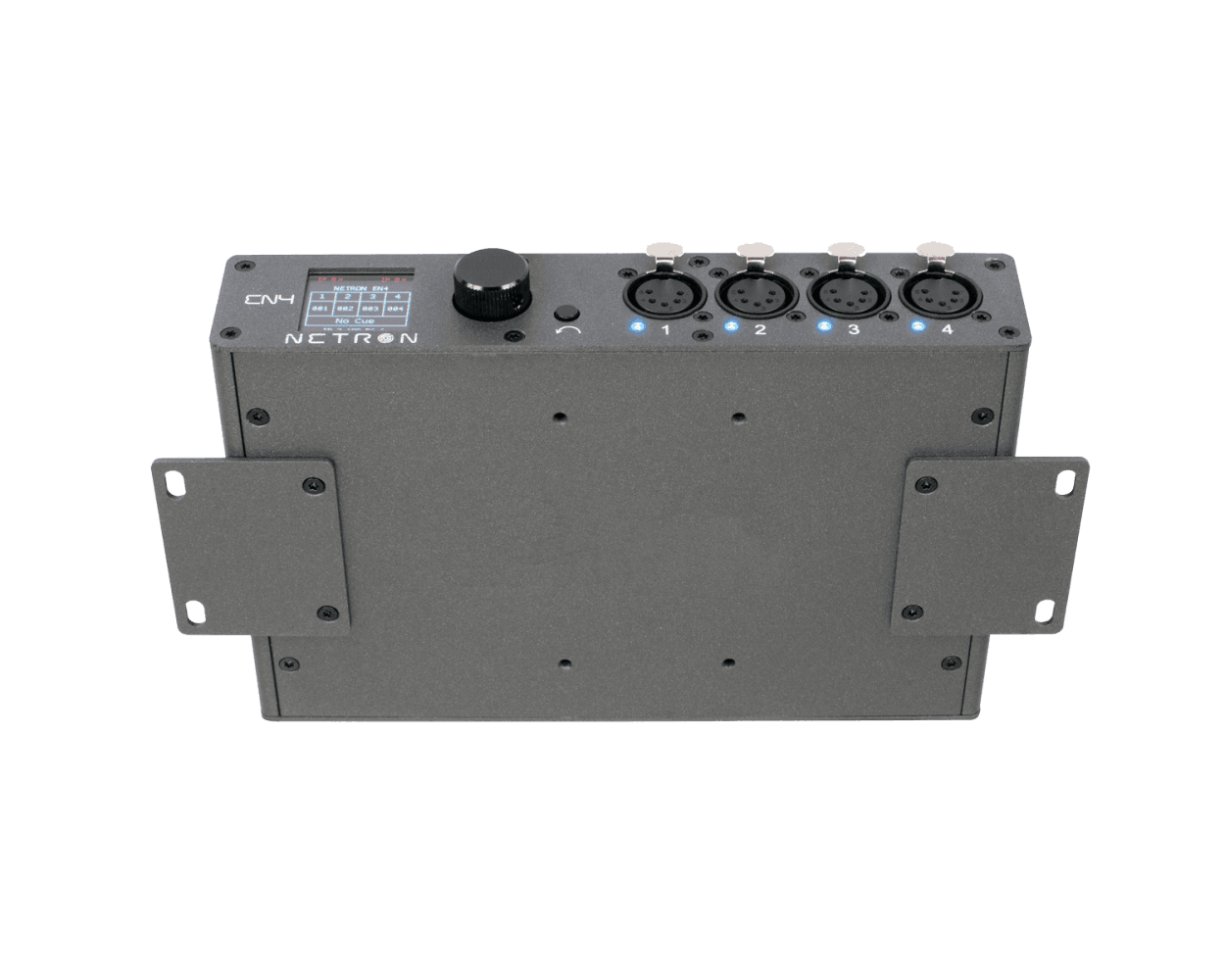

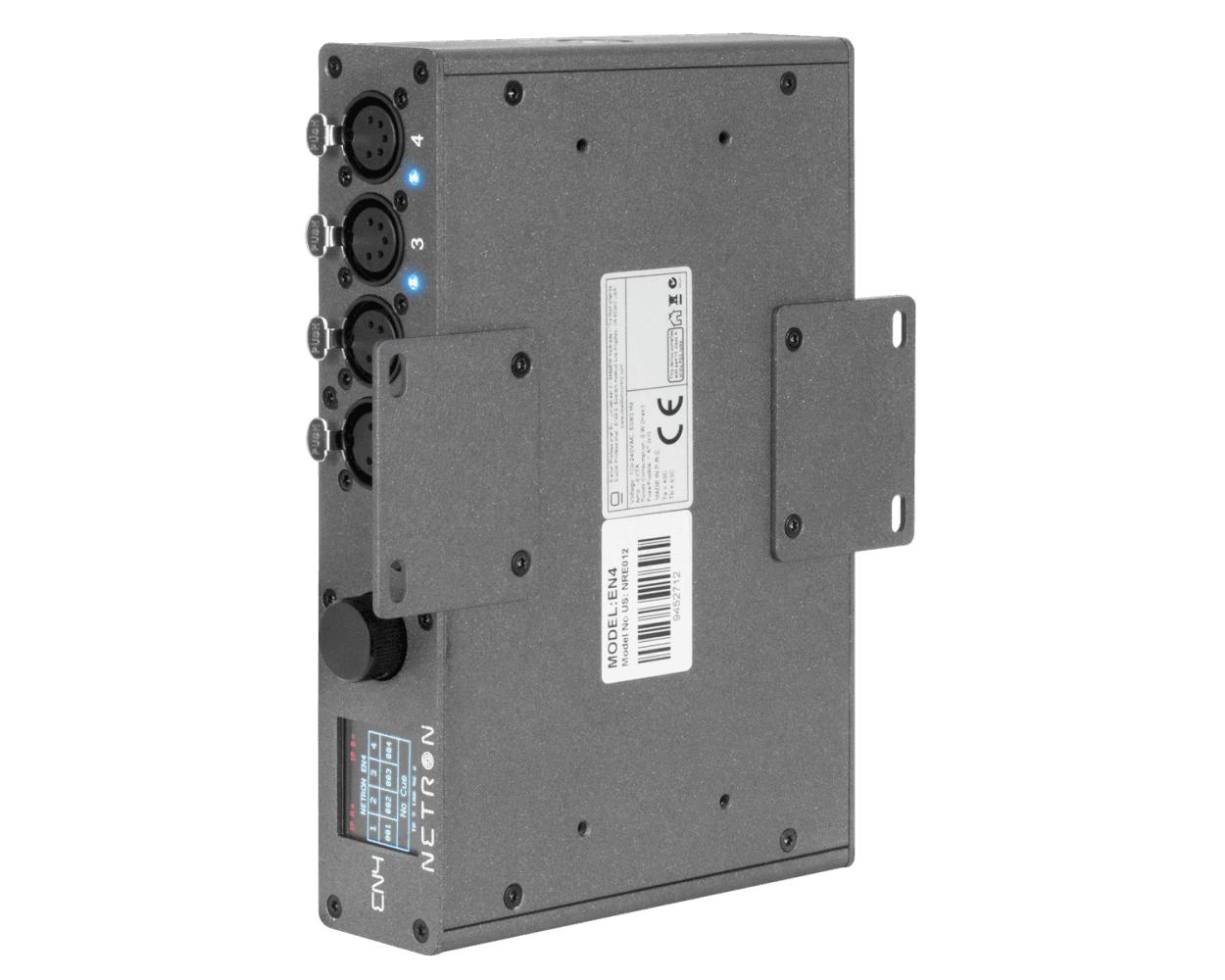

Ω   Wall mount horizontal or vertical (included)

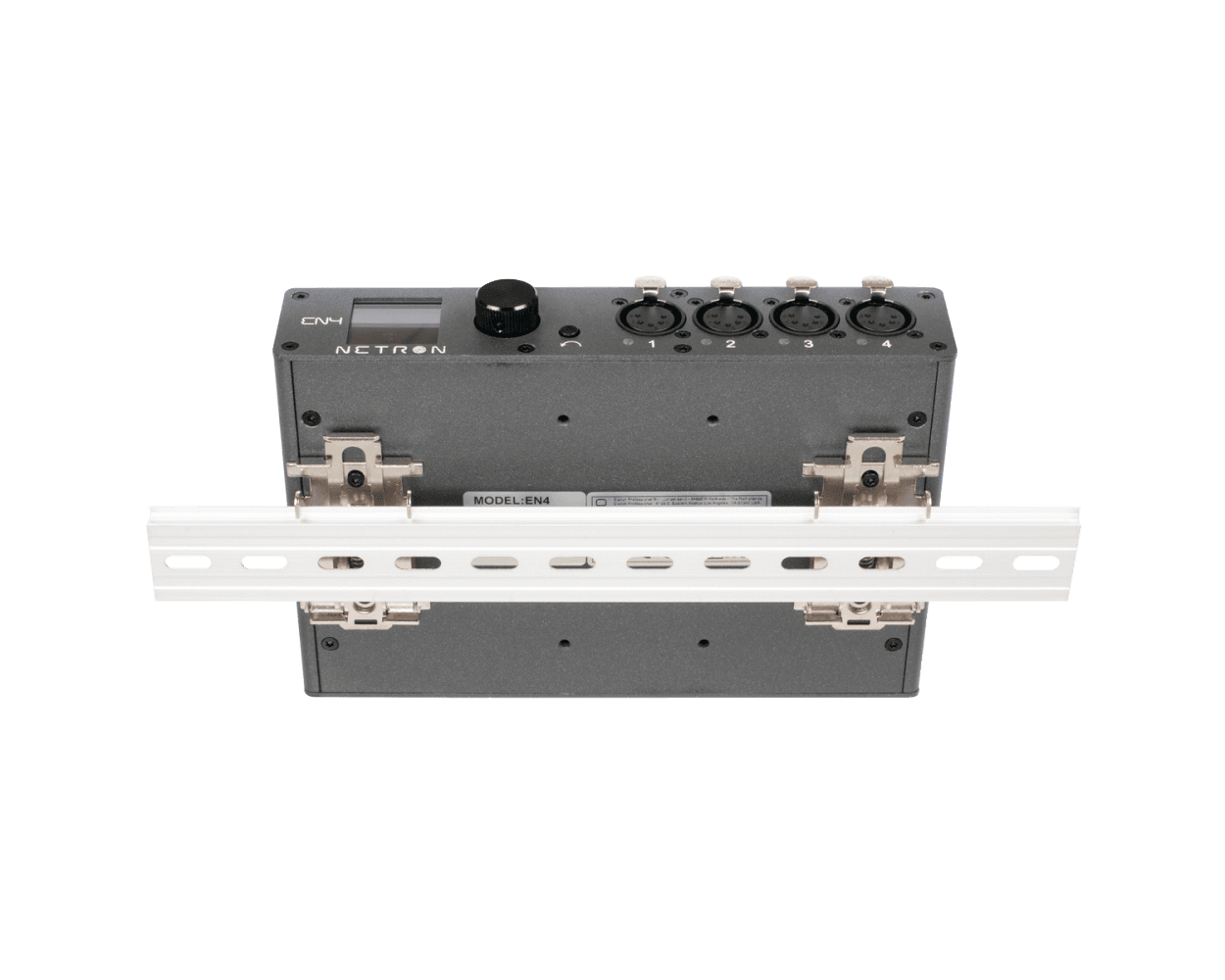

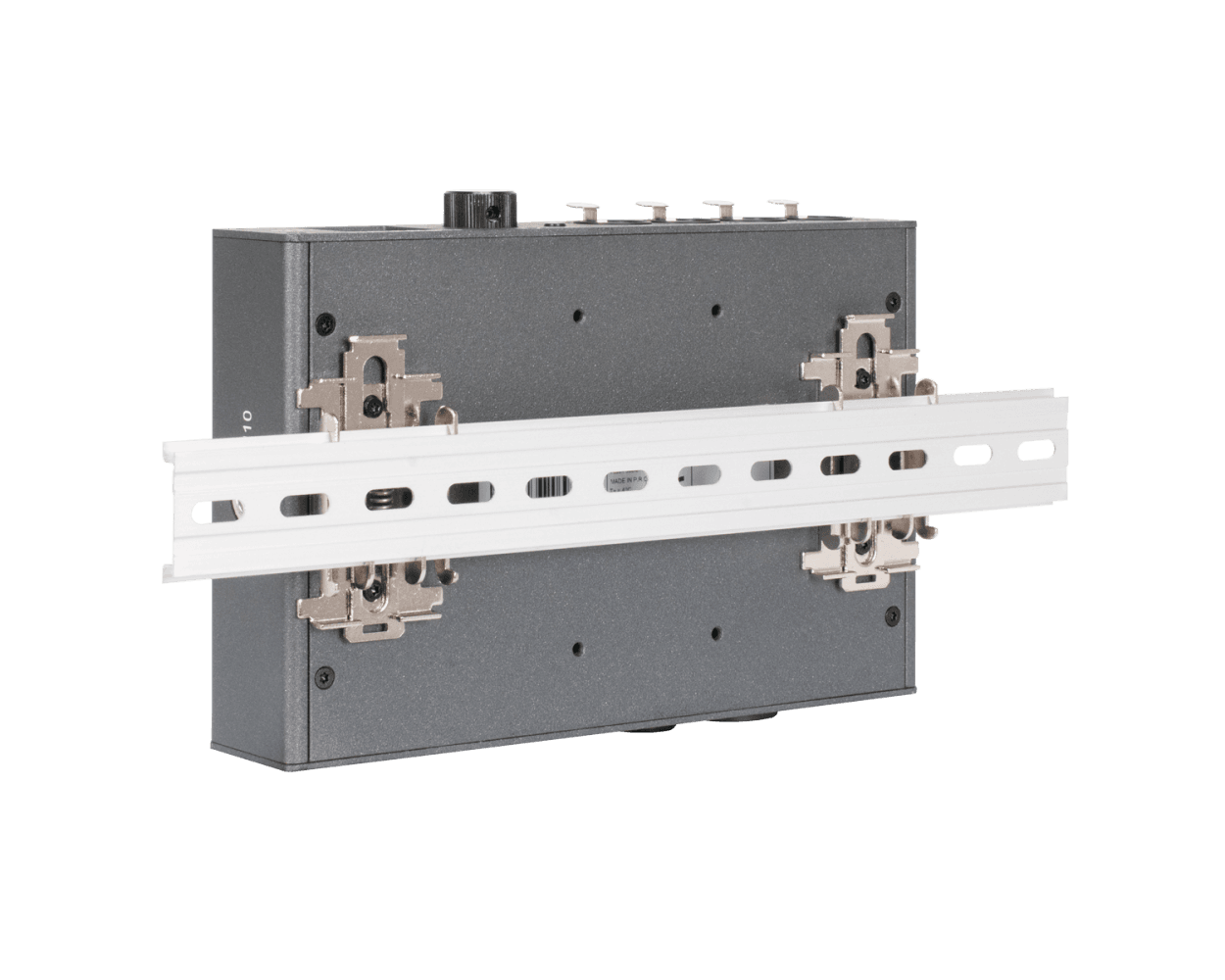

Ω   DIN Rail horizontal or vertical (included)

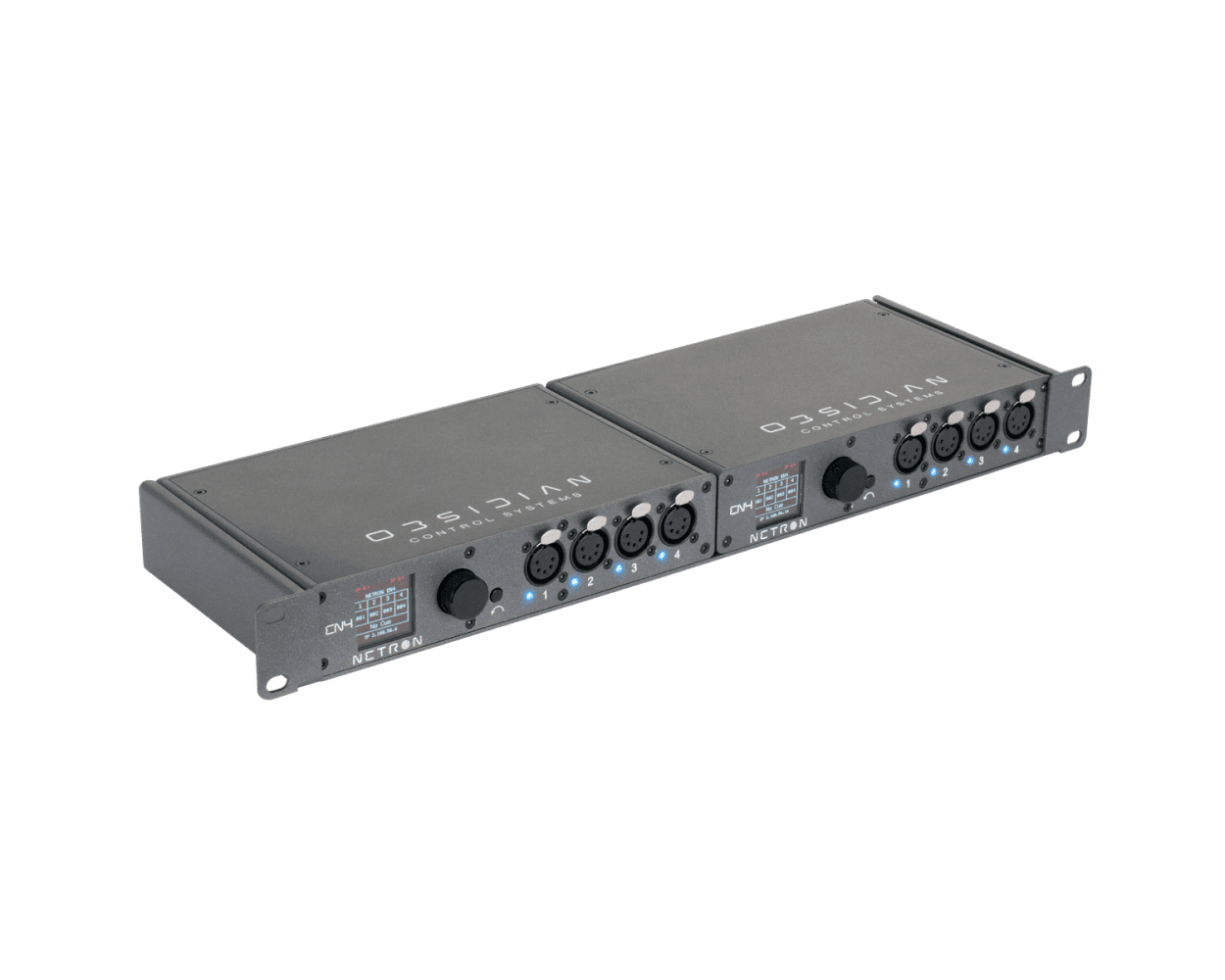

Ω   Rack mount option (requires NET Shelf)

CONNECTIONS

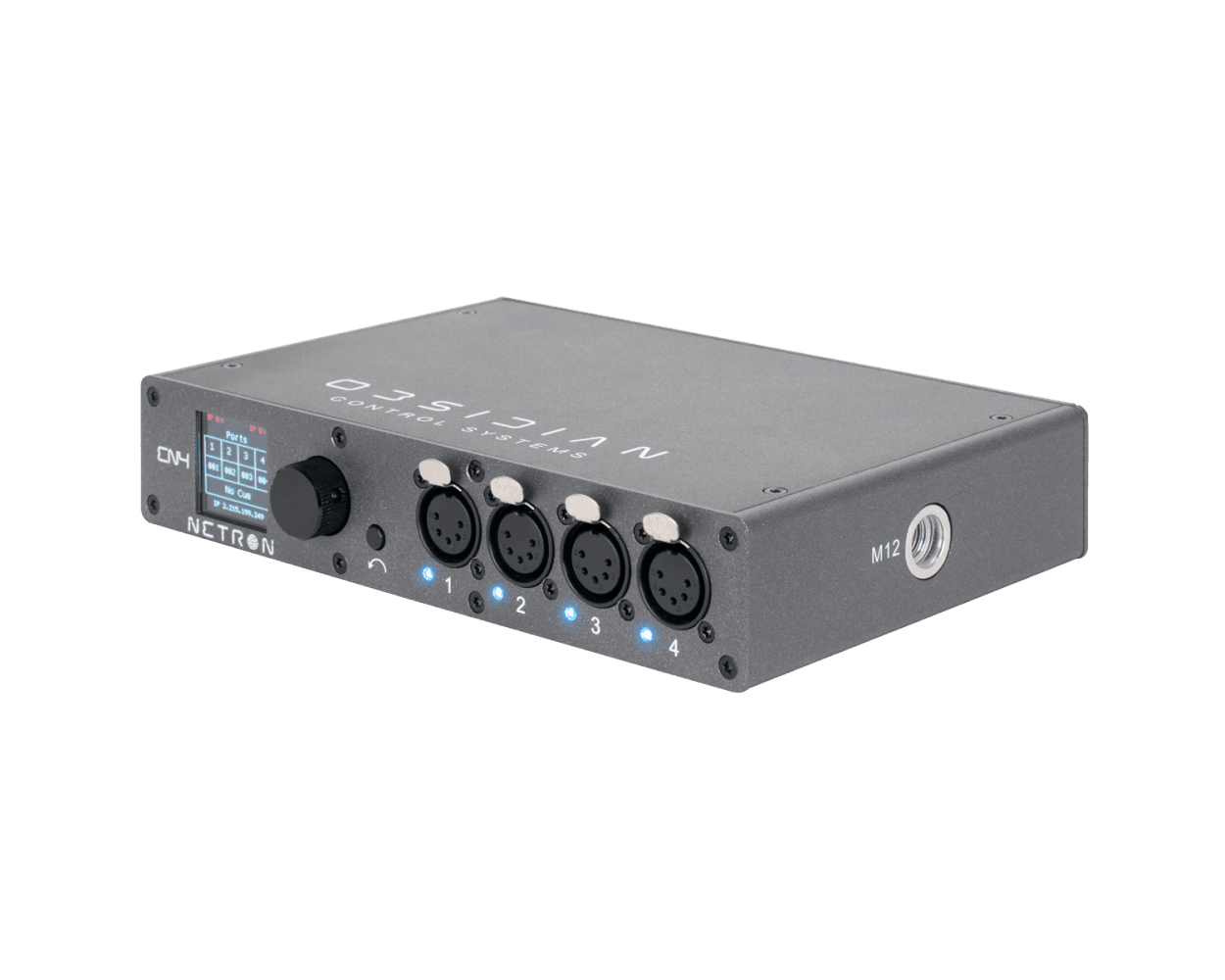

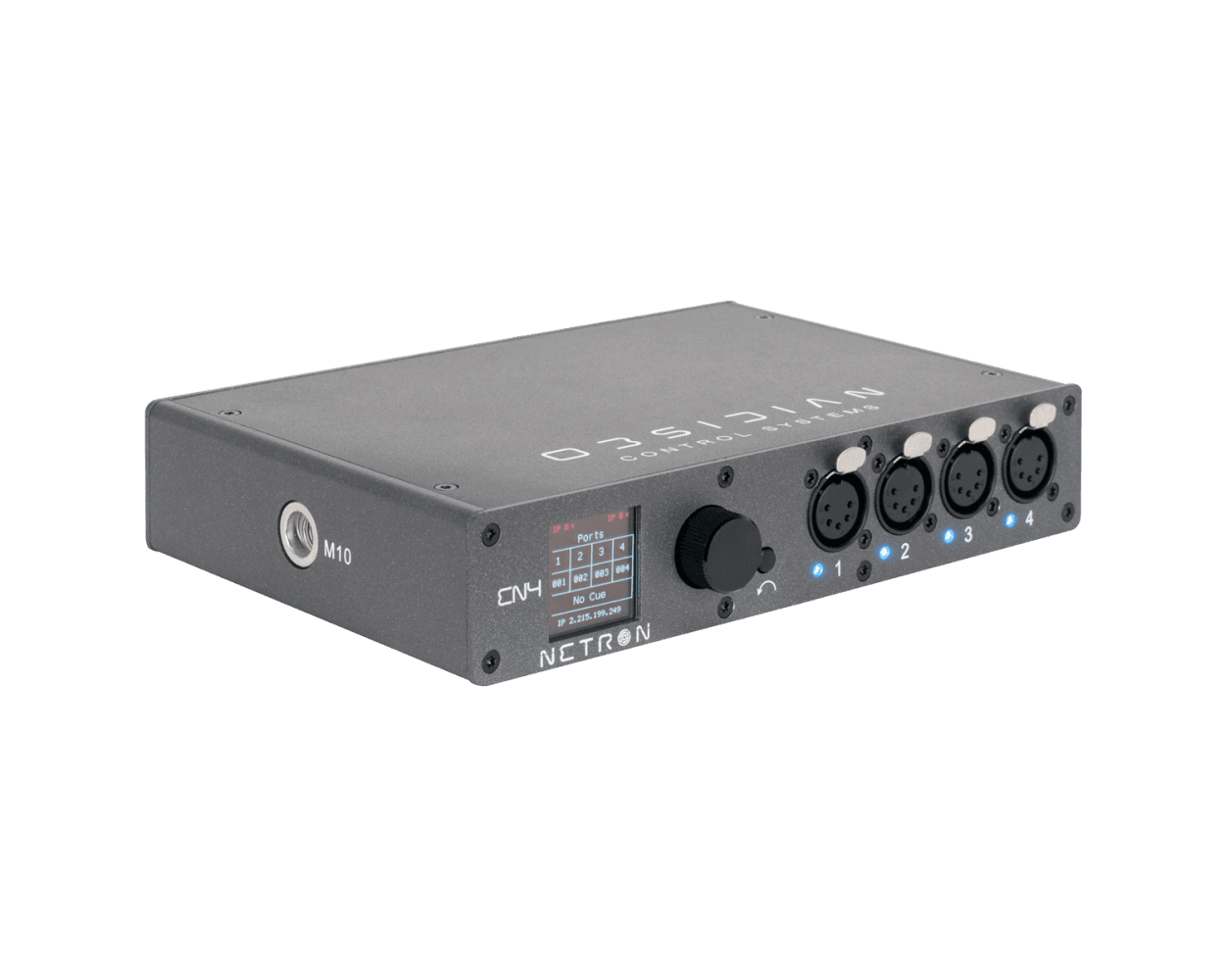

Ω   Front
   (4) 5pin XLR DMX/RDM ports
   Ω   Optical and galvanic isolation
   Ω   Bidirectional for DMX In and Output
   Ω   Full color OLED display
   Ω   Encoder w. Push to Select / Exit Button

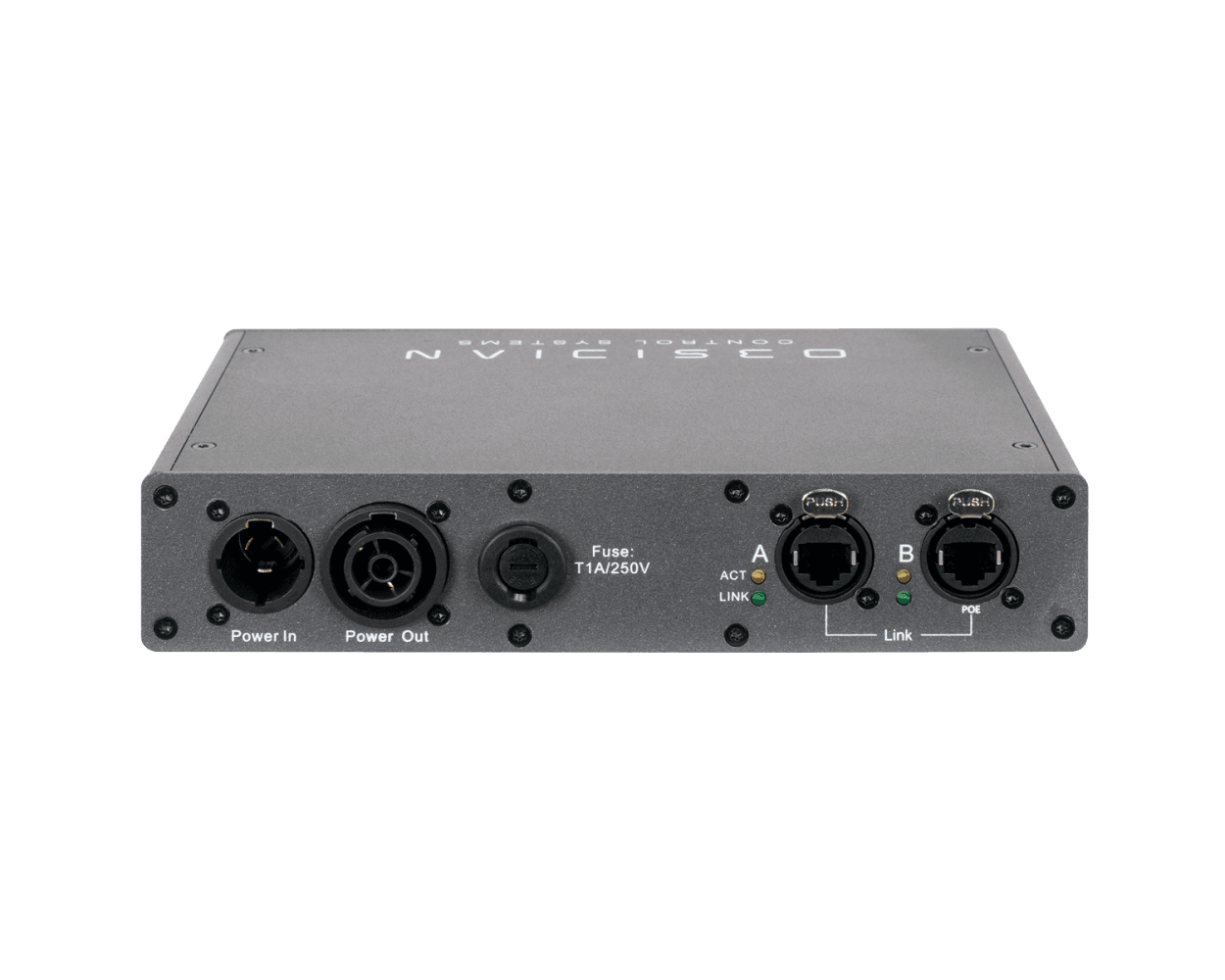

Ω   Back
   Ω   IP65 Locking Power In/Thru
   Ω   (2) Locking RJ45 Ethernet network (Low Latency Switch)

PROTOCOLS
Ω   Support
   Ω   sACN E1.31
   Ω   Art-Net
   Ω   DMX512-A E1.11 (In / Out)
   Ω   RDM E1.20
Ω   Ethernet Features
   Ω   Ethernet Port Speed 10/100/1000Mbps
   Ω   VLAN Group Support
   Ω   MDI / MDIX Port Sensing
   Ω   HTTP Remote Commands (Post, Get)
   Ω   HTML Web Remote

SPECIFICATIONS
Ω   Length: 139 mm (5.5 in.)
Ω   Width: 215 mm (8.5 in.)
Ω   Height: 42 mm (1.65 in.)
Ω   Weight: 1 kg (2.2 lbs)
Ω   AC 100-240V nominal, 50/60 Hz
Ω   PoE 802.3af
Ω   Power Consumption: 5W

INCLUDED ITEMS
Ω   1.5m Ip65 Locking power cable
Ω   (2) Wall mount plates
Ω   (2) DIN-Rail clamps
