NETRON EP2

Categories: SKU: EL-NRE034

Key Features

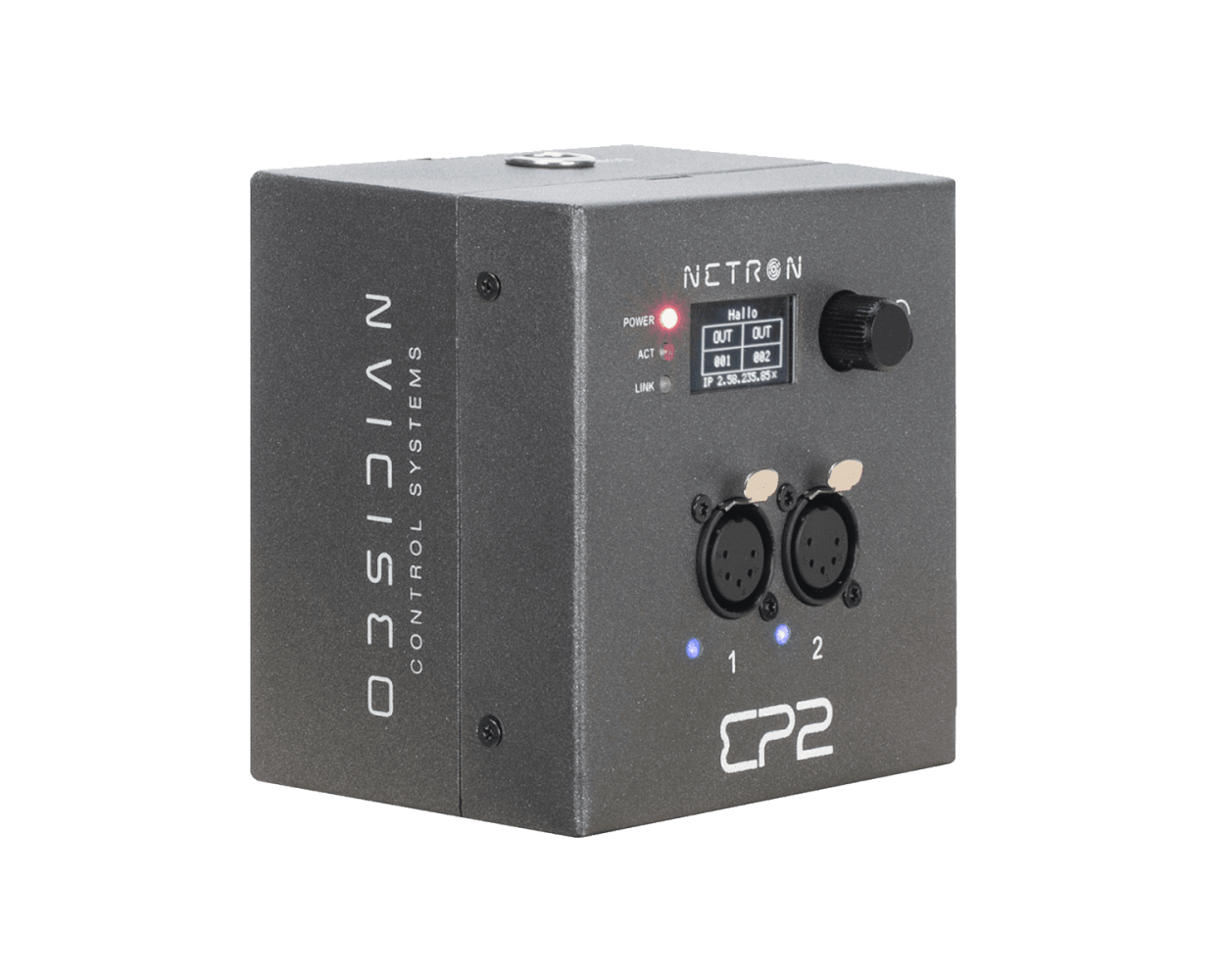

The Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations.

It is configurable via its internal web remote and powered over Ethernet or via the convenient USB-C connection.

Ω   RDM, ArtNet and sACN support
Ω   Factory and user presets for plug and play setups
Ω   POE or USB-C powered
Ω   1.3” OLED Display with rotary knob
Ω   Remote configuration via internal webpage
Ω   Powder-coated compact metal housing
Ω   Connect to ONYX PC for a full four Universe Solution
Ω   In-wall, On-Wall, Truss and Standalone mounting
Ω   Unlocks ONYX NOVA 4-Universe License
Ω   NETRON CLU for remote configuration and firmware updates

MOUNTING
Ω   Standalone (backbox included)
Ω   Truss-mount (M10 + M12 mounting hole)

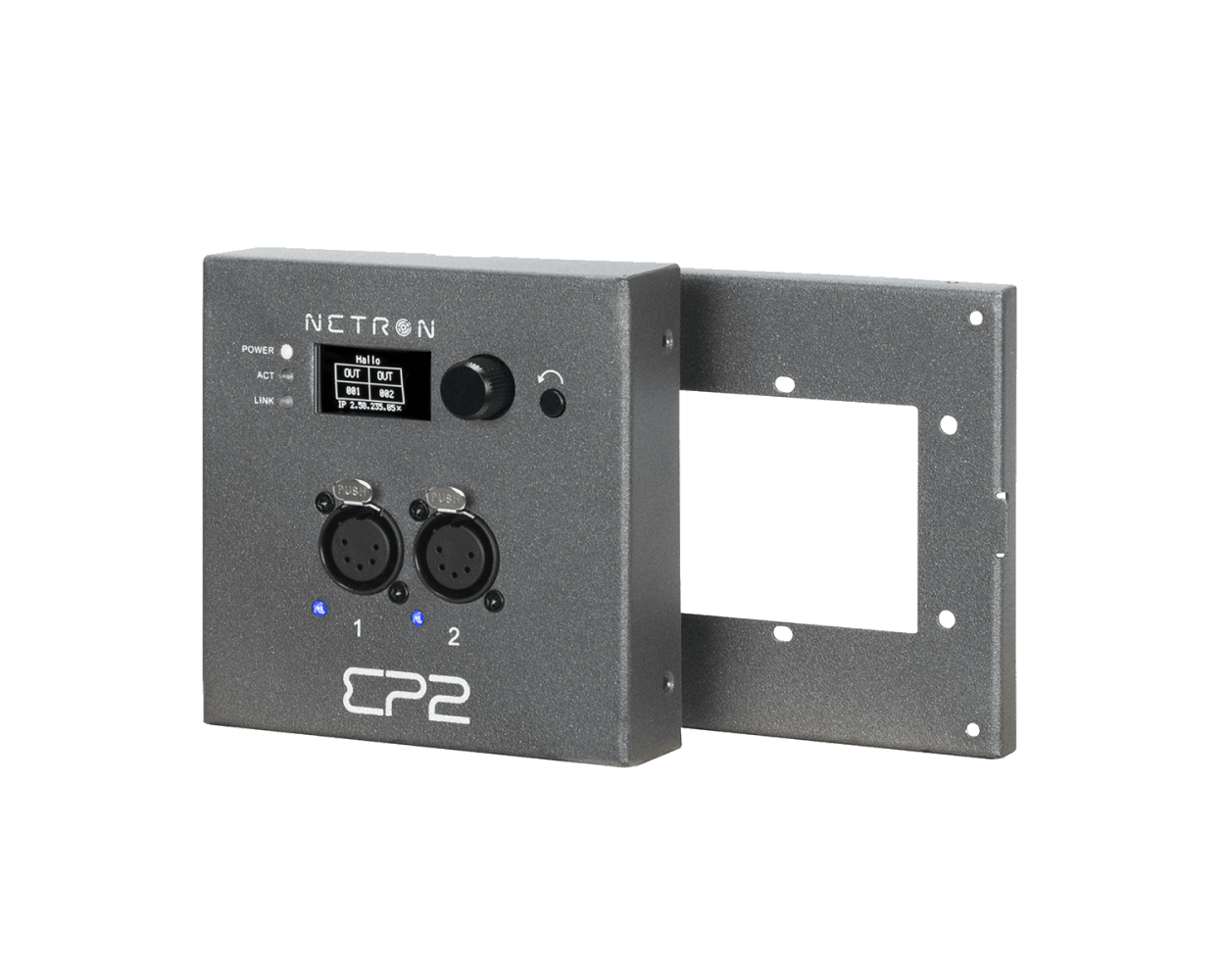

Ω   In or On-wall 2-Gang (US) or 50mm round (EU)

CONNECTIONS

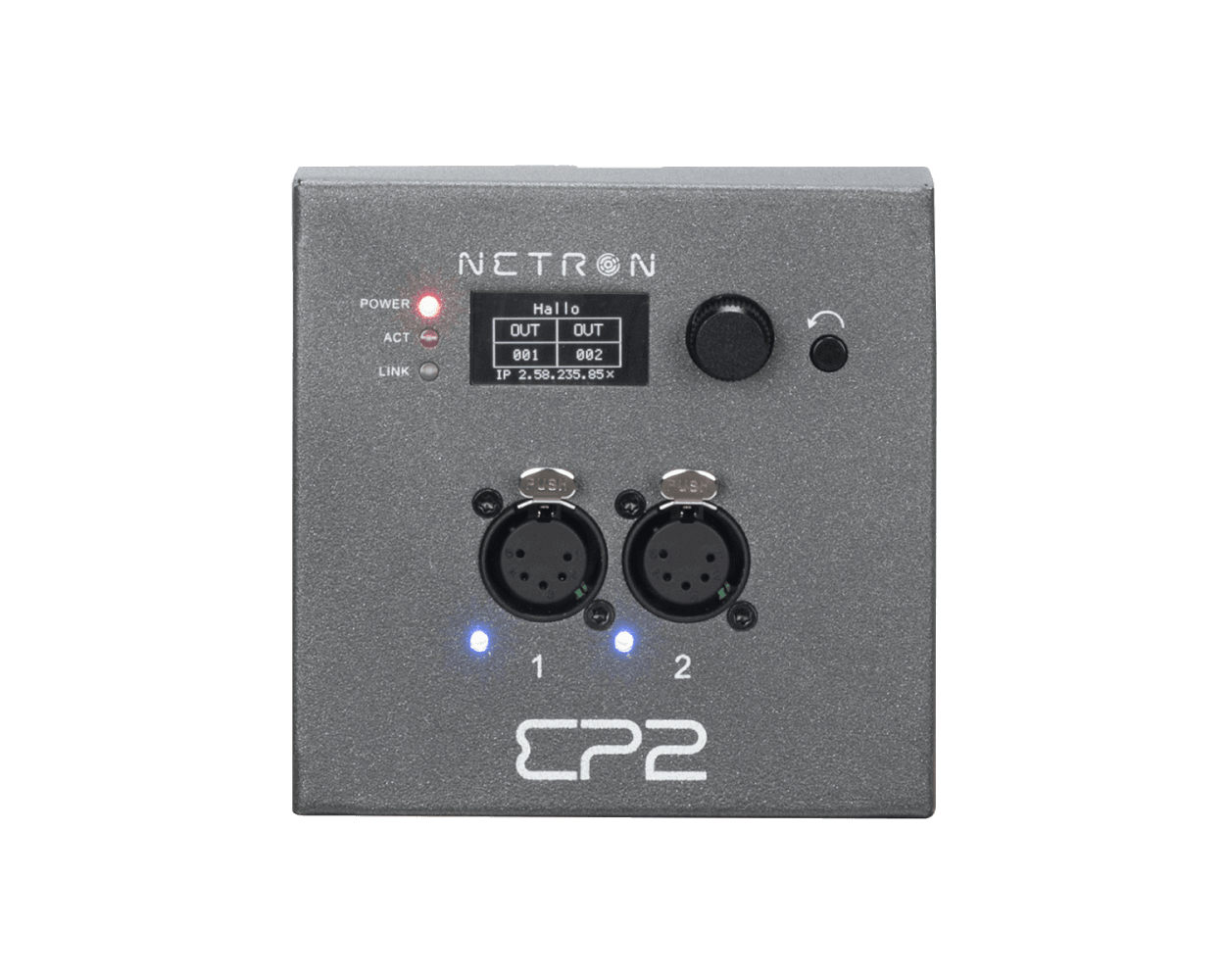

Ω   Front
   Ω   (2) 5pin DMX/RDM optically isolated ports
   Ω   Ports are bidirectional for DMX In and Output
Ω   Side
   Ω   (1) Locking RJ45 Ethernet network connections (POE)
   Ω   USB-C power option (5V, 2A)

SPECIFICATIONS
Ω   Length: 117.6mm
Ω   Width: 114.0mm
Ω   Height: 89.1mm
Ω   Weight: 0.8kg
Ω   USB-C 5V
Ω   POE 802.3af
Ω   Power Consumption: 2.8W

INCLUDED ITEMS
Ω   Universal 5V/2A USB Power Adapter 100-240V
Ω   1.5m Obsidian USB-C cable

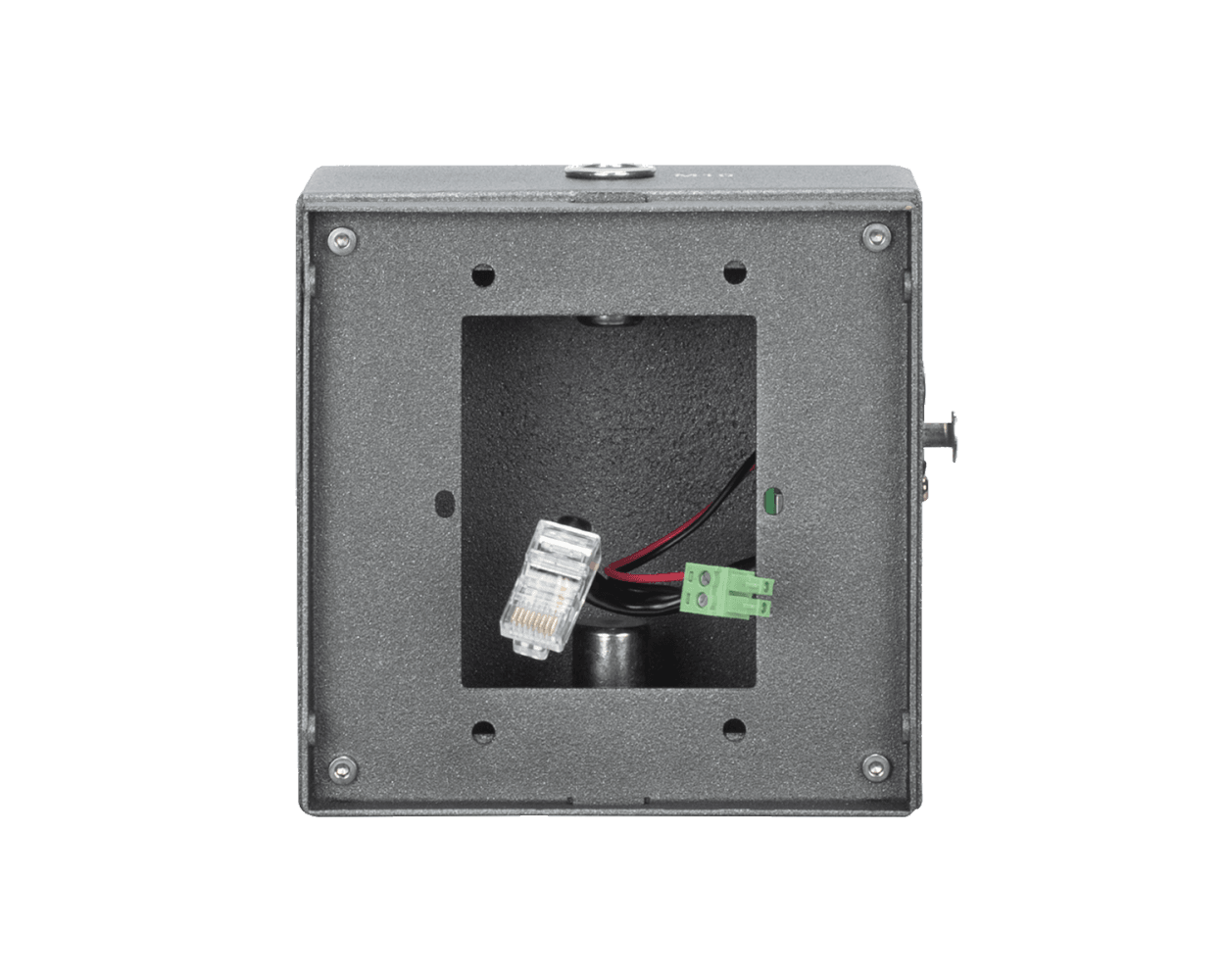

Ω   Wallmount Enclosure

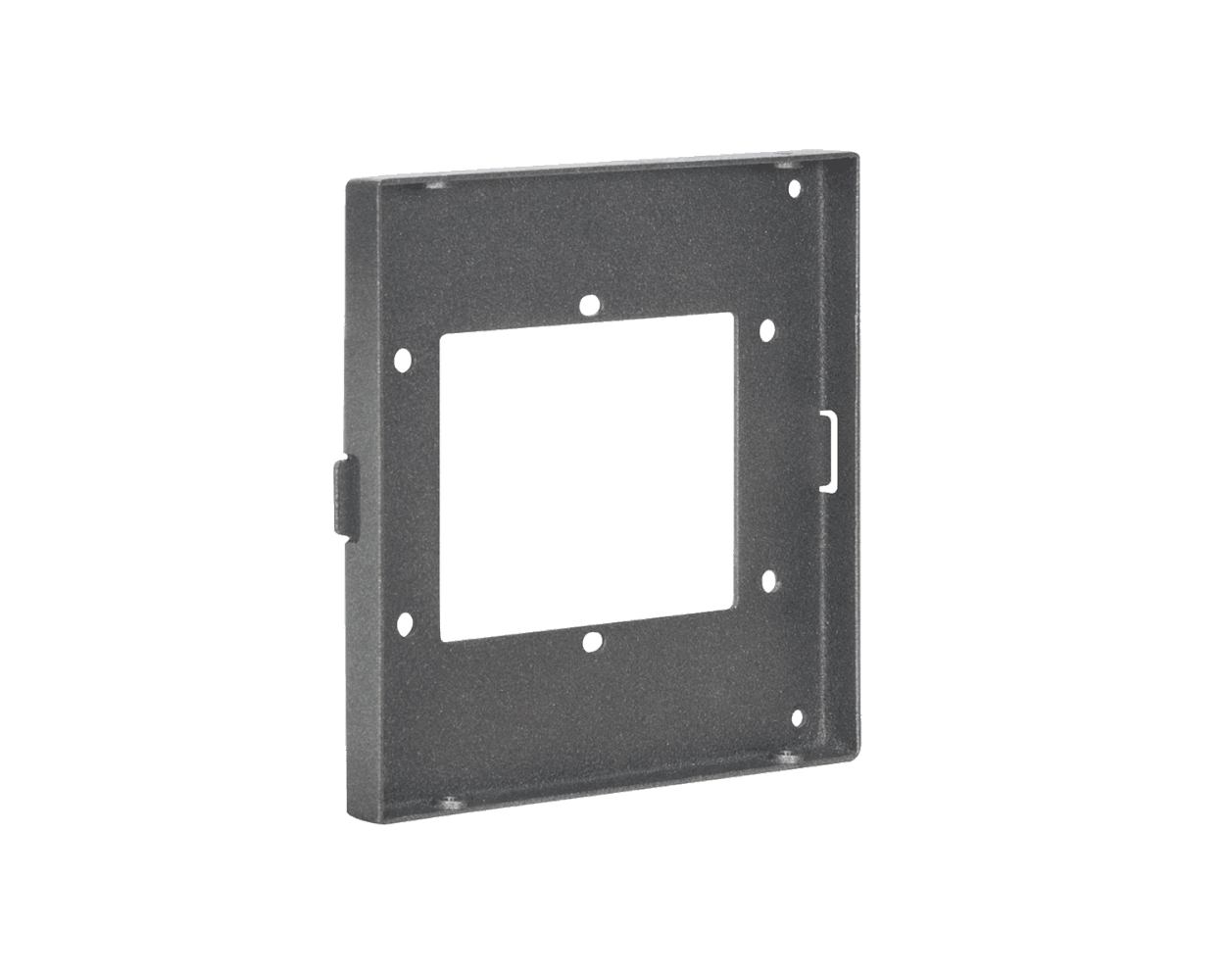

Ω   In-wall mounting ring

User Guide

Download

Netron-EP2-User-Guide.pdf

Specification Sheet

Download

Netron-EP2-Specification-Sheet.pdf

Installation Guide

Download

Netron-EP2-Installation-Guide.pdf

Drilling Guide

Download

Netron-EP2-Drilling-Guide.pdf

Dimensions

Download

Netron-EP2-Dimensions.pdf

NETRON Catalog 2026

Download

Obsidian-Netron-Catalog-2026.pdf

Weight1.3 kg
