NETRON RDM 645

Categories: SKU: EL-NRD112

Key Features

The Netron RDM 645 is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation.

Ω   (6) Locking RJ45 Ethernet DMX outputs
Ω   DMX and RDM compliant
Ω   Optically isolated ports
Ω   Power / DMX Through connectors
Ω   Powder-coated aluminum ½ rack housing

MOUNTING
Ω  Standalone

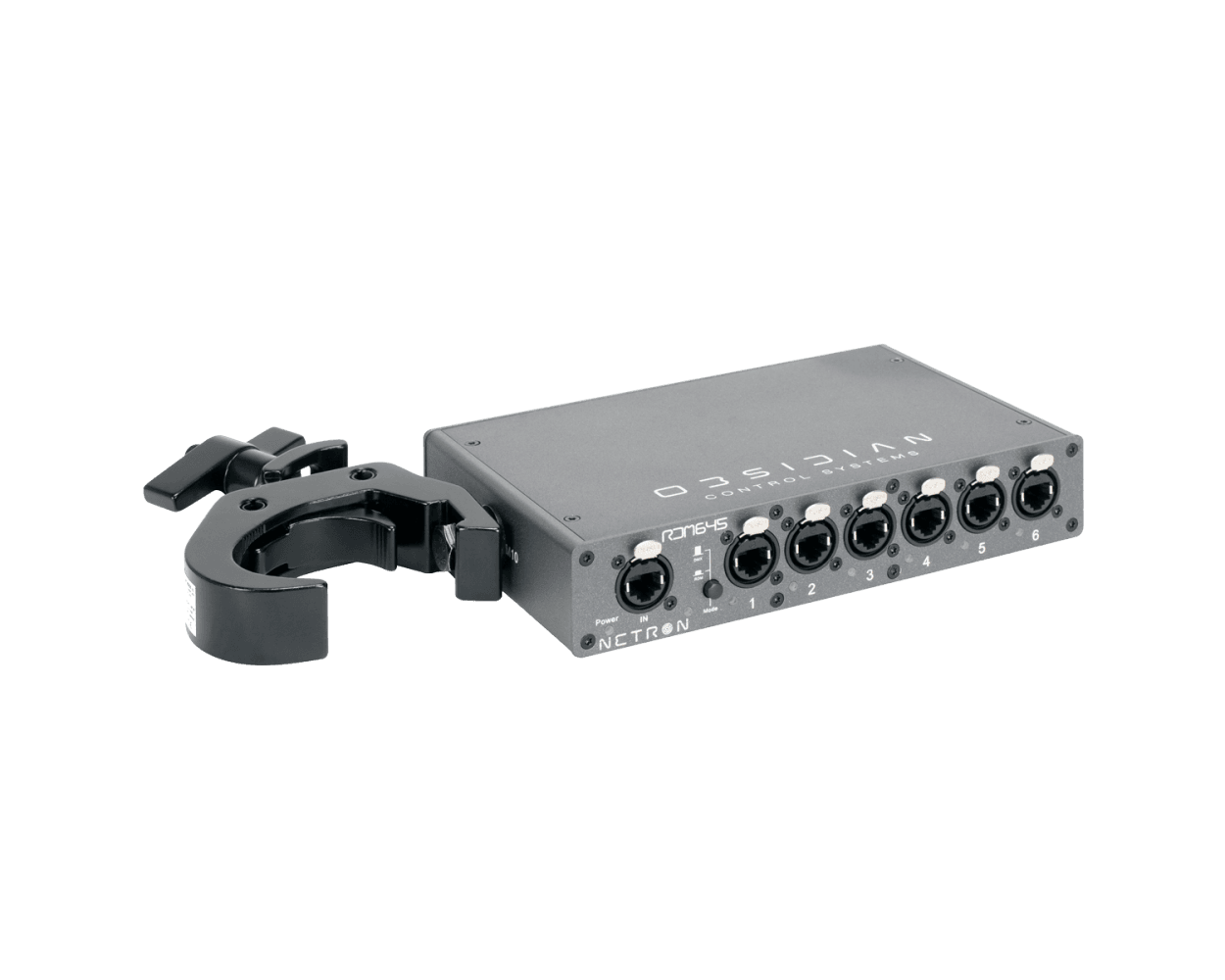

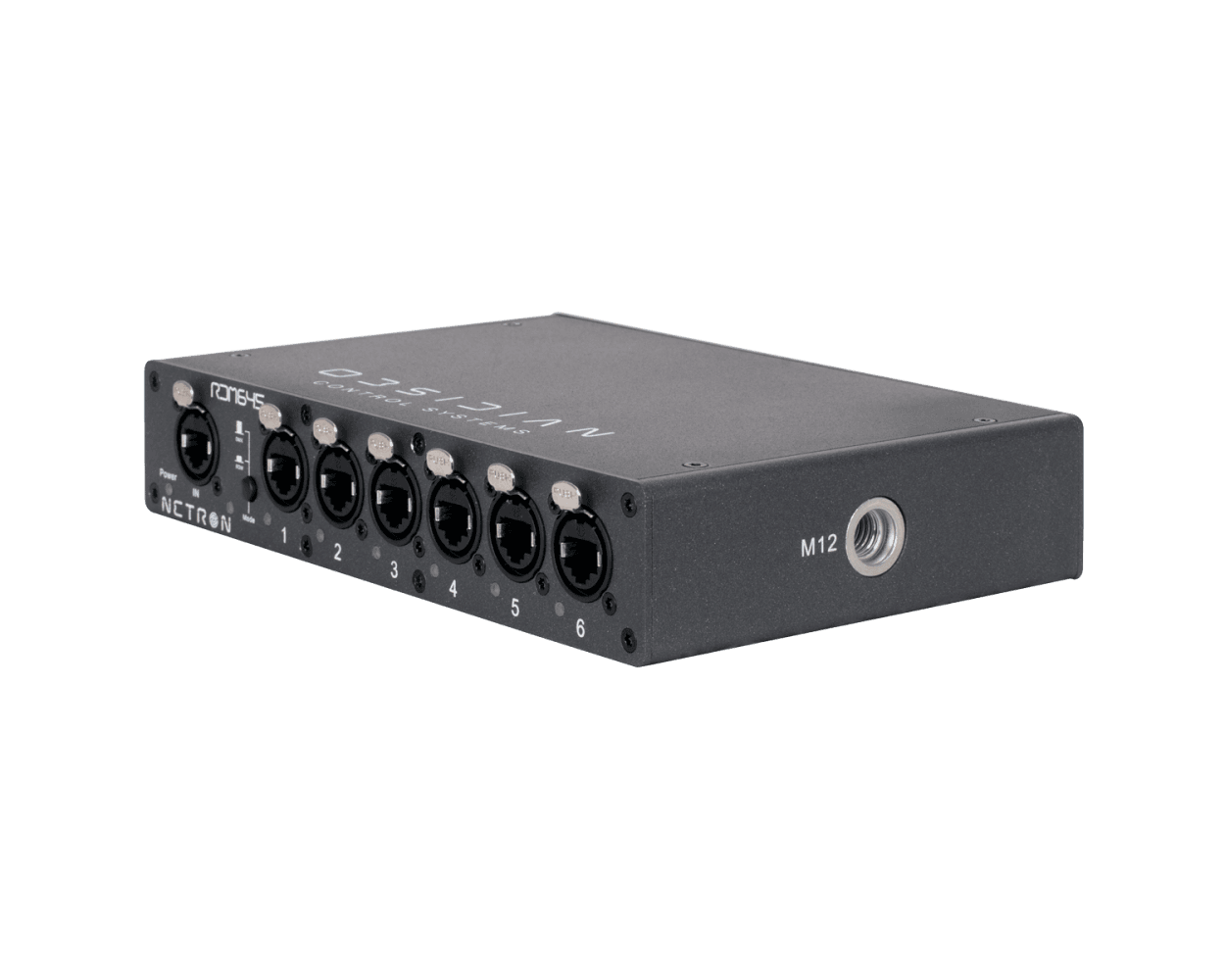

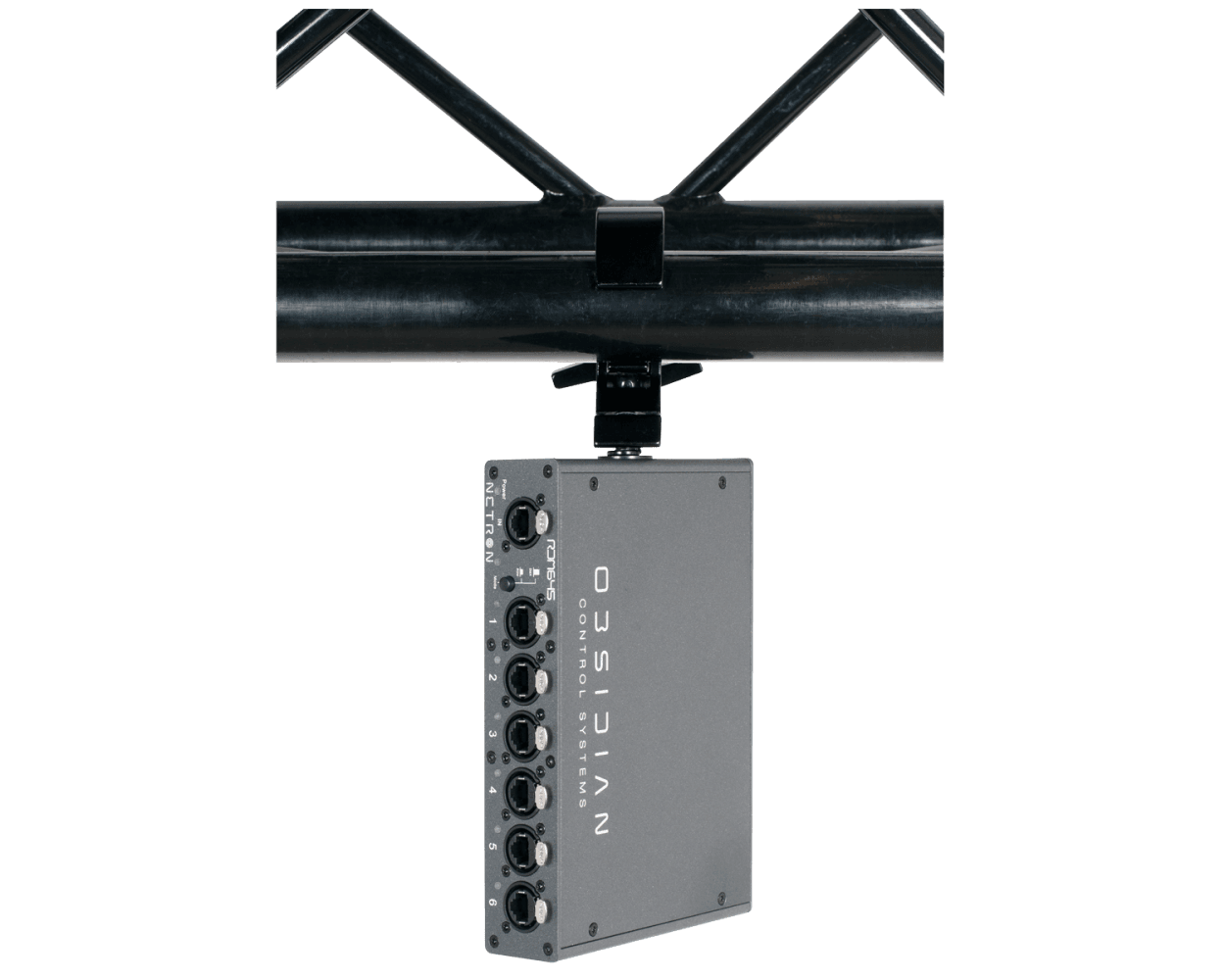

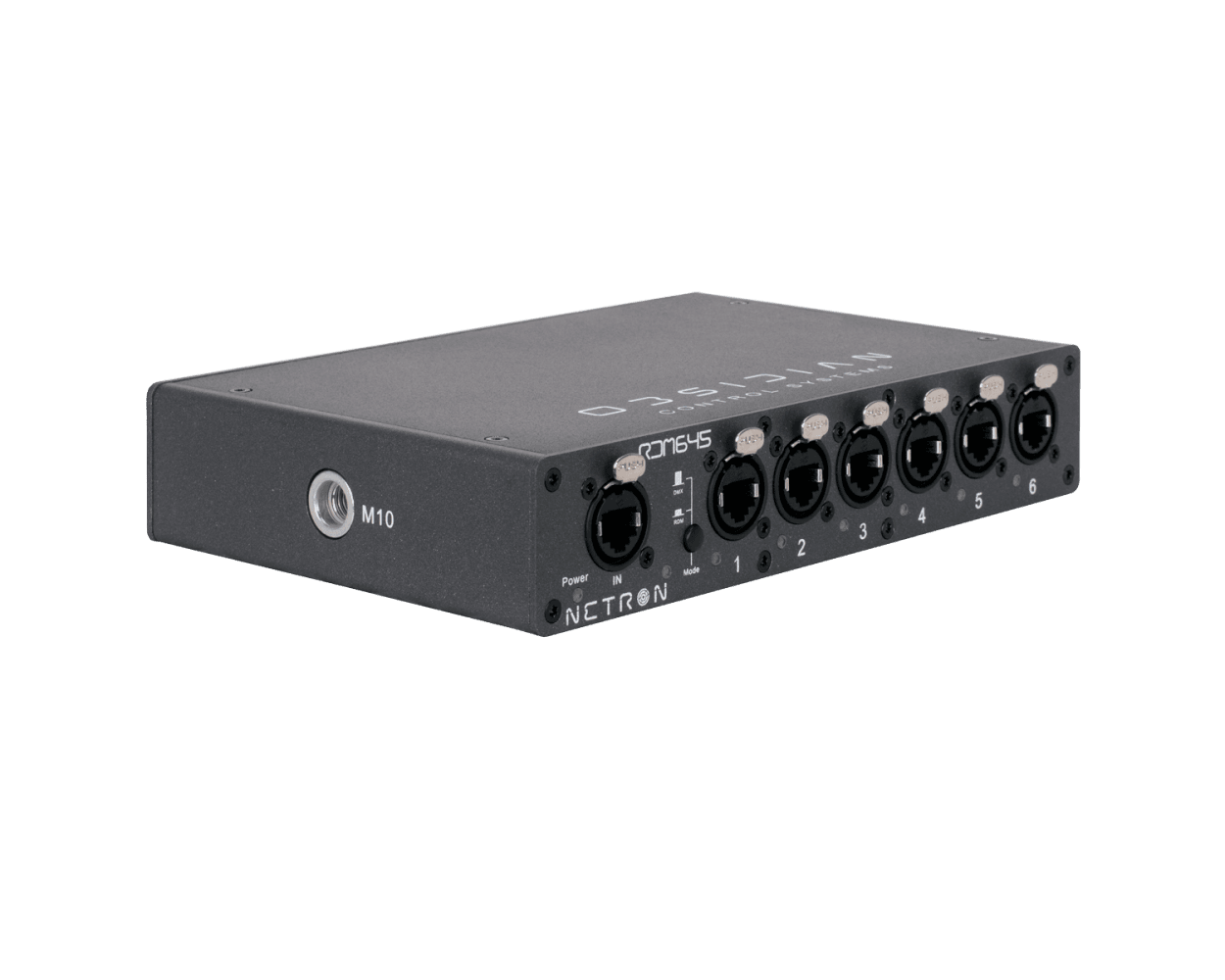

Ω  Truss-mount (M10 or M12 mounting hole)

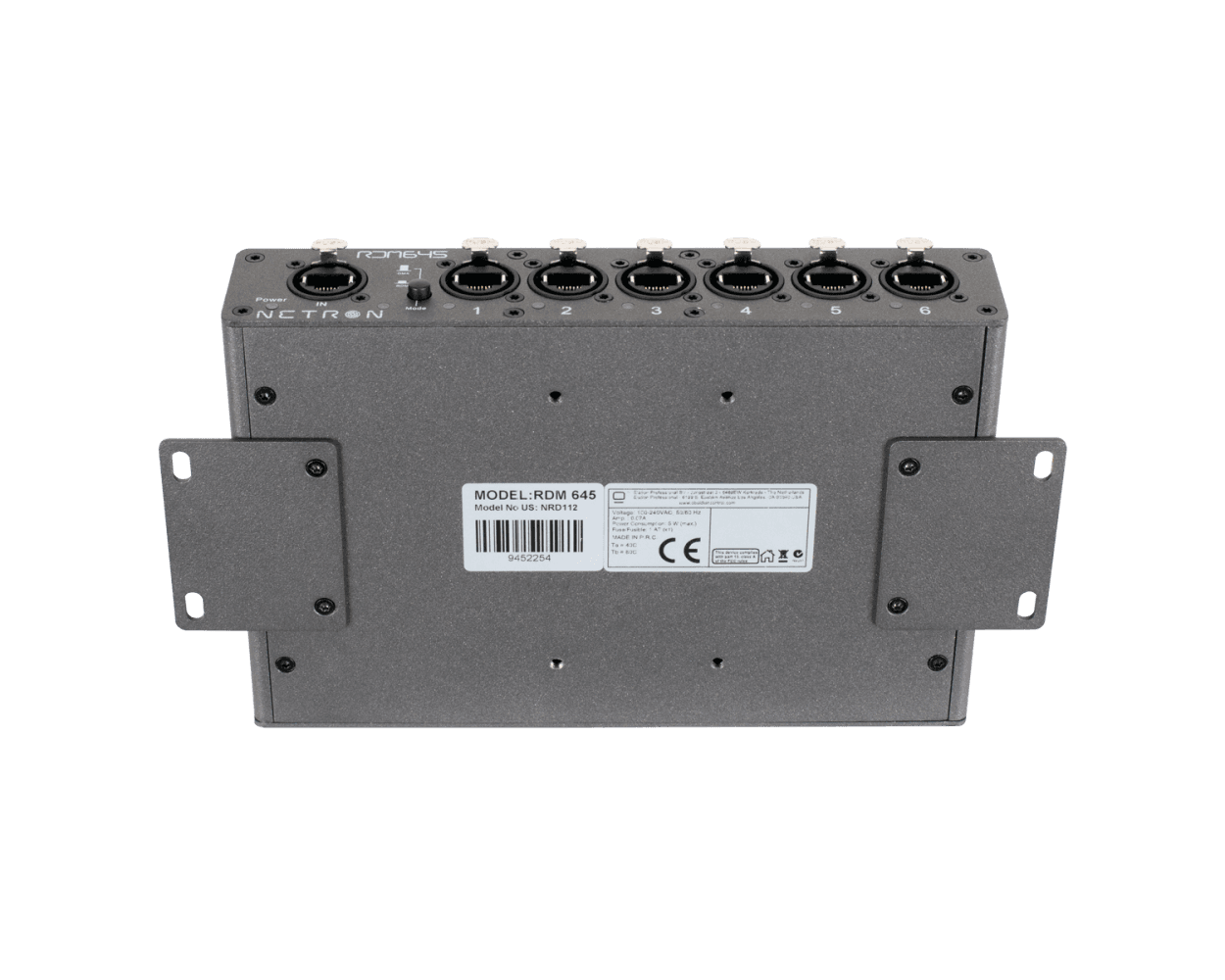

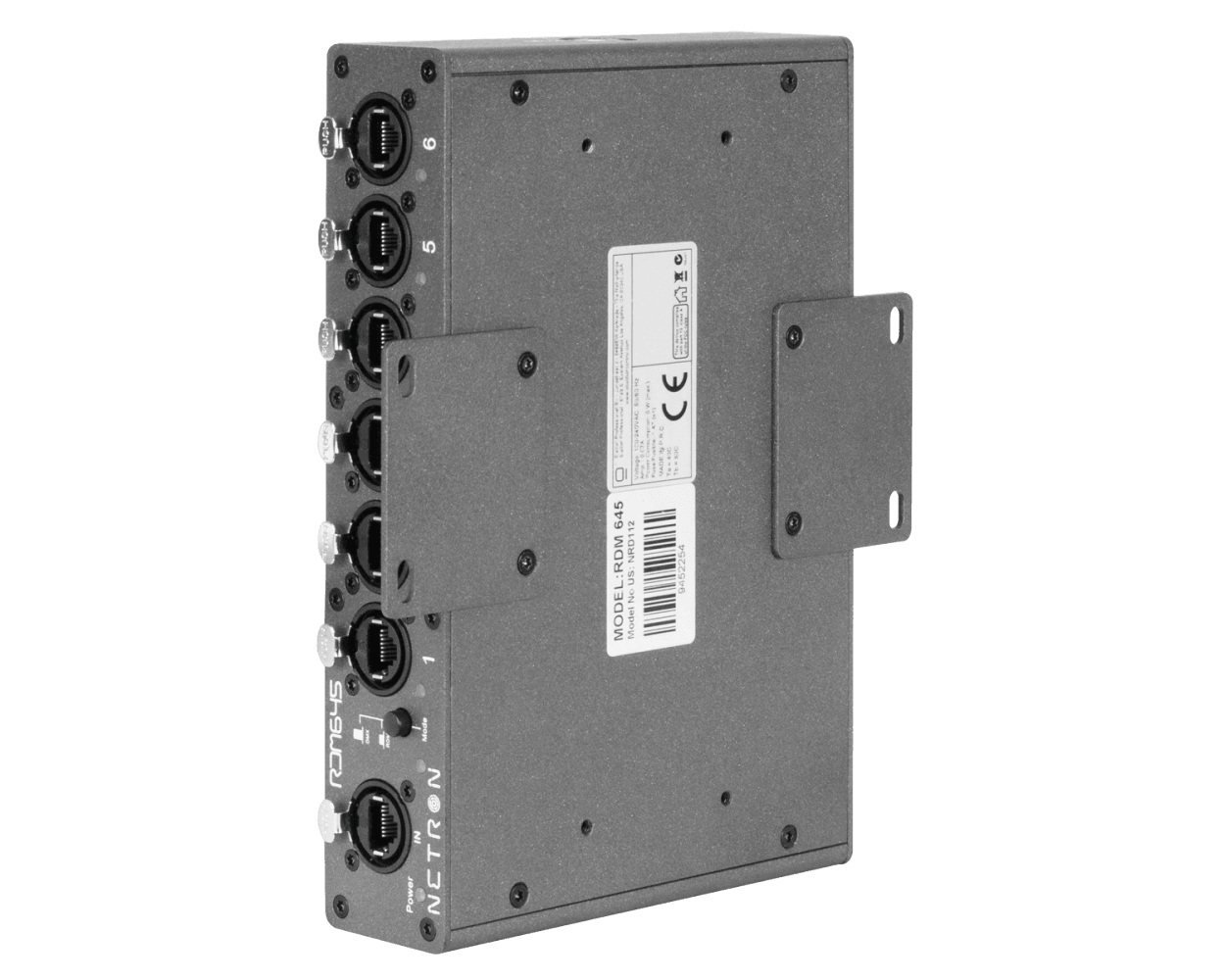

Ω  Wall-mount horizontal or vertical (included)

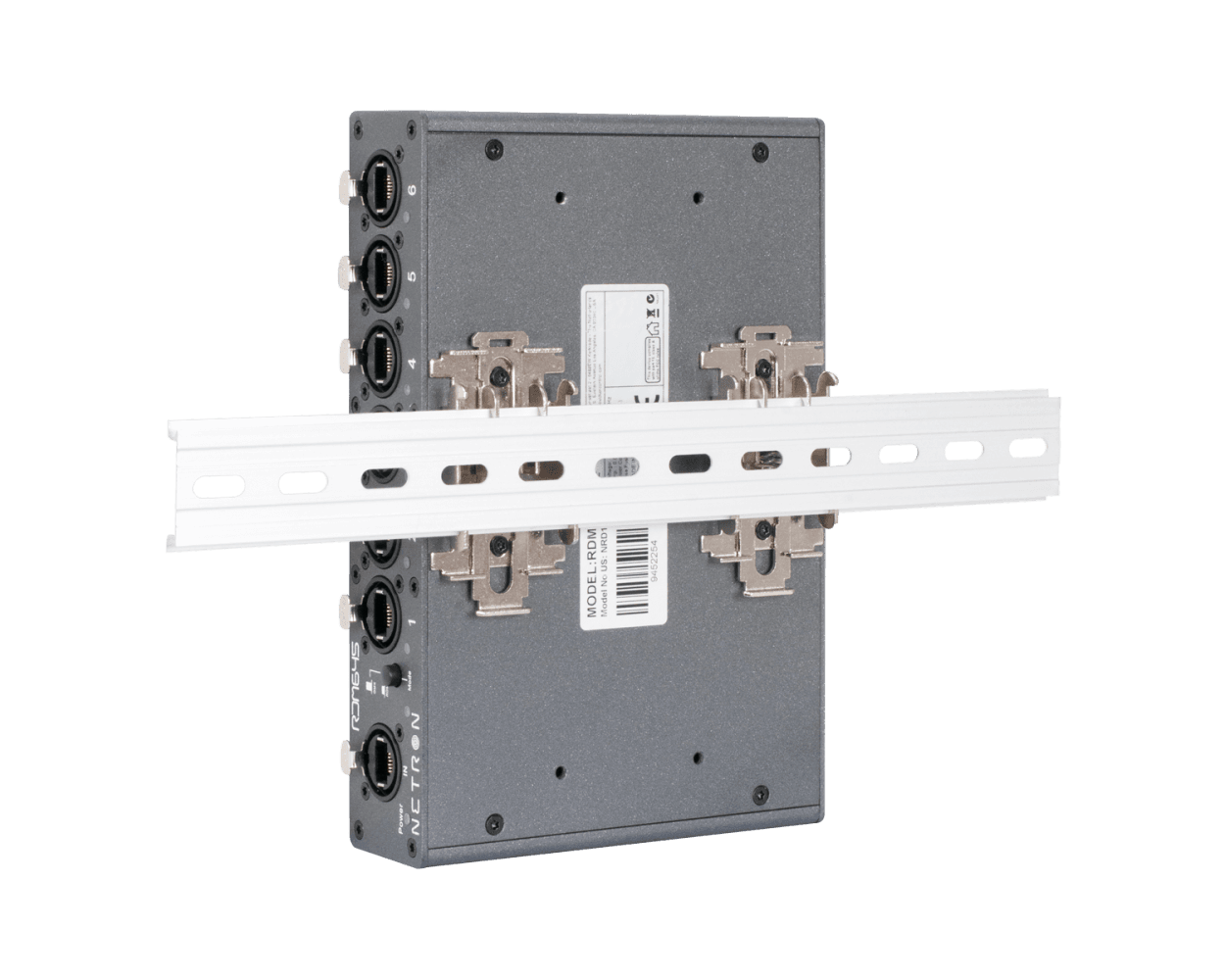

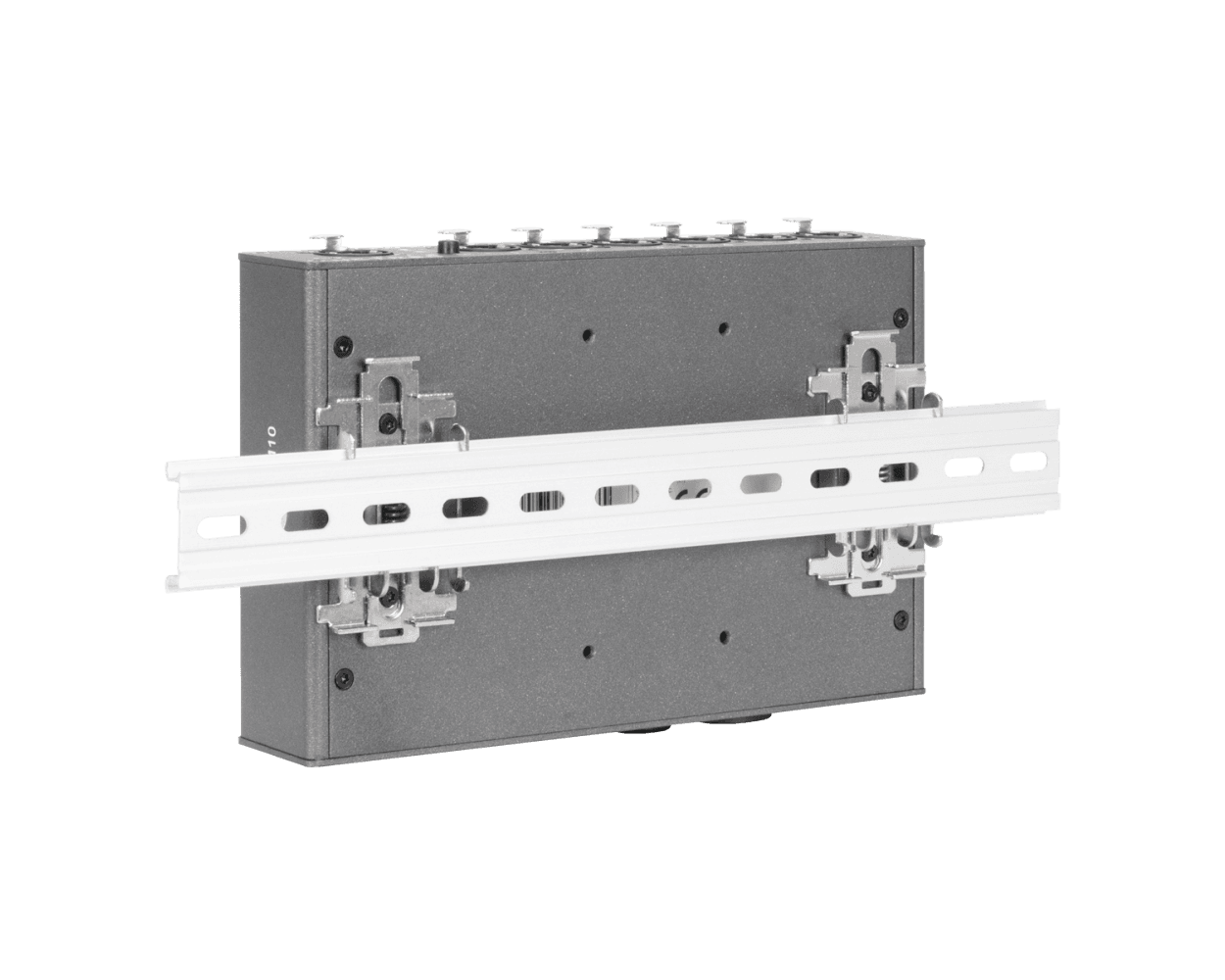

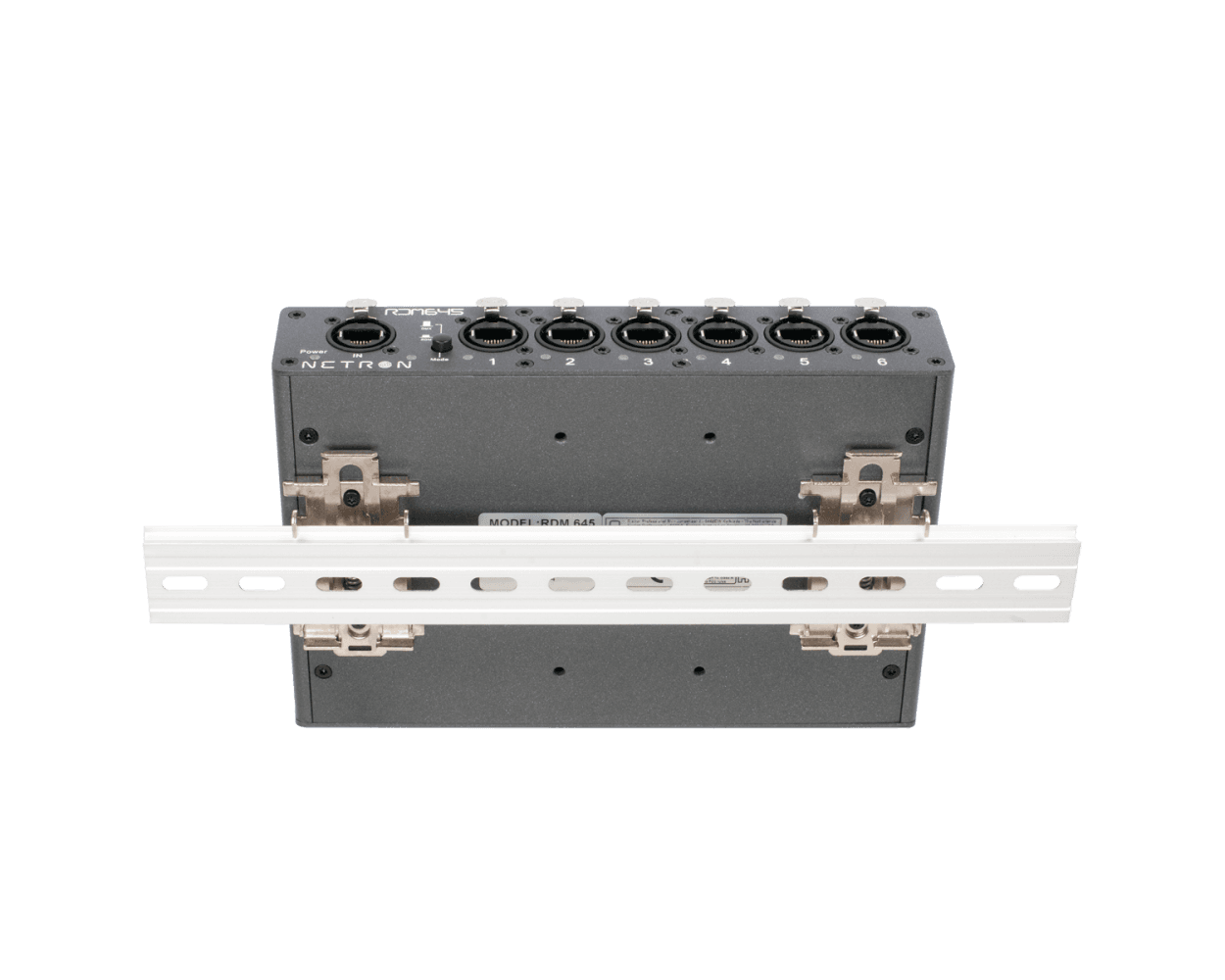

Ω  DIN Rail horizontal or vertical (included)

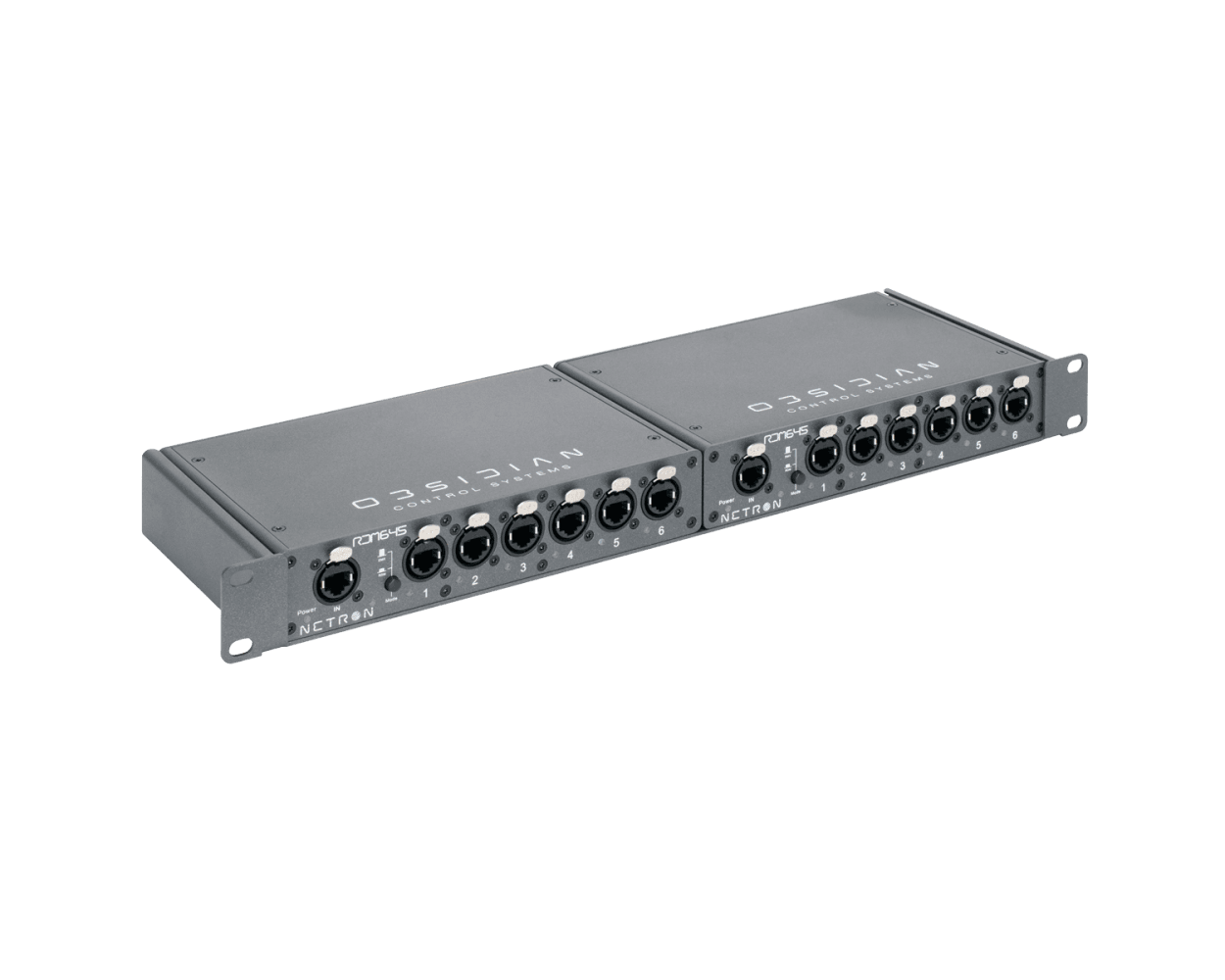

Ω  Rack-mount option (requires NET Shelf)

CONNECTIONS
Ω  Front
   Ω  Locking RJ45 Ethernet DMX Input
   Ω  (6) Locking RJ45 Ethernet Opto-Isolated DMX Outputs
   Ω  RDM Enable

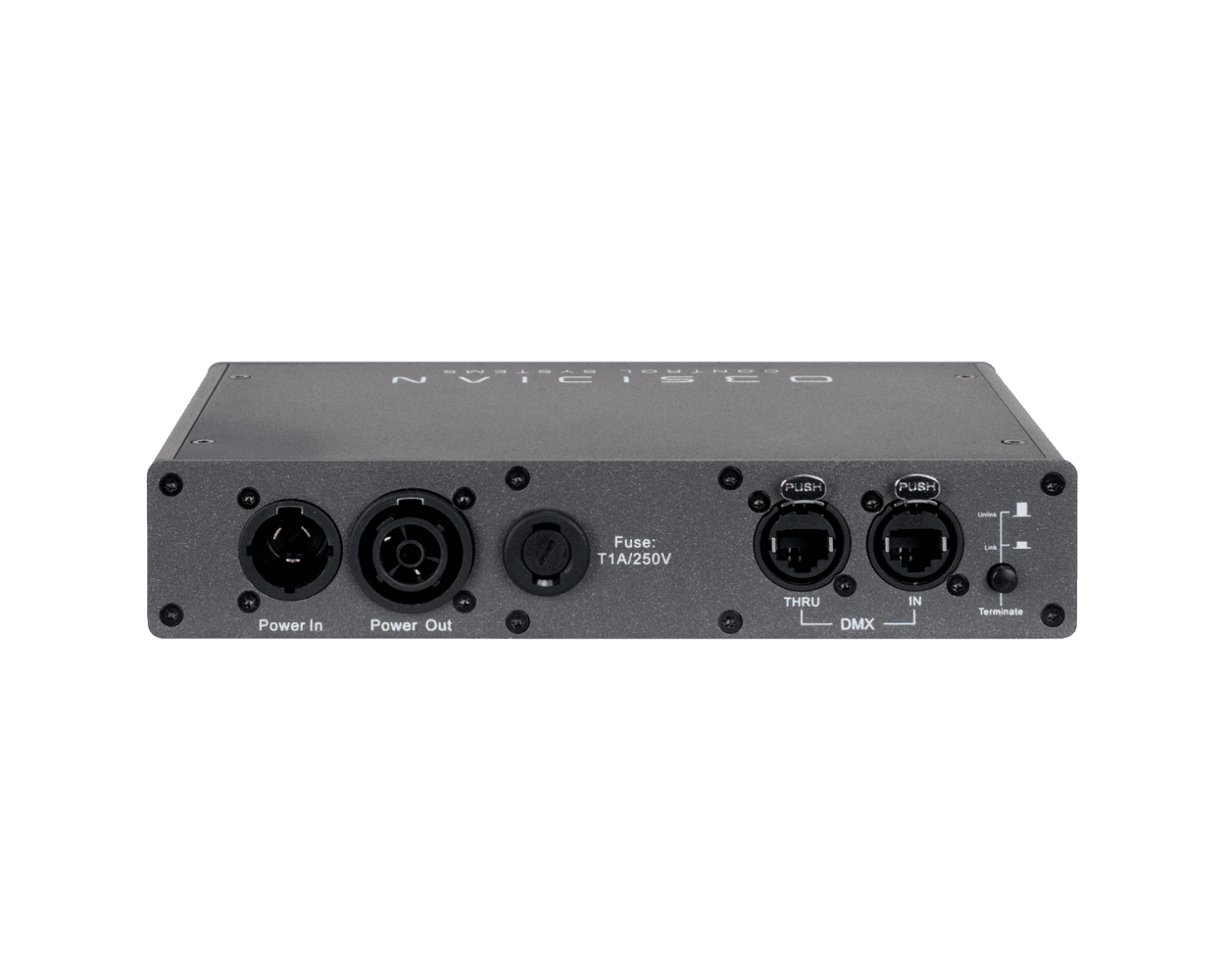

Ω  Back
   Ω  Locking RJ45 Ethernet DMX Input (parallel with front)
   Ω  Locking RJ45 Ethernet DMX Through
   Ω  Terminate
   Ω  Locking Power In/Thru

SPECIFICATIONS
Ω  Height: 42 mm (1 RU)
Ω  Width: 215 mm (Half Rack)
Ω  Depth: 139 mm
Ω  Weight: 1 kg
Ω  100-240 V nominal, 50/60 Hz, 10W

INCLUDED ITEMS
Ω  1.5m Locking power cable
Ω  (2) Wall mount plates
Ω  (2) DIN-Rail clamps

Specification Sheet

Download

Netron-RDM645-Specification-Sheet.pdf

Installation Guide

Download

Netron-RDM645-RDM6XL-Installation-Guide.pdf

NETRON Catalog 2026

Download

Obsidian-Netron-Catalog-2026.pdf

Weight2 kg
