NETRON RDM 6XL

In stock

In stock

Categories: SKU: EL-NRD123

Key Features

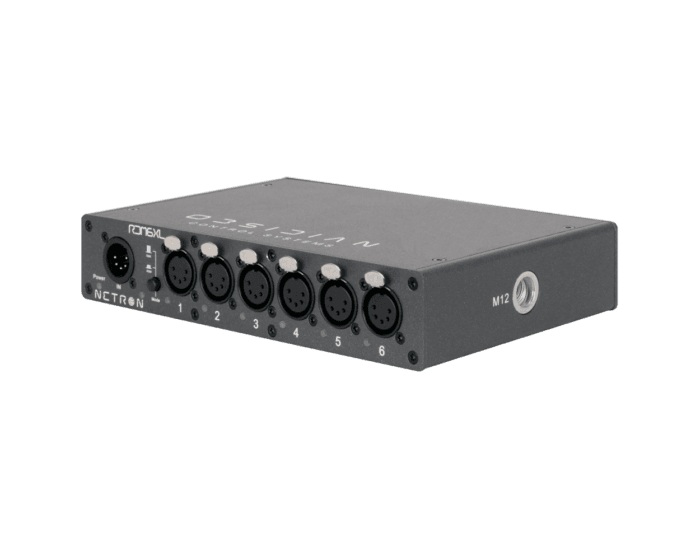

The Netron RDM 6XL is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated 5pin XLR outputs and flexible mounting options to cover any situation.

Ω   (6) XLR 5pin outputs
Ω   DMX and RDM compliant
Ω   Optically isolated ports
Ω   Power / DMX Through connectors
Ω   Powder-coated aluminum ½ rack housing

MOUNTING
Ω   Standalone

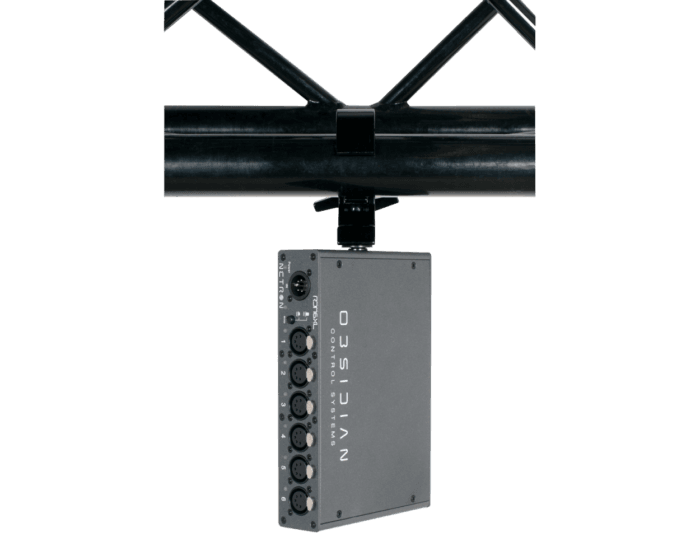

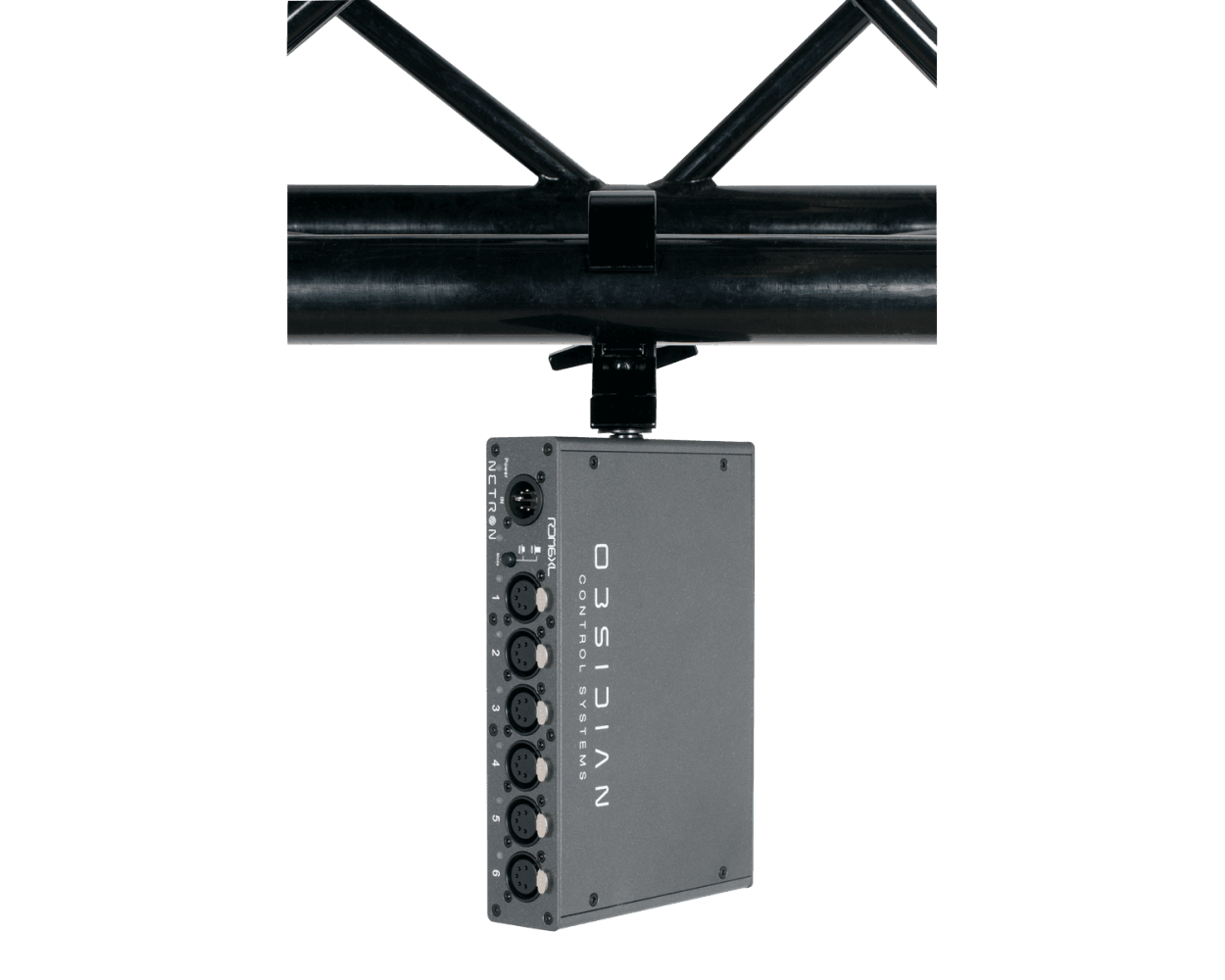

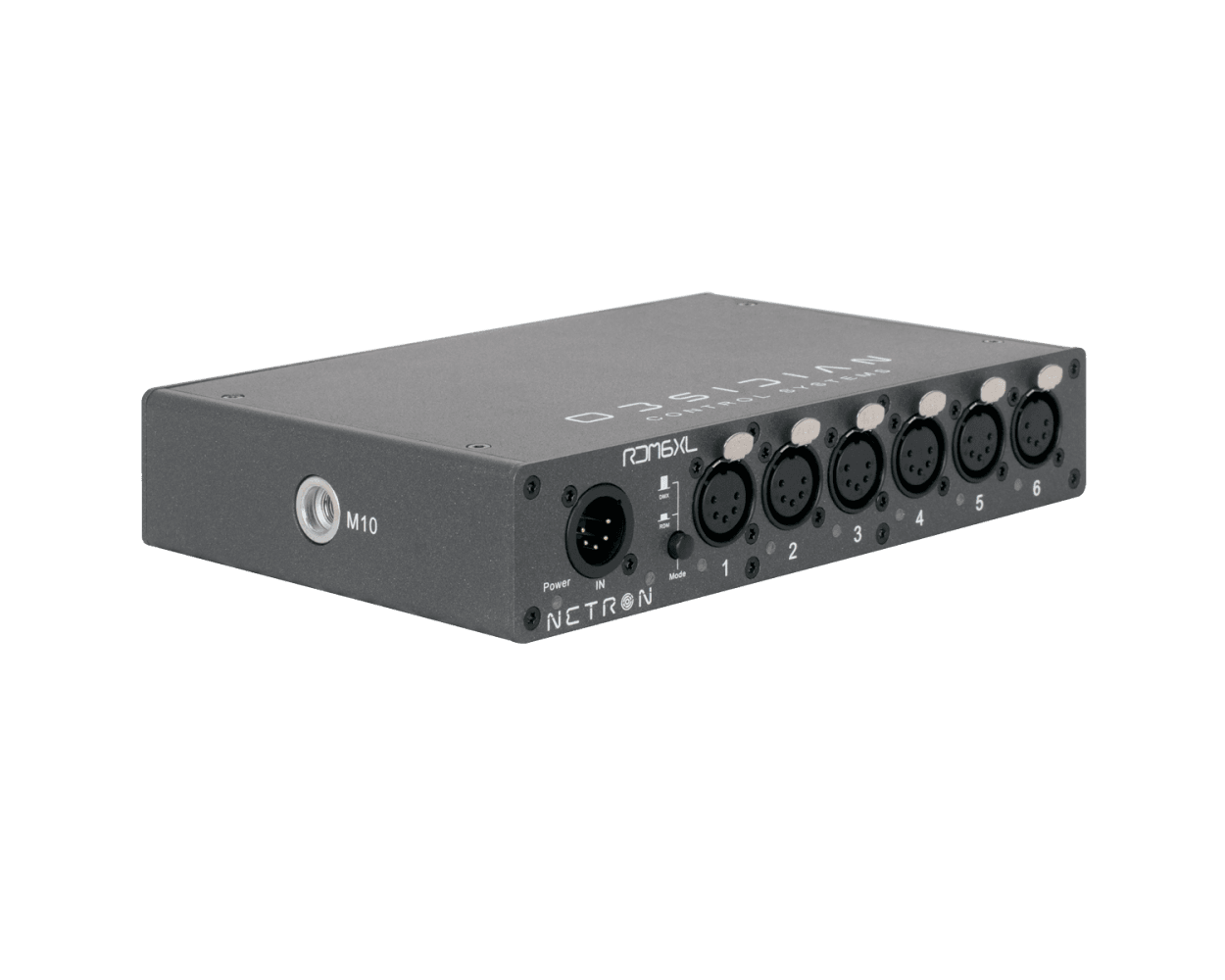

Ω   Truss-mount (M10 or M12 mounting hole)

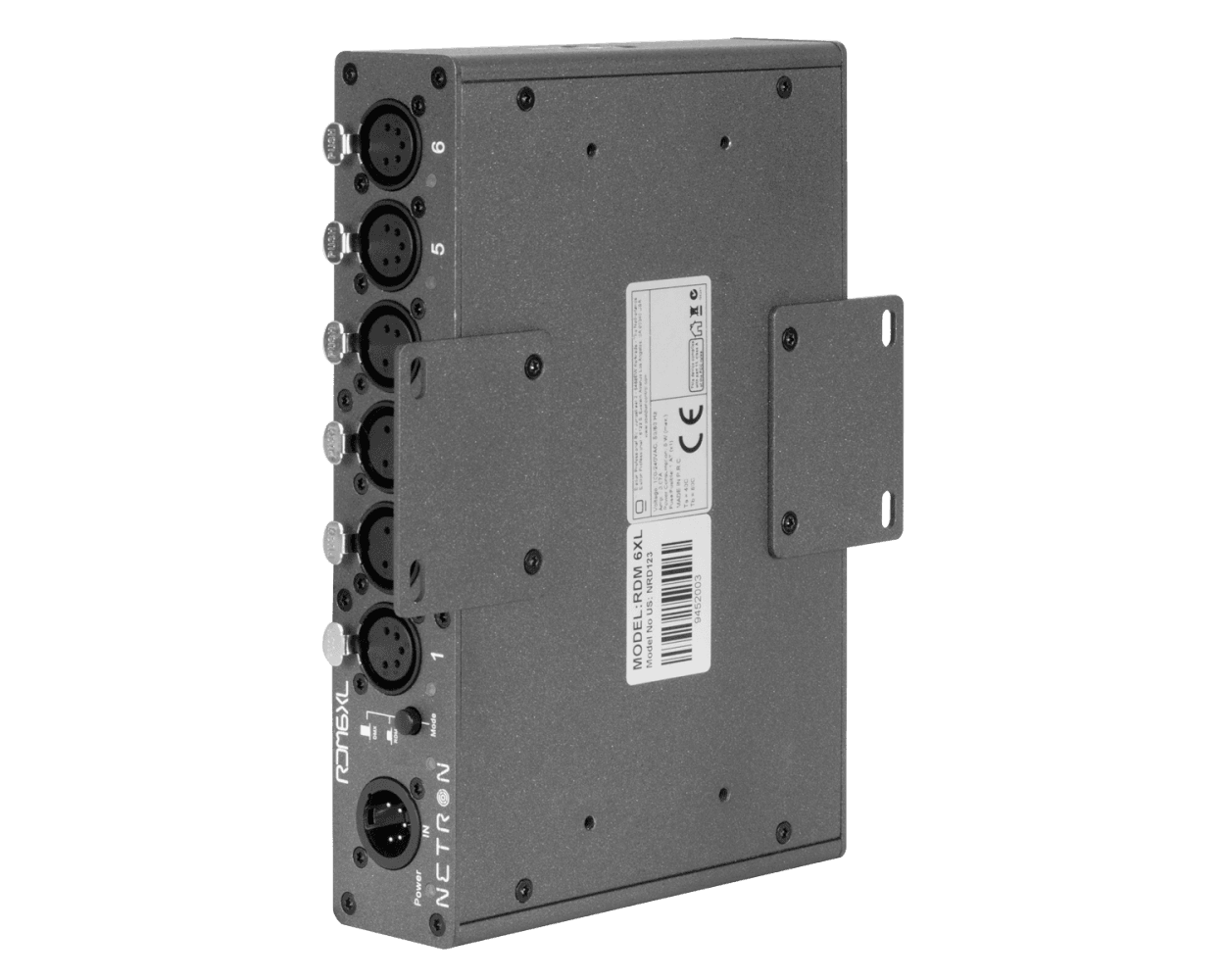

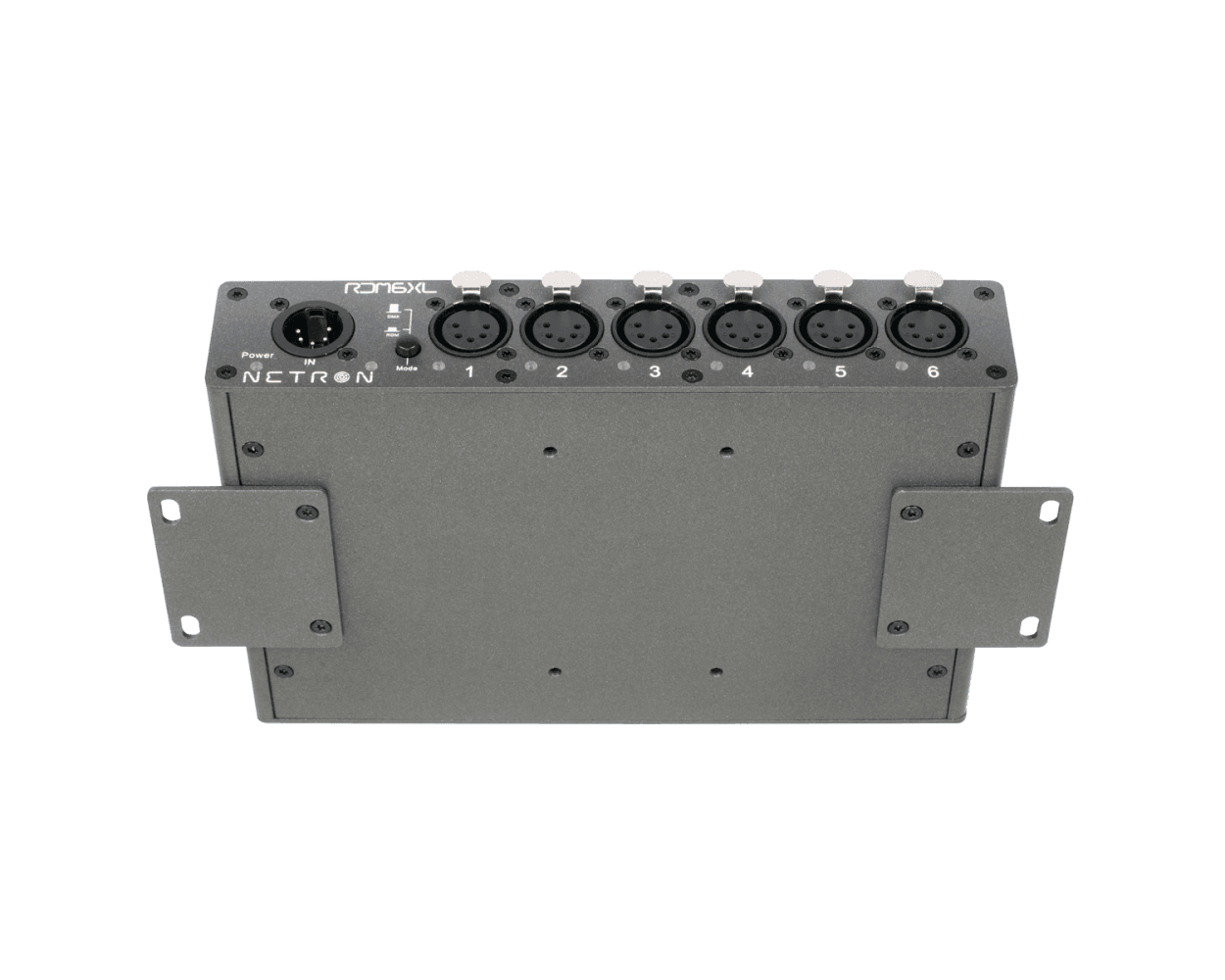

Ω   Wall-mount horizontal or vertical (included)

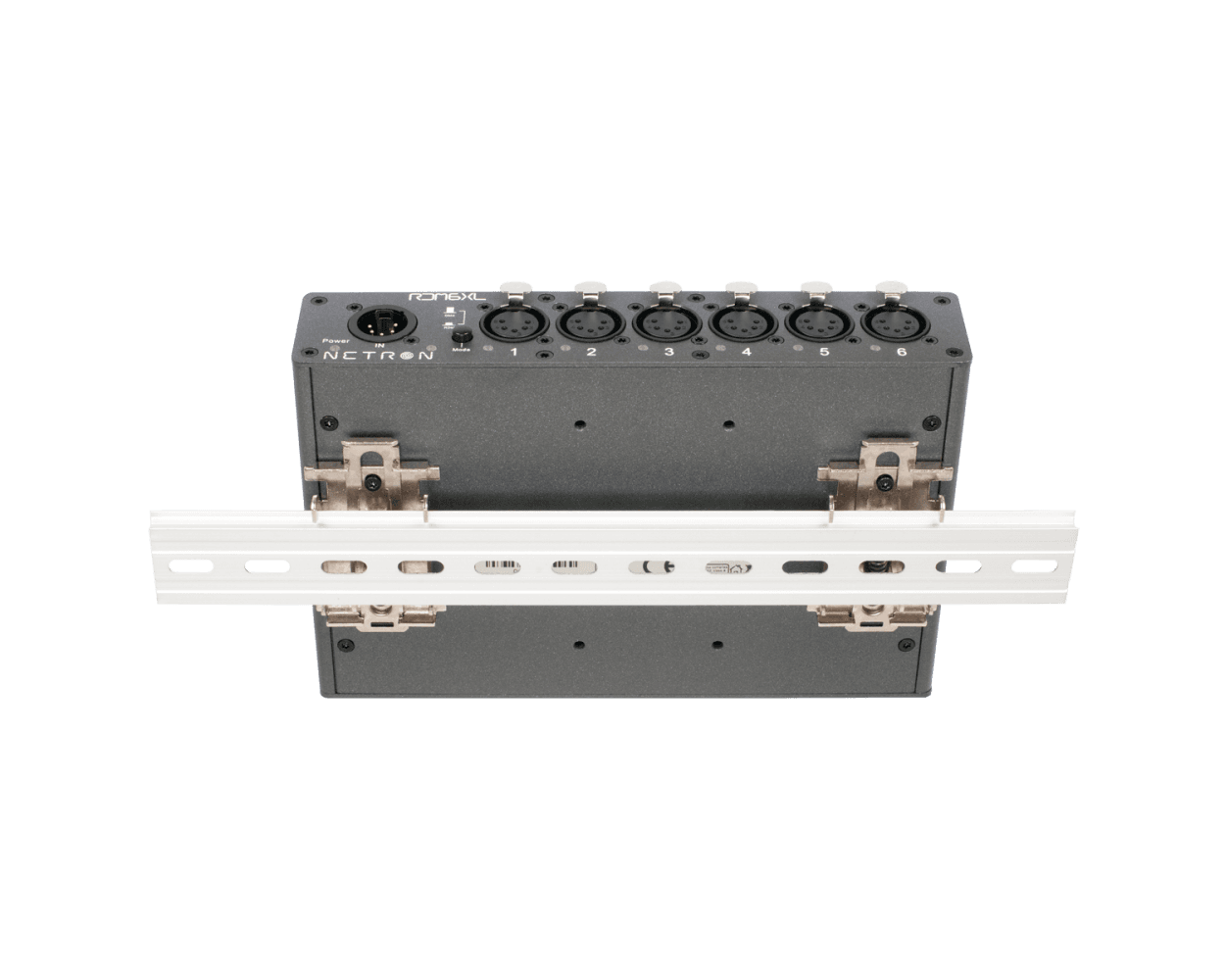

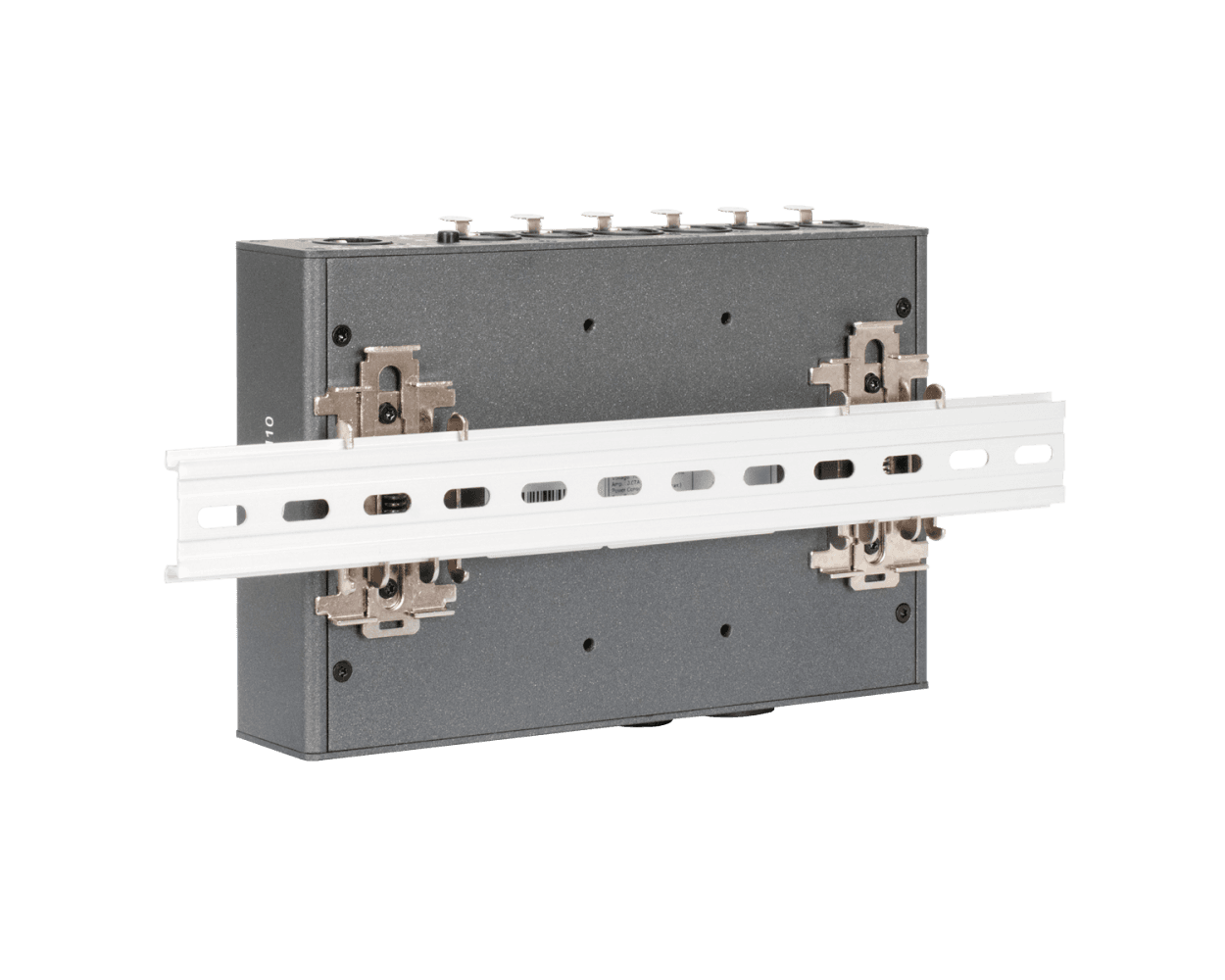

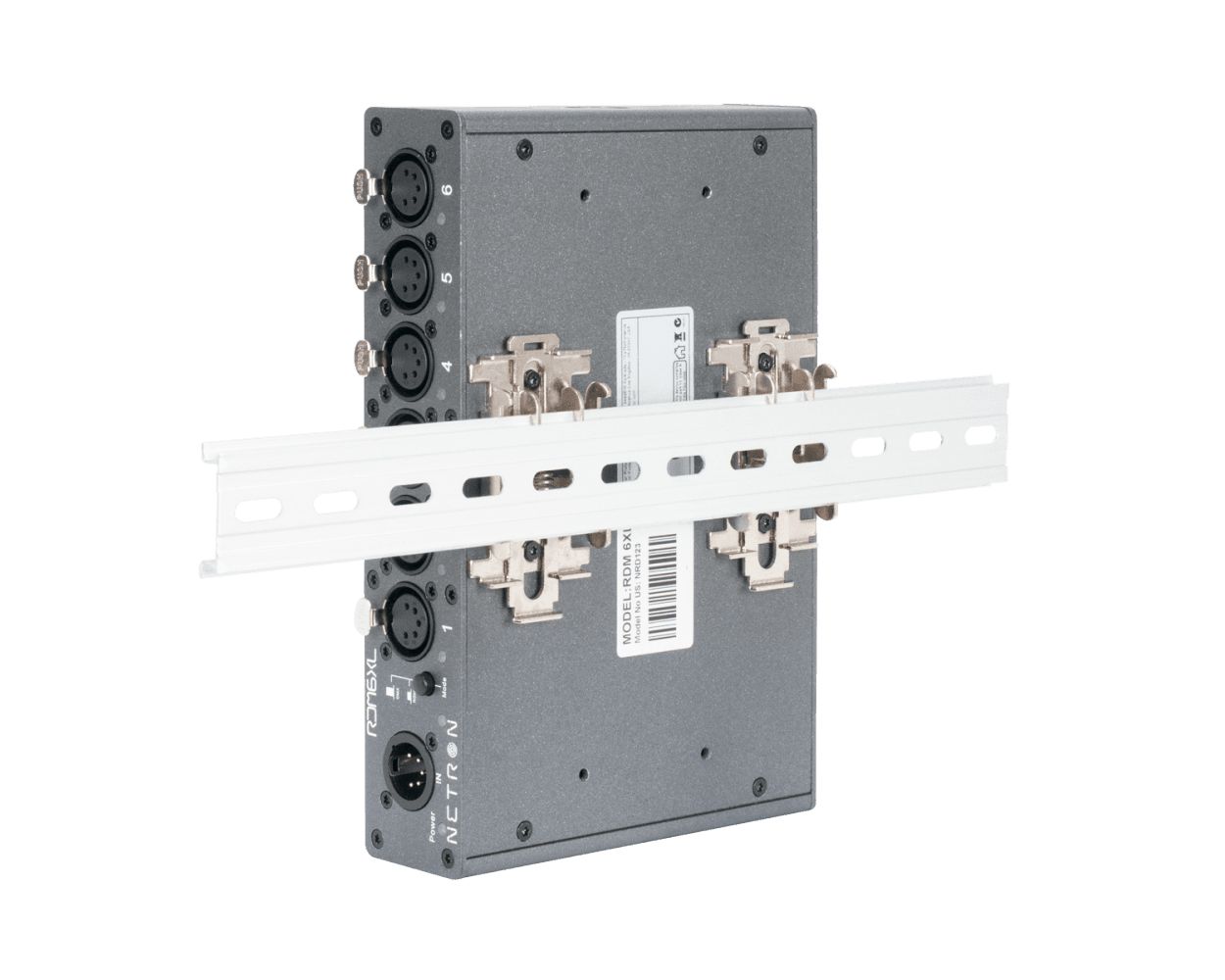

Ω   DIN Rail horizontal or vertical (included)

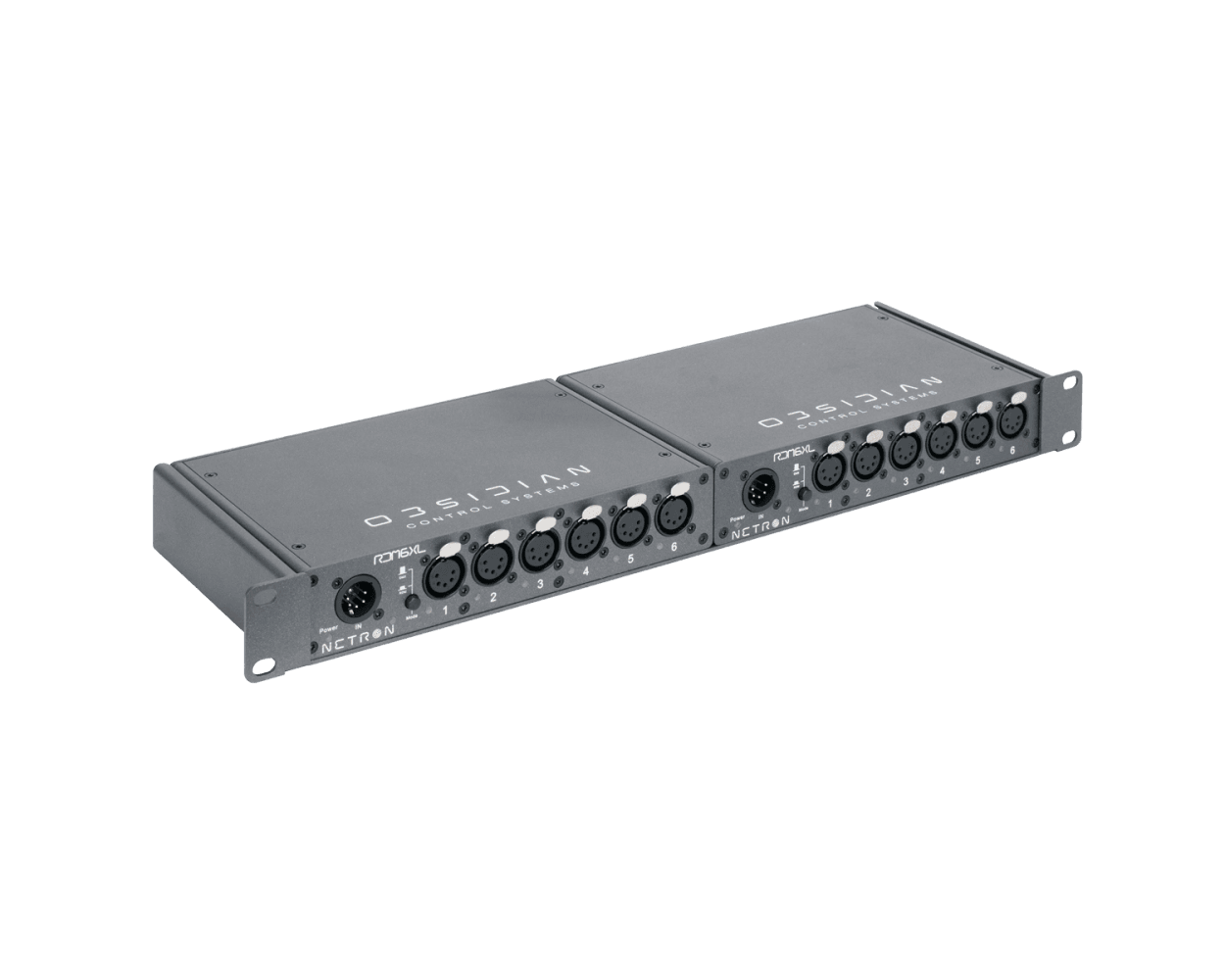

Ω   Rack-mount option (requires NET Shelf)

CONNECTIONS

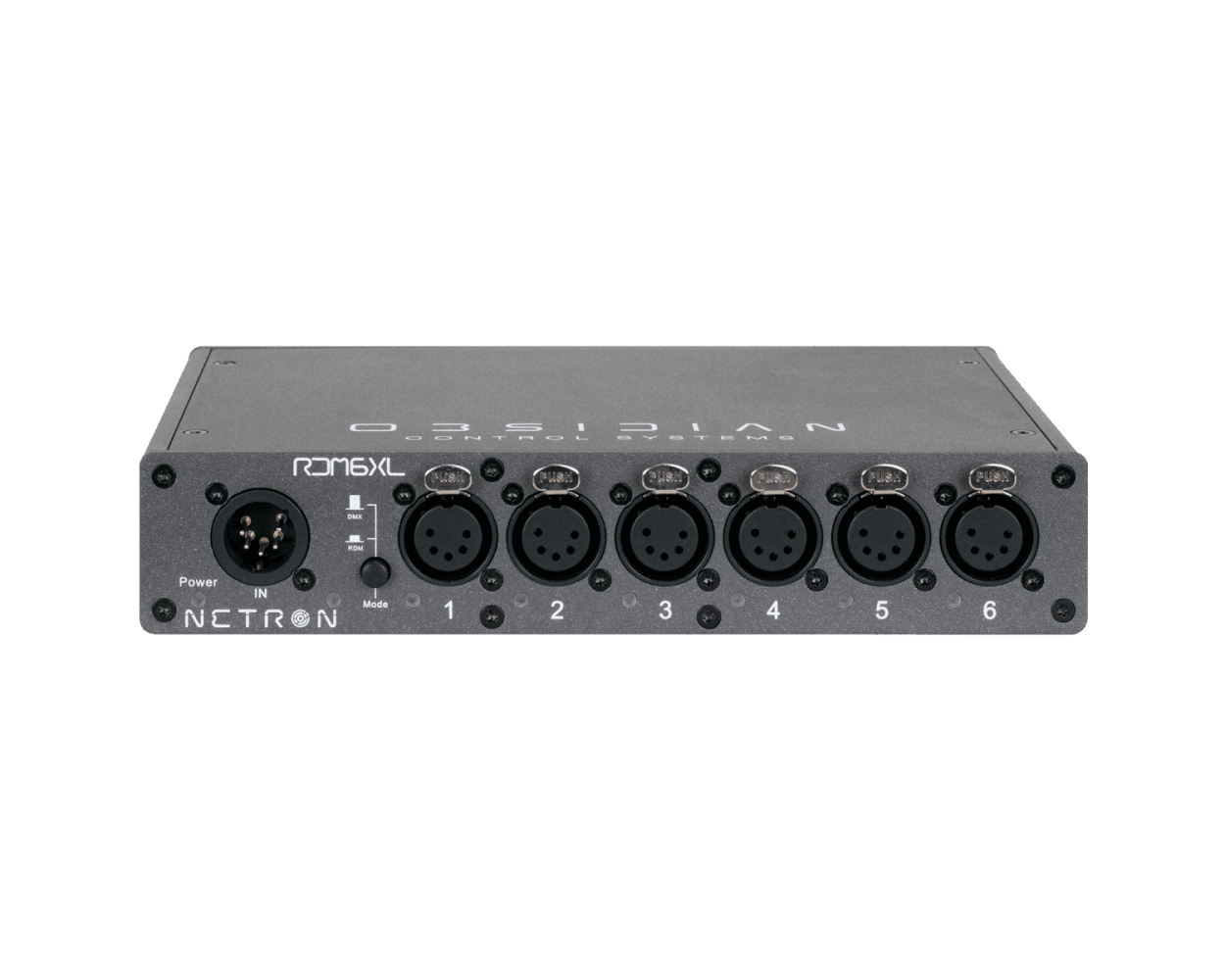

Ω   Front:
   Ω   5pin DMX Input
   Ω   (6) 5pin Opto-Isolated DMX Outputs
   Ω   RDM Enable
Ω   Back:
   Ω   5pin DMX Input (parallel with front)
   Ω   5pin DMX Through
   Ω   Terminate
   Ω   Locking Power In/Thru

SPECIFICATIONS
Ω   Height: 42 mm (1 RU)
Ω   Width: 215 mm (Half Rack)
Ω   Depth: 139 mm
Ω   Weight: 1 kg
Ω   100-240 V nominal, 50/60 Hz, 10W

INCLUDED ITEMS
Ω   1.5m Locking power cable
Ω   (2) Wall mount plates
Ω   (2) DIN-Rail clamps

Specification Sheet

Download

Netron-RDM6XL-Specification-Sheet.pdf

Installation Guide

Download

Netron-RDM645-RDM6XL-Installation-Guide.pdf

Video: Unboxing the Netron RDM6XL

Download

Chalky unboxes a new RDM6XL! One of his favorite tools for optimizing data distribution on set.

NETRON Catalog 2026

Download

Obsidian-Netron-Catalog-2026.pdf
