NETRON RDM6 IP

In stock

In stock

Categories: SKU: EL-NIP101

Key Features

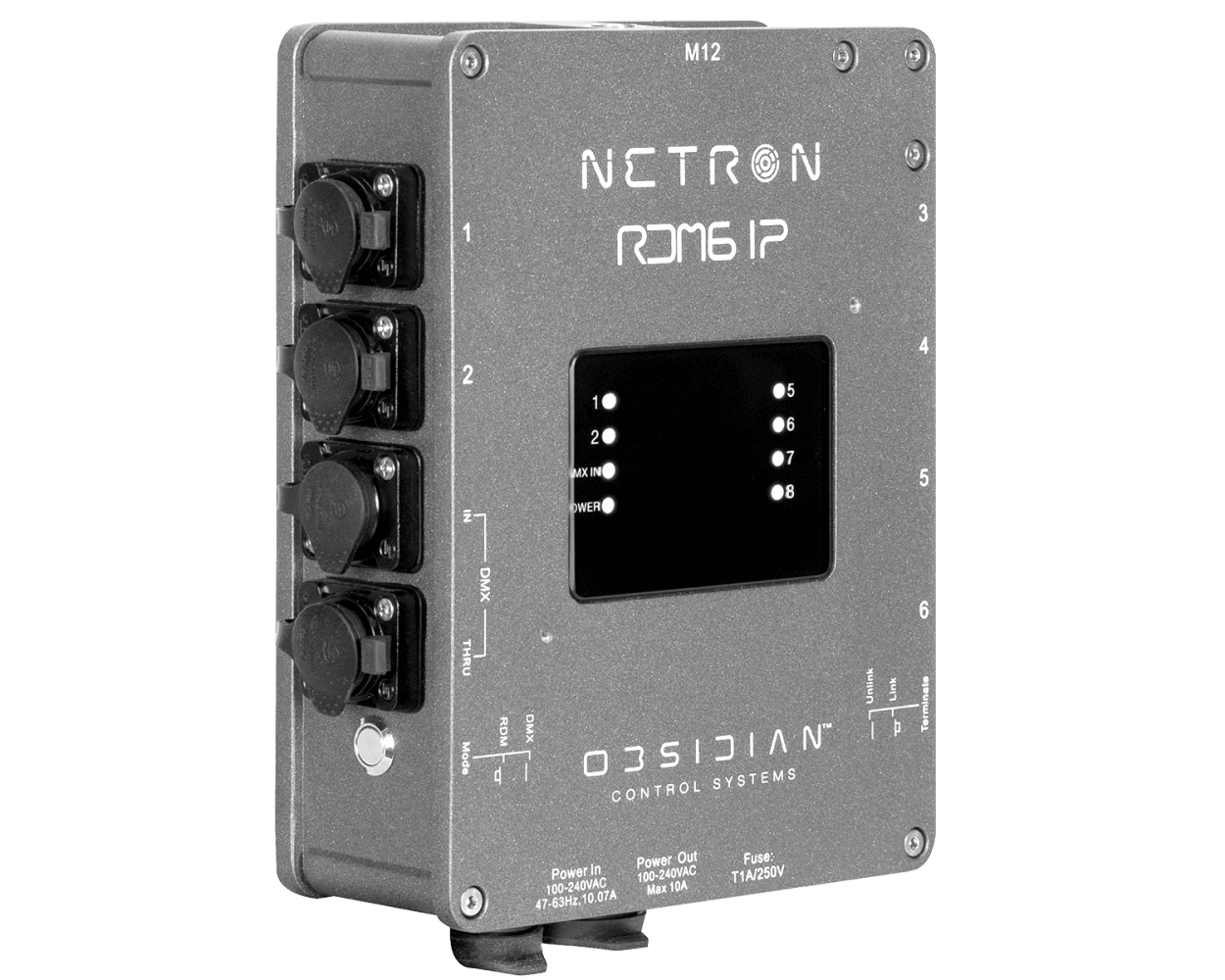

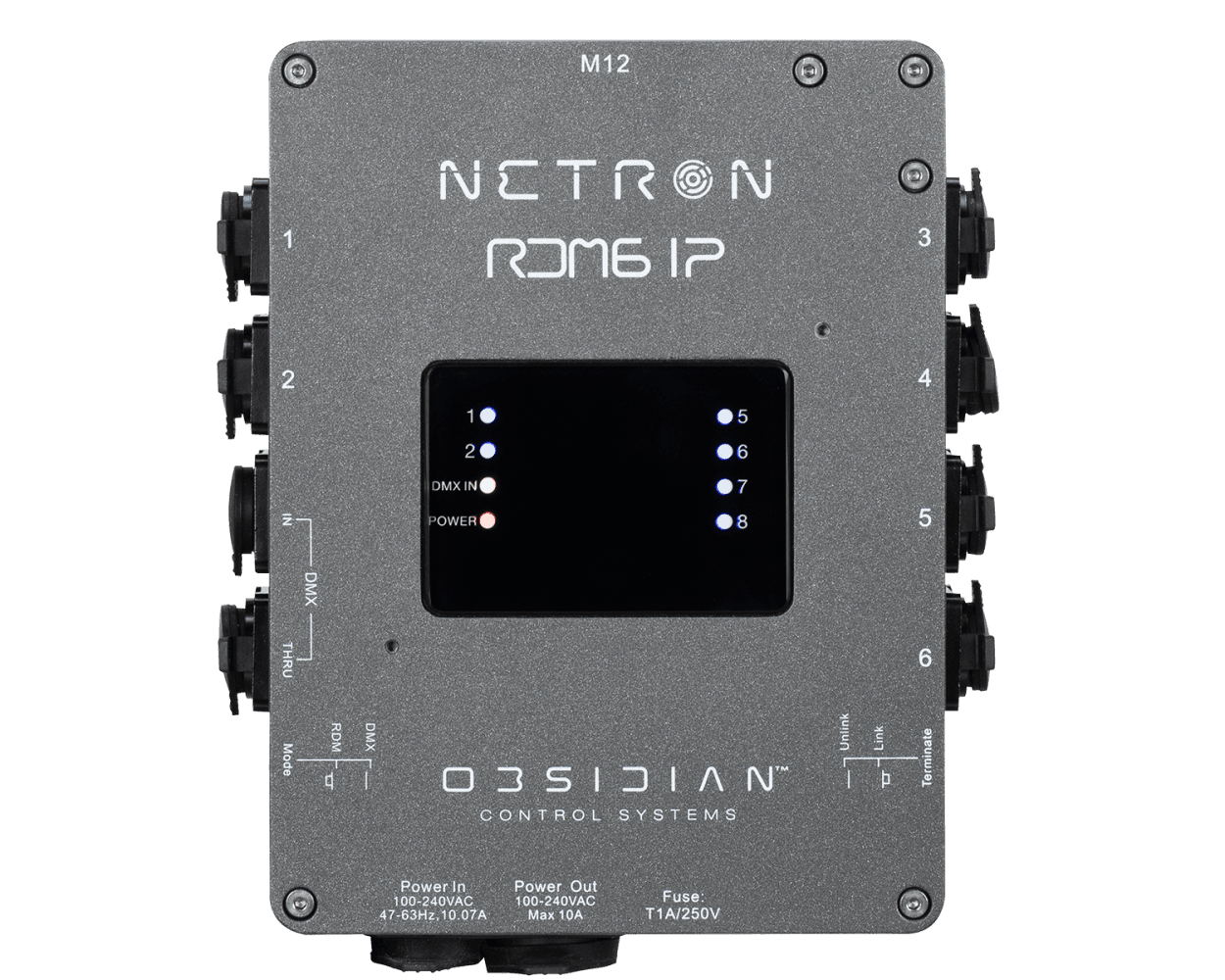

The Netron RDM6 IP is a six port DMX/RDM splitter in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.

Ω   IP66 DMX Data Splitter
Ω   (6) XLR 5pin outputs
Ω   DMX and RDM compliant
Ω   Optically isolated ports
Ω   Power / DMX Thru connectors
Ω   Powder-coated aluminum chassis

MOUNTING
Ω   Standalone
Ω   Truss-mount (M10 or M12)
Ω   Wall-mount

CONNECTIONS

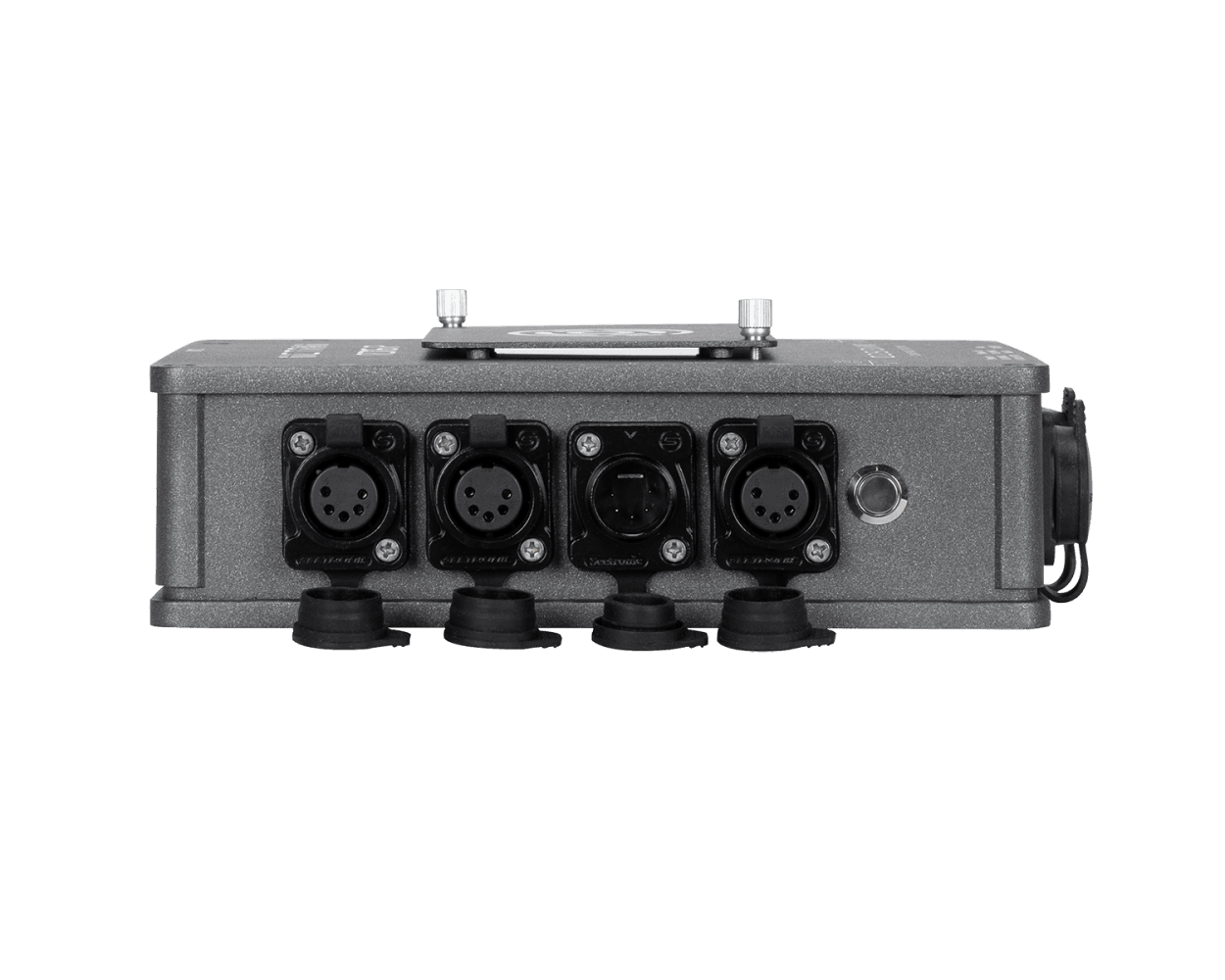

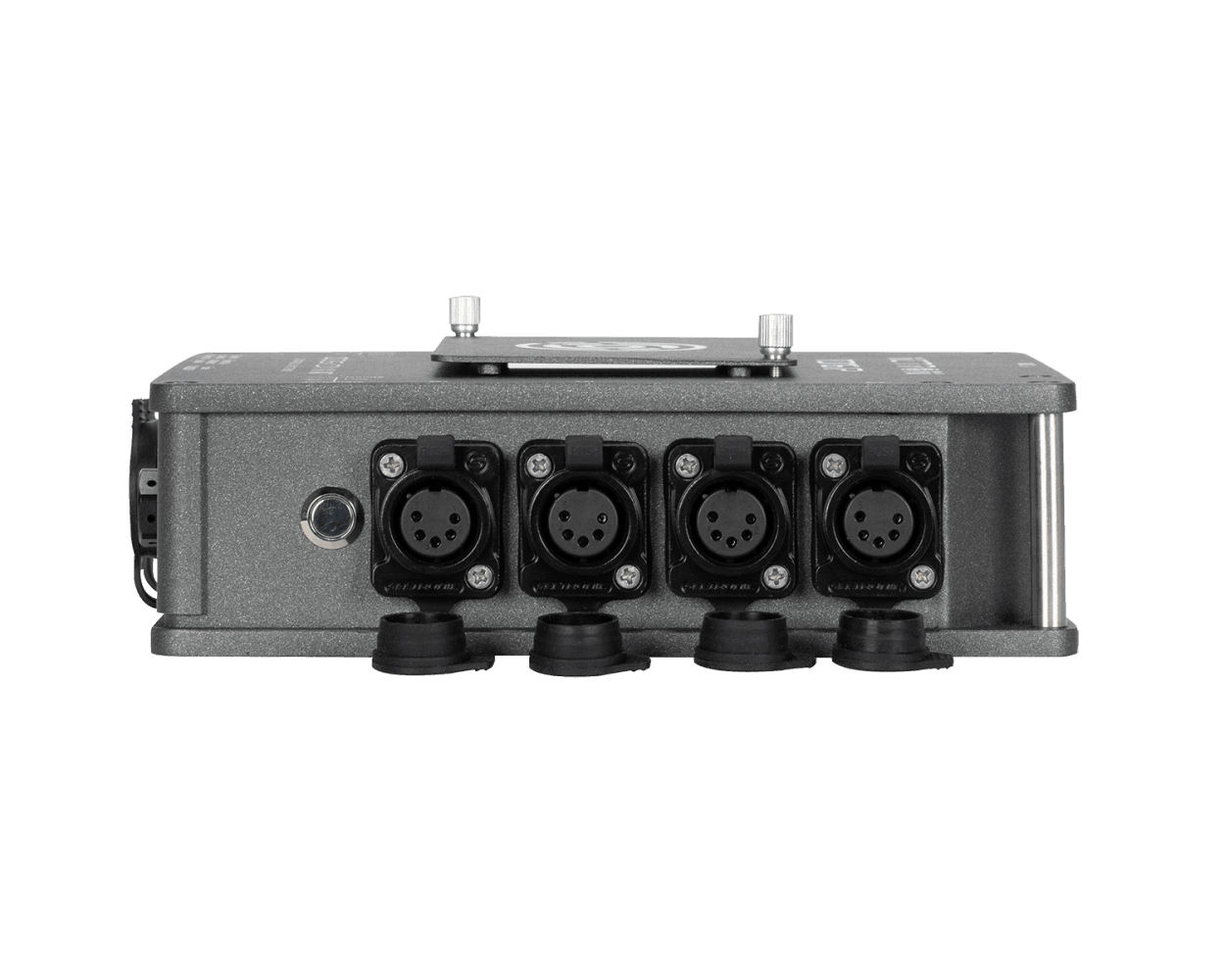

Ω   Sides
   Ω    (1) 5pin IP66 DMX In
   Ω    (1) 5pin IP66 DMX Thru
   Ω    (6) 5pin IP66 DMX/RDM optically isolated ports
   Ω    DMX Termination Button
   Ω    RDM Enable / Disable Button

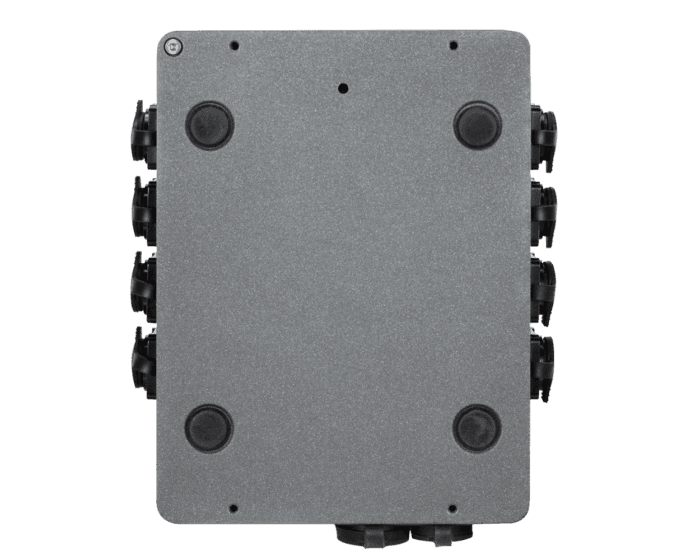

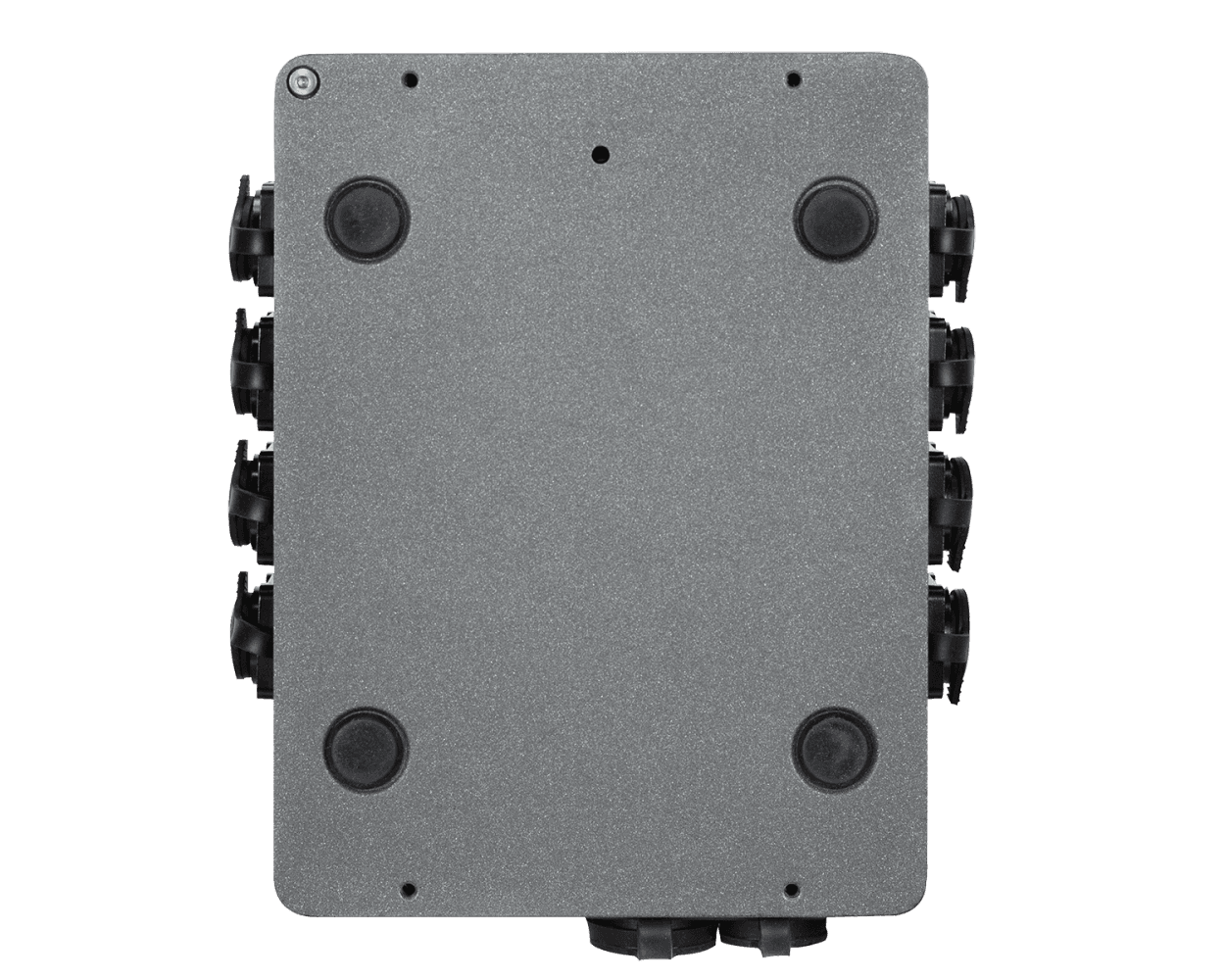

Ω   Bottom

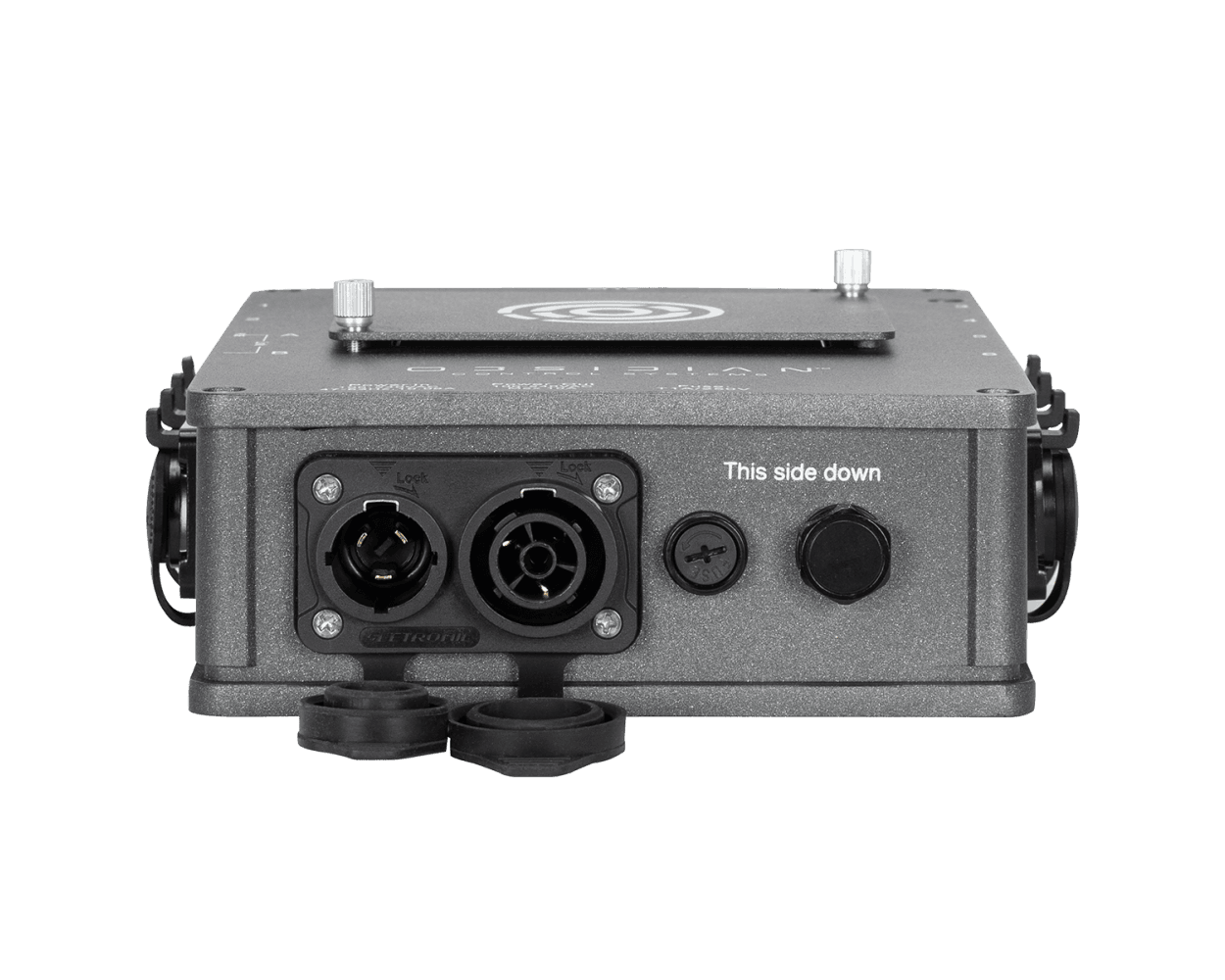

   Ω    Locking IP66 Power In/Thru

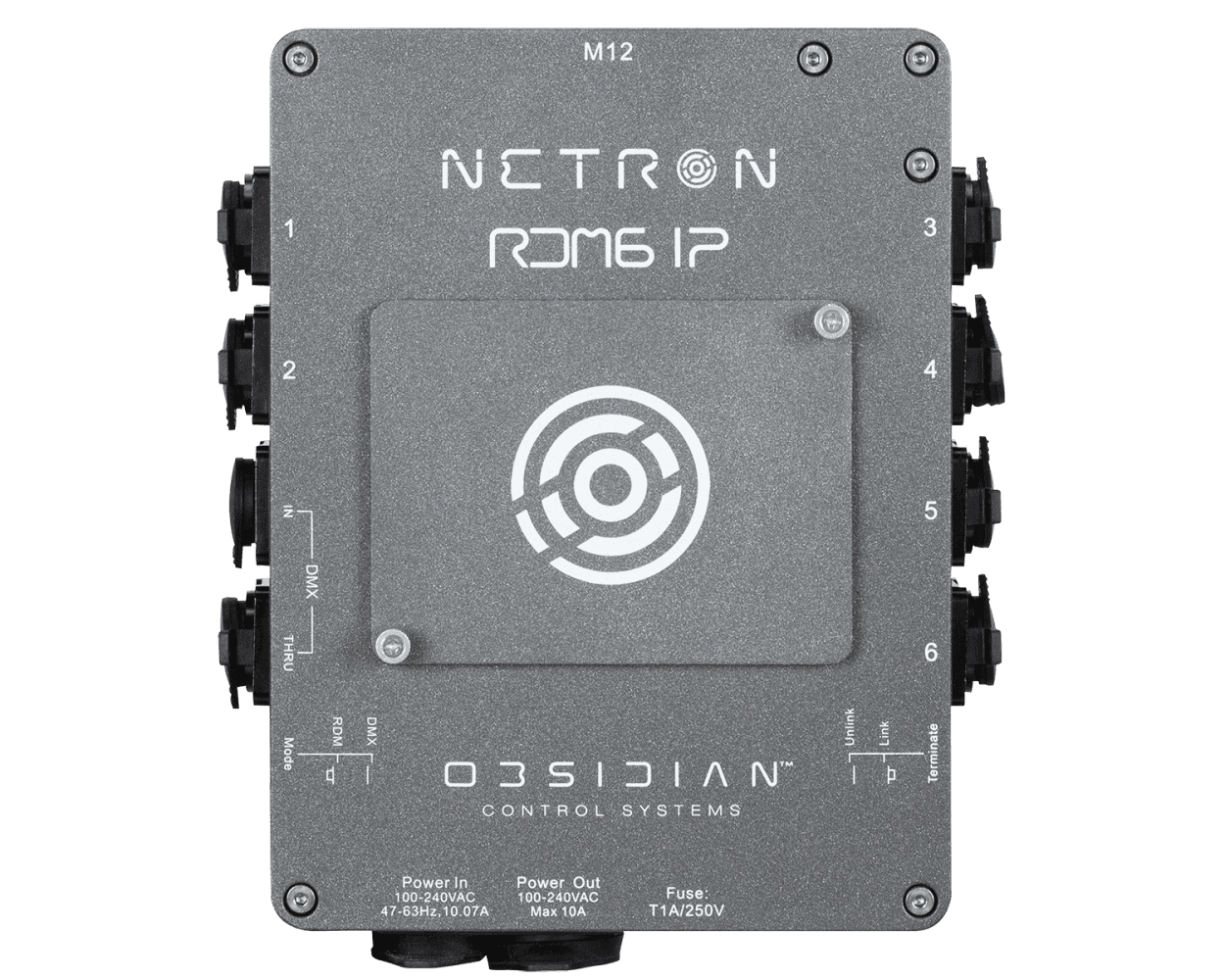

Ω   Front
   Ω    LED Port Feedback

SPECIFICATIONS
Ω   Length: 204mm
Ω   Width: 179mm
Ω   Height: 61mm
Ω   Weight: 2 kg
Ω   100-240 V nominal, 50/60 Hz, 5W

INCLUDED ITEMS
Ω   1.5m IP65 locking power cable
Ω   (2) Wallmount brackets
Ω   M10 to M12 adapter
Ω   Metal display protection cover

Specification Sheet

Download

Netron-RDM6-IP-Specification-Sheet.pdf

Installation Guide

Download

Netron-RDM6-IP-Installation-Guide.pdf

NETRON Catalog 2026

Download

Obsidian-Netron-Catalog-2026.pdf

Weight2 kg

Related Products

  • NETRON RDM6D

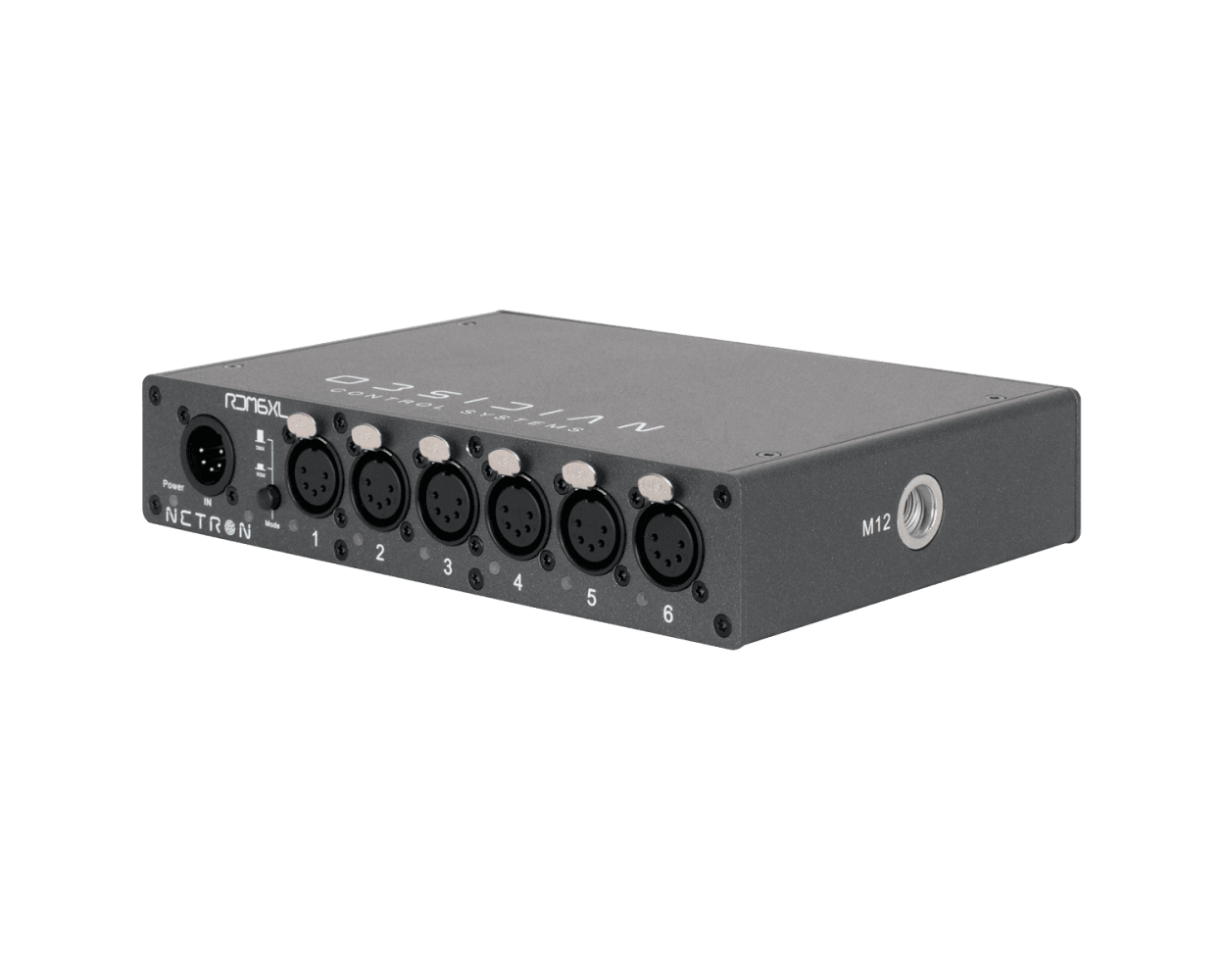

  • NETRON RDM 6XL

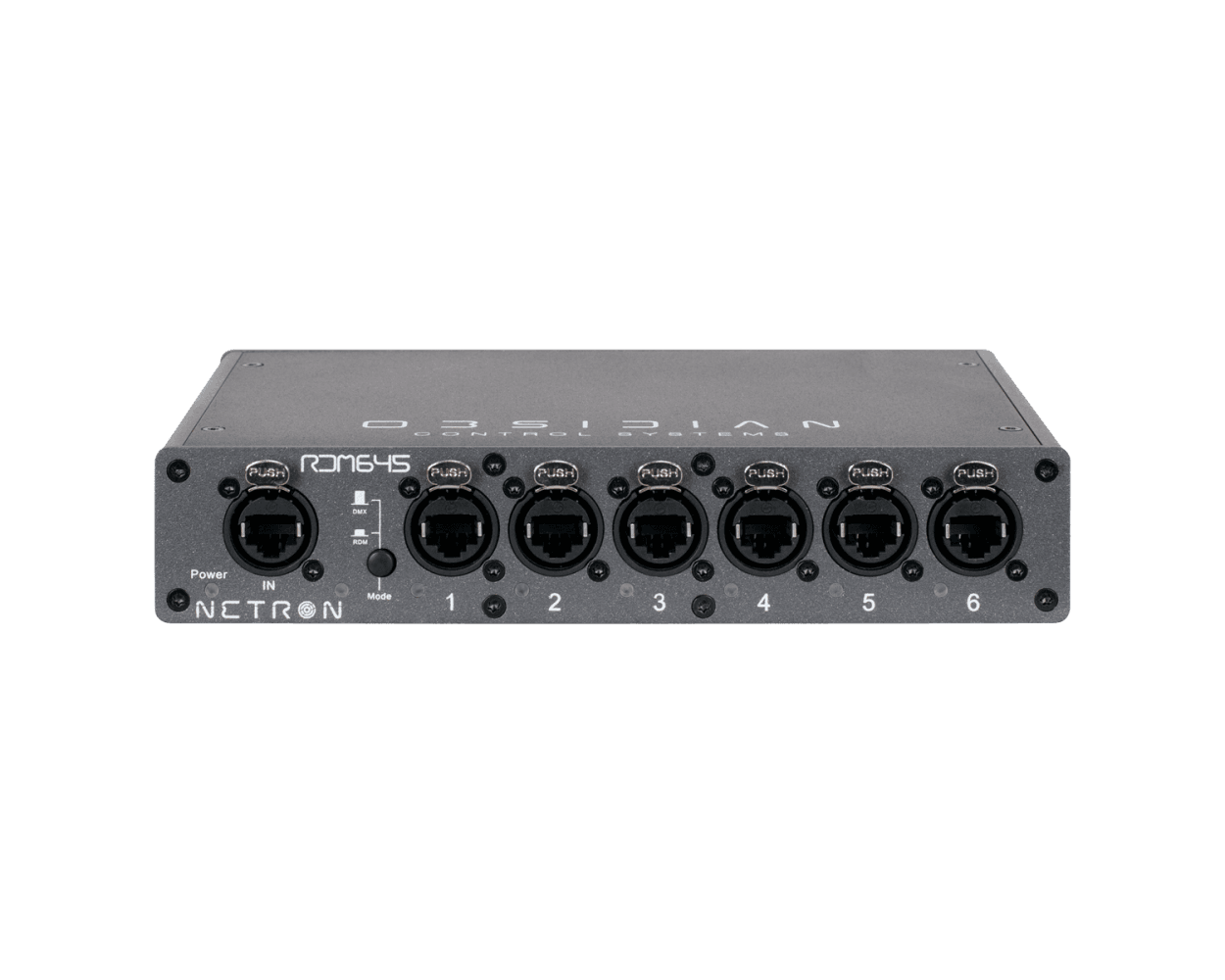

  • NETRON RDM 645
